Overview

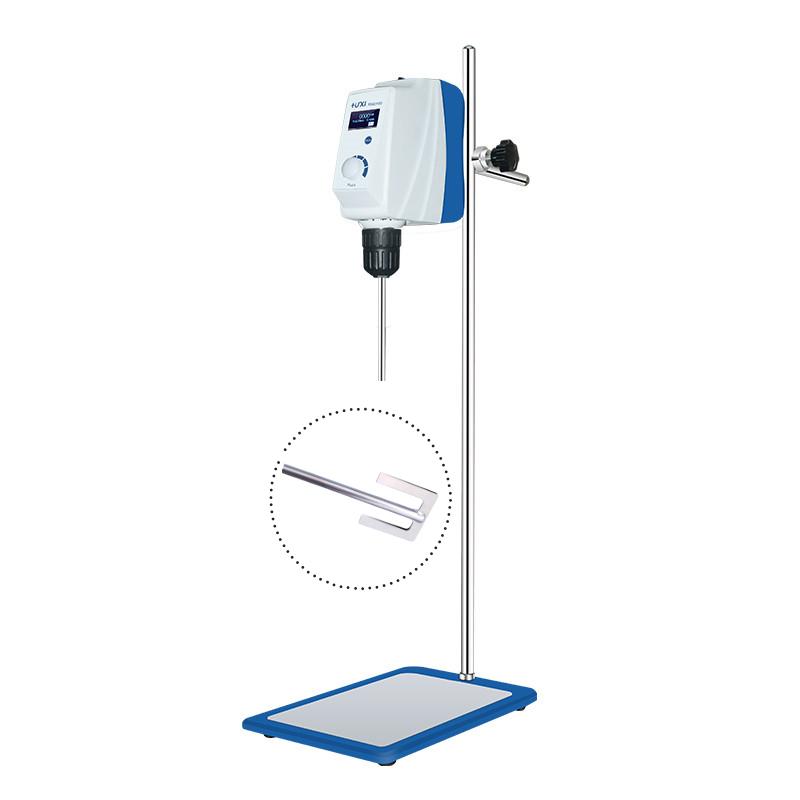

HUXI LCD Stirrer is a high-end laboratory equipment suitable for mixing medium and high viscosity liquids. It is designed with self-locking chuck and self-developed Cube lifting and fixing clip. The product is capable of high load and long-term continuous work, and has automatic protection function for overload and abnormal conditions to ensure laboratory safety.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, automatically cut off the circuit and alarm if there is an abnormal situation
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the change of sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity of the sample to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Impeller fixed by self-locking chuck
3. Rotation speed and Working time
4. Start the equipment for mixing operation
5. Monitor the operating status and adjust parameters if necessary
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained between 5-40 ℃
• relative humidity should not exceed 80%
• Pay attention to the safety of the chuck protective cover and non-slip pad
• The device will automatically stop and alarm when there is an overload or abnormality
• Do not use under conditions exceeding the maximum viscosity of 50000mPa · s
