Overview

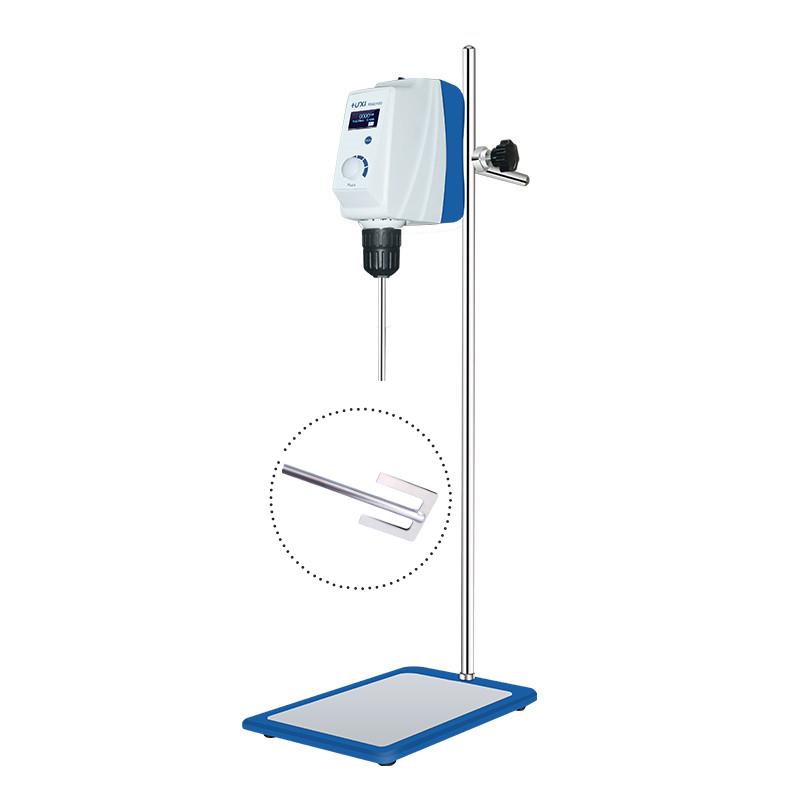

HUXI LCD overhead Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting fixed clip design. The product is capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be roughly adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. With overload and motor protection functions, the circuit is automatically cut off and alarmed in abnormal cases
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin through a DC brushless motor to realize the mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. With stepless speed regulation, the Rotation speed can be precisely controlled according to the experimental requirements, and the torque can automatically adapt to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller Type and Size
2. Install the Impeller into the self-locking chuck
3. Rotation speed and Working time set by LCD screen
4. Start the equipment and start the mixing operation
5. Working time can be fine-tuned as needed during the working process
6. Turn off the equipment after mixing
Notice
• Power supply voltage within 100-240VAC range before use
• Ensure that the Ambient Temperature is between 5-40 ° C and the relative humidity does not exceed 80%
• Impeller should be firmly fixed when installing
• The device will automatically stop and alarm when there is an overload or abnormal situation
• Do not use under conditions exceeding the maximum viscosity of 50000mPa · s
• Pay attention to the safety of the chuck protective cover and non-slip pad
• Regularly check the operating status of the equipment to ensure that the Safety protection function is normal
