Overview

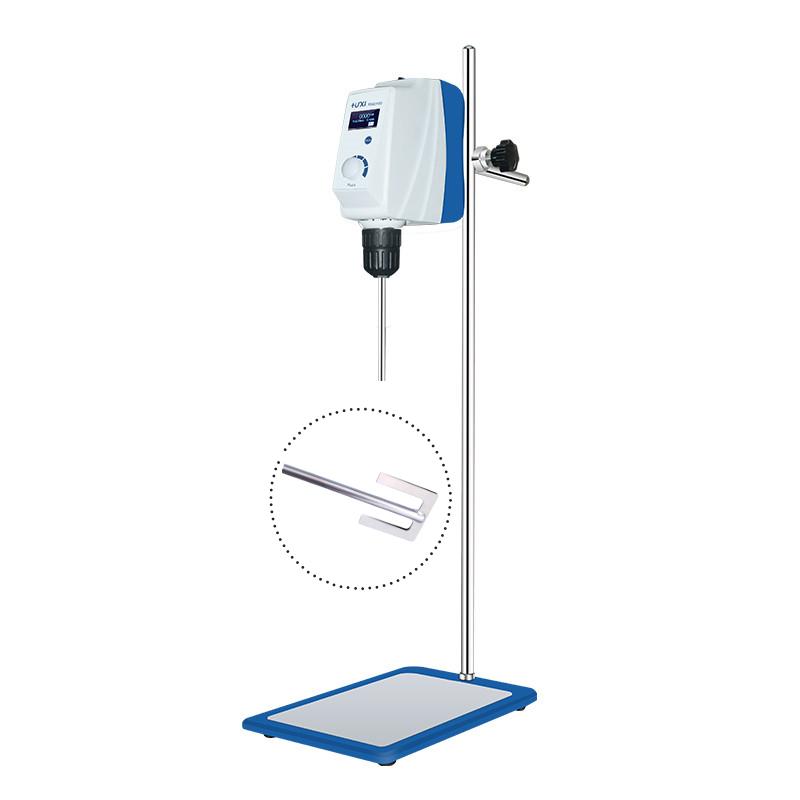

HUXI LCD top-mounted Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. It adopts self-locking chuck and self-developed Cube lifting and fixing clip design. The product is capable of high load and long-term continuous work, and has the automatic protection function of overload and abnormal conditions to ensure laboratory safety. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure Impeller penetration hole, no need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The Stirrer drives the Impeller swirl/spin with a brushless DC motor to mix solid-liquid, liquid-liquid or medium to high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the change of sample viscosity to ensure the mixing effect.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Choose the Right Impeller
2. Install Impeller to Self-locking Chuck
3. Rotation speed and Working time set by LCD screen
4. Start Stirrer for mixing operations
5. Turn off the power after the work is over
Notice
• Power supply voltage within 100-240VAC range before use
• Ambient Temperature should be maintained at 5-40 ℃
• The relative humidity should not exceed 80%
• Pay attention to the overload protection function, and deal with the fault display in time
• Use non-slip mats to ensure equipment stability
• Select the Right Impeller Type and Size
• Regularly check whether the chuck protective cover is in good condition
