Overview

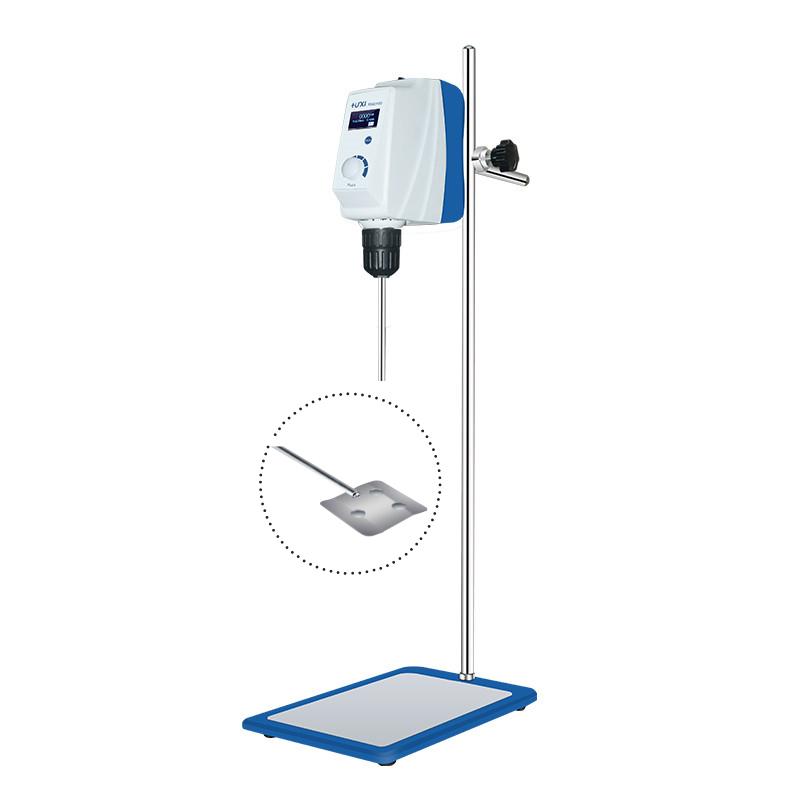

HUXI LCD overhead Stirrer is a laboratory equipment suitable for mixing medium and high viscosity liquids. Models include RWD150/20030045/20030012. The product adopts self-locking chuck and self-developed Cube lifting fixed clip, which can be capable of high load and long-term continuous work. It has automatic protection function for overload and abnormal conditions to ensure laboratory safety. Mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology and other fields.
Features
1. LCD screen display, Rotation speed and time can be coarsely adjusted, Working time can be fine-tuned under working conditions
2. Speed range 30-2200rpm, constant Rotation speed, high and low speed controllable
3. Adopt brushless DC motor for long-term safe operation
4. Overload and motor protection, if there is an abnormality, automatically cut off the circuit and alarm
5. Configure the Impeller penetration hole, the user does not need to adjust the installation height of the instrument
6. The torque can be automatically adjusted according to the sample viscosity
7. Multiple Impellers and Bracket Available
Principle
The LCD top-mounted Stirrer drives the Impeller swirl/spin with a brushless DC motor to achieve mixing of solid-liquid, liquid-liquid or medium and high viscosity samples. With stepless speed regulation, the torque can be automatically adjusted according to the viscosity change of the sample to ensure the mixing effect. With self-locking chuck to fix the Impeller, stable operation is achieved through Cube lifting and fixing clips.
Applications
Chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health products, food, biotechnology
Steps
1. Select the appropriate Impeller and install it into the self-locking chuck
2. Adjust the installation position of the stirring rod through the penetrating hole of the Impeller
3. Rotation speed and Working time
4. Start the device for mixing operation
5. Monitor operating status and fine-tune parameters if necessary
Notice
• Only allowed at Ambient Temperature 5~ 40 ℃ and relative humidity below 80%
• Power supply voltage range is 100-240VAC
• The clamping diameter range is limited to 0.5~ 10mm
• Maximum viscosity does not exceed 80000mPa · s
• When there is an overload or abnormality, the device will automatically stop and display a fault
• Make sure the chuck protective cover and non-slip pad are in good condition before use
• Regularly check the operating status of the equipment
