OSP-40/400 coating Rod formed thread Rod 40 micron wet film thickness 300mm application width

Name: OSP-40/400 coating Rod formed thread Rod 40 micron wet film thickness 300mm application width
Brand: OSP
SKU: NB003780
Price: 176.0 USD
Availability: InStock

$ 176.00Ex works

Using a formed pRoduction process, the wet film thickness is 40 microns, the application width is 300mm, and the stainless steel material ensures durability and accurate Spreader effect.

Model

Get Quote

Category : Coating Rod

Brand : OSP

SKU : NB003780

Service :The delivery and service By NBCLab.Com

Overview

The Japanese OSP-40/400 formed threaded bar is a professional Spreader tool that prepares 40 micron thick wet-film through precision-machined grooves. The product is made of 304 stainless steel, with exquisite workmanship and long service life. The effective width of the Spreader is 300mm. It has the same effect as the traditional wire-wound drawdown bar film but different Coat Weight.

Features

1. formed production process to ensure accuracy 2.40 micron accurate wet film thickness 3.300Mm effective application width 4.304 stainless steel material is durable 5. Exquisite workmanship and long service life 6. Same effect as traditional wire-wound drawdown bar film

Principle

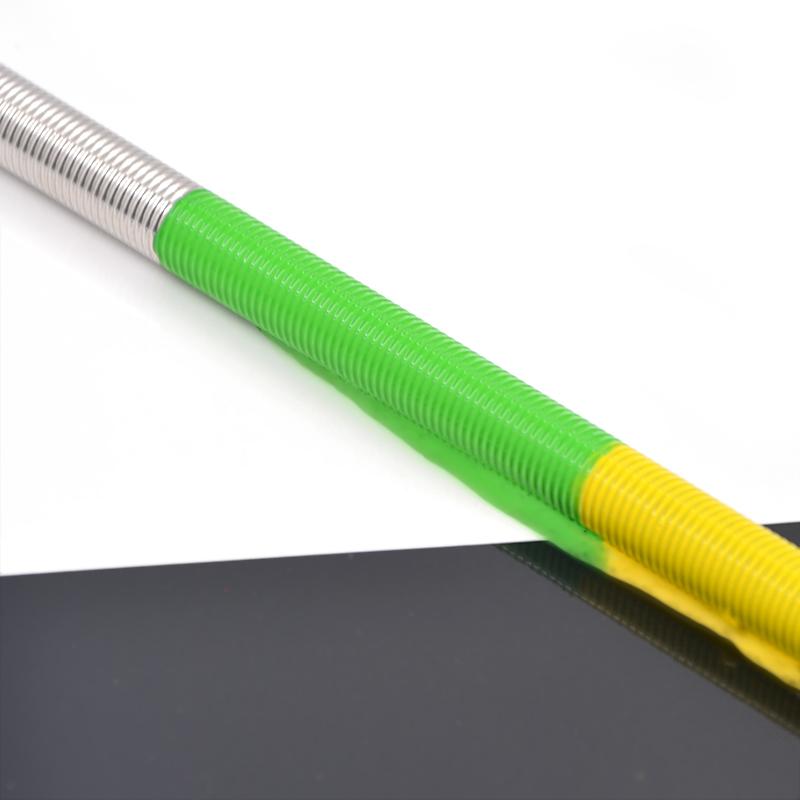

The coating rod controls the thickness of the Spreader through precision-machined grooves of different specifications. During the Spreader process, the grooves can precisely control the amount of Coating, thus preparing a uniform wet-film with a thickness of 40 microns.

Specifications

Production process: formed, wet film thickness: 40μm, diameter: 10mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: 304 stainless steel

Production process
formed
wet film thickness
40μm
rod diameter
10mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
304 stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
