Overview

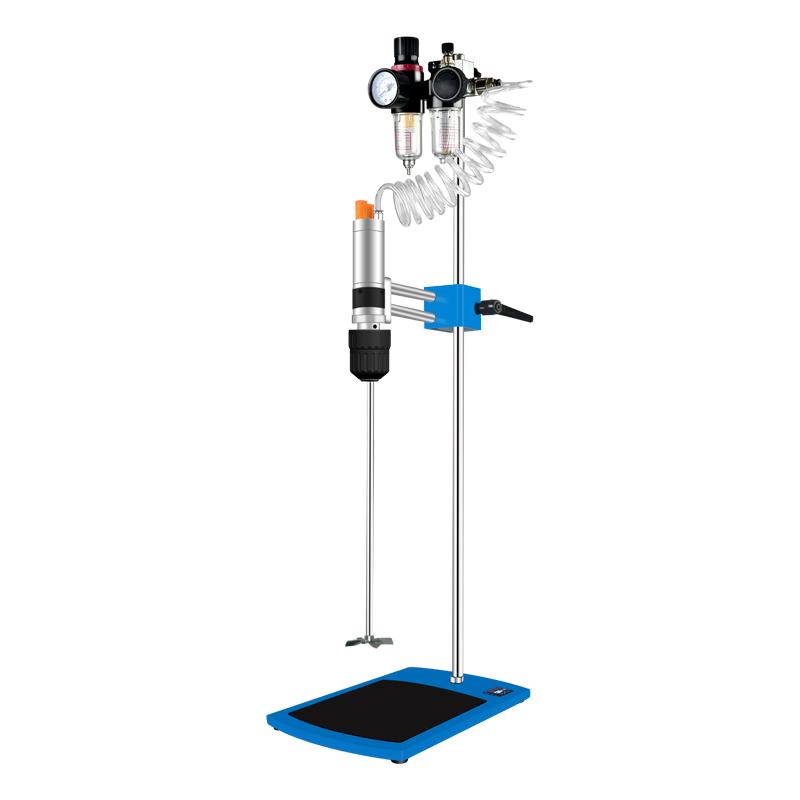

HJQ-2 Pneumatic Stirrer is a HUXI brand product, model HJQ-2/20030007. It uses an air motor to use compressed air as the driving force of the working medium, and converts pressure energy into mechanical energy through the expansion of the compressed gas to realize stirring and mixing of samples in the experimental environment. The product is particularly suitable for stirring with flammable and explosive substances or high temperature environments, such as paints, chemicals and solvents.
Features
1. Small Size, High Power, Safe and Light Operation;
2. With high rotational torque, it can be started with load;
3. Standard pressure gauge, you can check the pressure value at any time;
4. Imported self-locking chuck with self-locking function, high concentricity and long service life;
5. Cube lifting fixed clip adopts double hole mode, the height can be adjusted arbitrarily, the clamping is stable, and the operation is more stable;
6. The whole machine adopts explosion-proof no spark, no static electricity good pneumatic motor, safe operation, not easily affected by external environmental factors;
7. Impellers of various specifications are available.
Principle
The HJQ-2 pneumatic Stirrer uses the pneumatic motor to use compressed air as the driving force of the working medium, and converts the pressure energy into mechanical energy through the expansion of the compressed gas, and drives the stirringdevice to realize the stirring and mixing of the sample.
Applications
Mixing, paints, chemicals, solvents, etc. with flammable and explosive substances or high temperature environments
Steps
1. Connect the compressed air source.
2. Select the appropriate Impeller and install it as required.
3. Adjust the Cube lifting fixing clip to the required height;
4. Start the air motor and monitor the pressure value through the pressure gauge.
5. Perform mixing operation to ensure smooth operation.
Notice
Make sure the compressed air pressure is within the range of 0 to 6 bar.
- Operating Ambient Temperature should be between 5~ 40 ℃;
- relative humidity not exceeding 80%;
- Only applicable to batch processing methods;
- Check whether the Impeller is firmly fixed before use;
- Avoid using non-explosion-proof equipment in flammable and explosive environments;
Regular maintenance of air motors and Impellers to ensure safe operation.
