Overview

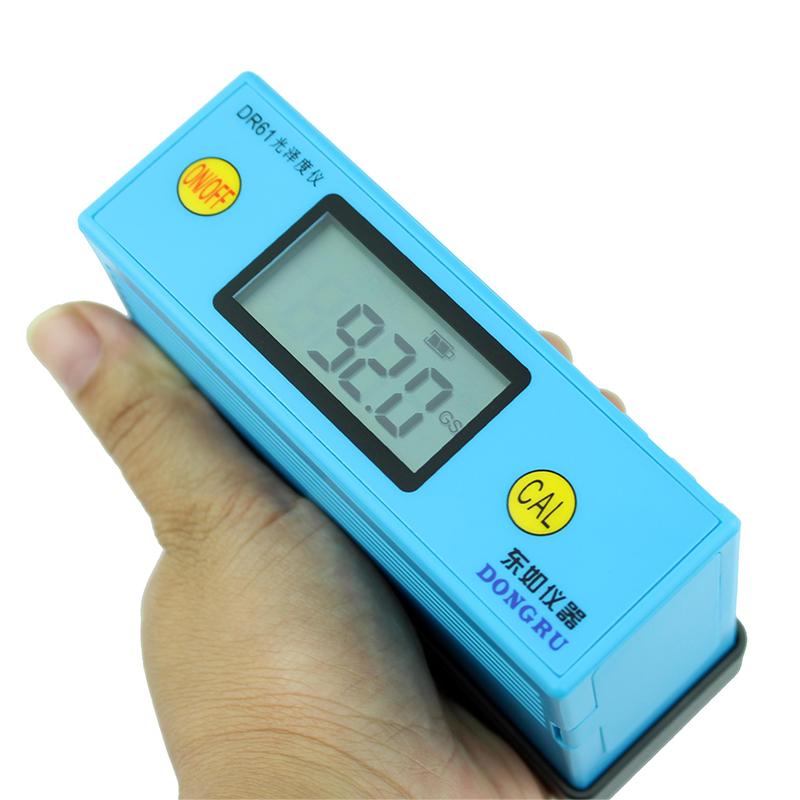

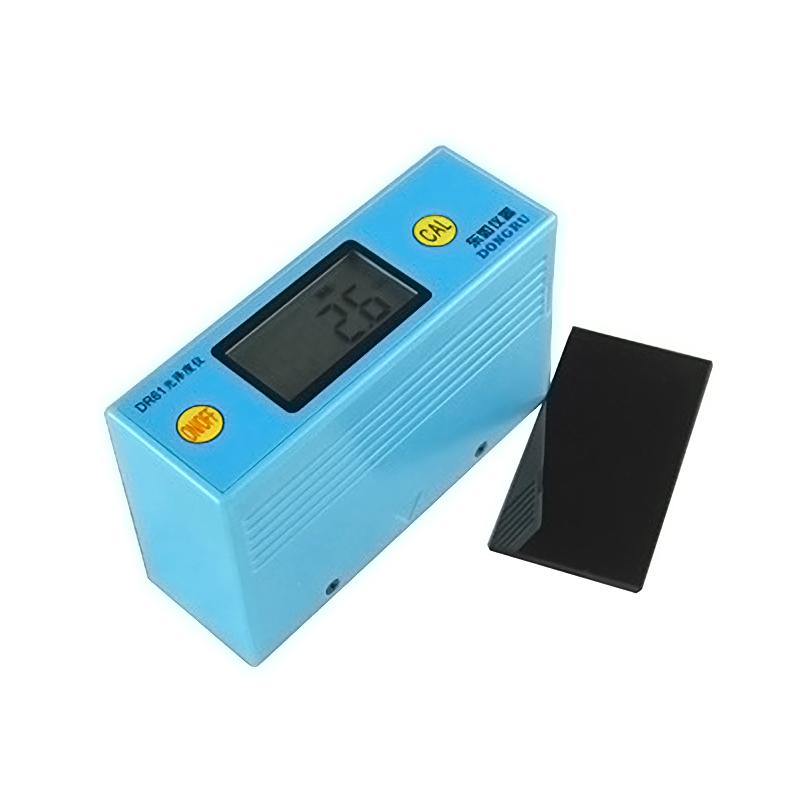

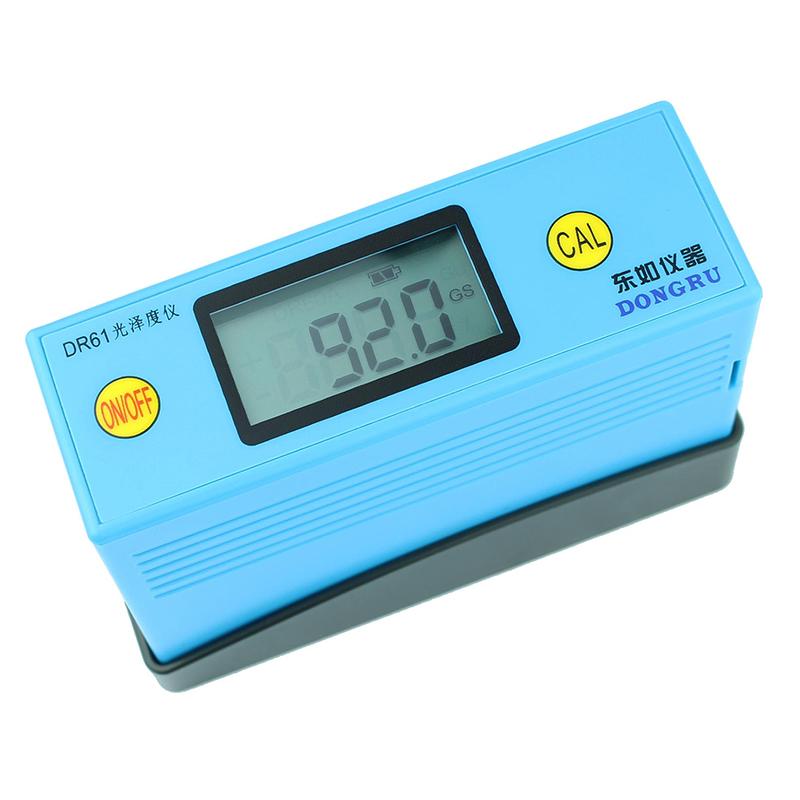

DONGRU glossmeter DR61 is a small Portable glossmeter, in line with the national standard production of Portable 60 degree mirror Gloss Meter, with automatic continuous test function, measurement is convenient and accurate.
Features
1. True portability: small size and light weight.
2. Large screen operation: large font size, backlit display.
3. Intelligent automatic: Automatic calibration function.
4. Fool-like operation: with automatic continuous testing function, a true smartphone.
5. Easy to adjust: Built-in adjustment function.
6. Accurate measurement: High Stability, High Accuracy.
7. Long Life: LED Long Life Illuminant.
8. Energy saving and power saving: Two AA batteries can be used continuously for nearly 60 hours to measure nearly 10,000 data.
Principle
The glossmeter uses 60 ° Measurement Angles, illuminates the sample surface through the imported LED Long Life Illuminant, and calculates the Glossiness value by measuring the reflected light intensity of the mirror, achieving High Accuracy measurement.
Applications
Plastics, paints, Coatings, Automobiles, Musical Instruments, Appliances, Furniture, Flooring, Granite, Marble, Tiles, Ceramics, Decorations, Architecture, inks, paper, printing, Encasement
Standards
ISO2813、ASTMD523、DIN67530、GB9754、GB9966、GB/T13891、JJG696
Steps
1. Install two AA batteries.
2. Turn on the instrument power.
3. Automatic calibration using standard plates.
4. Align the measurement port to the surface of the sample to be tested.
5. Start the automatic continuous test function for measurement.
6. Read the Glossiness value on the display.
Notice
• Please ensure that the standard board is clean and free of pollution before use
• Keep the instrument in vertical contact with the sample surface during measurement
• Regularly use a cleaning cloth to clean the measurement port
• Please remove the battery when not in use for a long time
• Avoid severe impact or fall of the instrument
