Overview

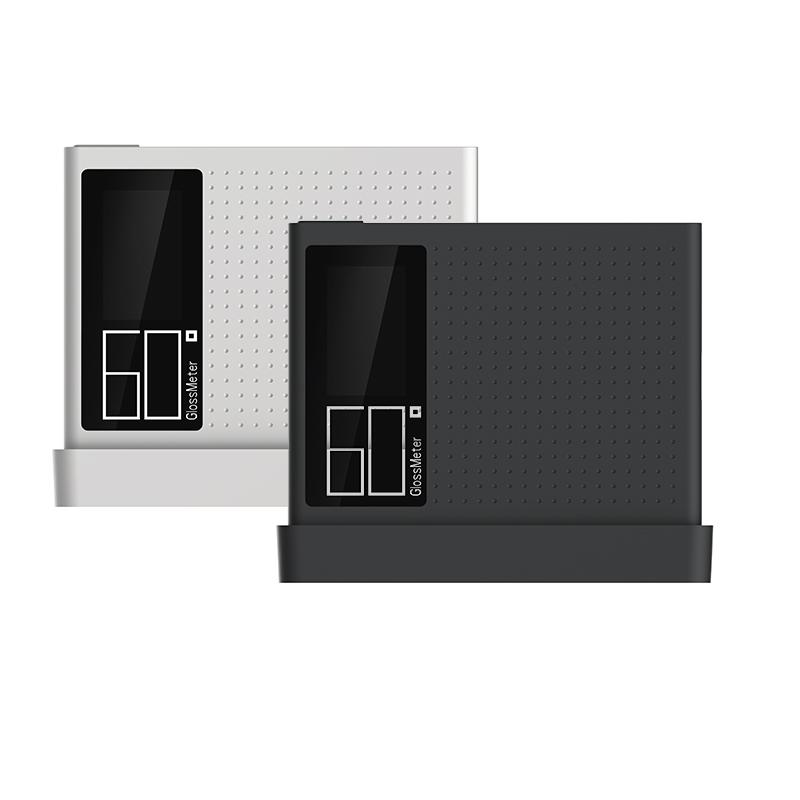

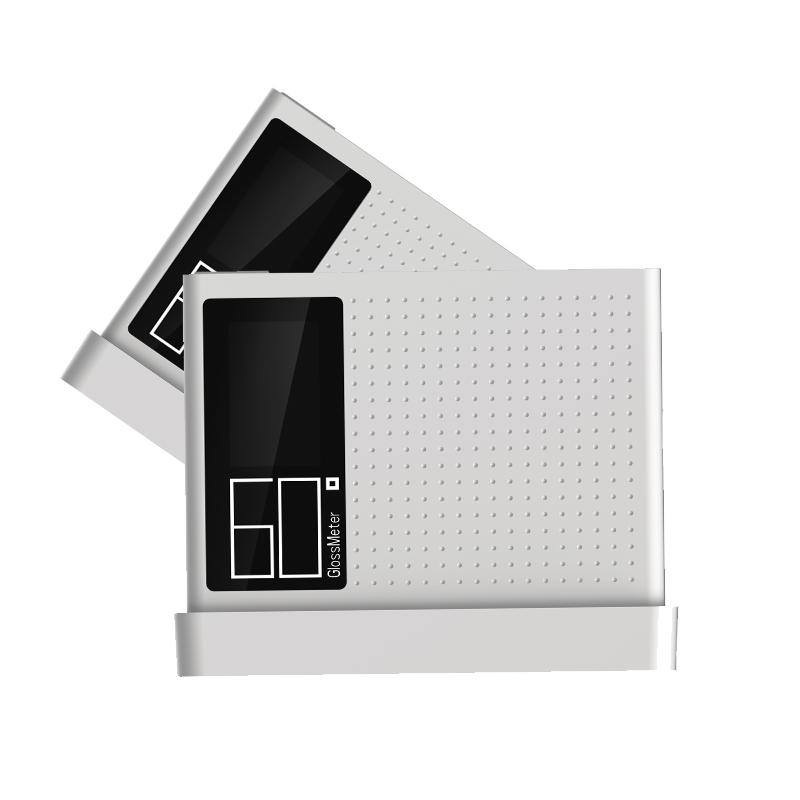

The CHNSPEC G60 Pro Glossiness Meter is a Portable gloss measurement instrument with 60 ° standard Measurement Angles, Measurement range 0~ 1200GU, full color display and USB/Bluetooth Interface, suitable for a variety of surface Glossiness detection.
Features
1. Automatic calibration function to ensure measurement accuracy
2.60 ° Standard Measurement Angles, in line with industry specifications
3. High Accuracy measurement, Graduation up to 0.1GU | 1GU
4. Fast measurement, Response Time less than 1 second
5. Long battery life power supply, single charge can continuous measurement 15000 times
6. Full-color display, clear and intuitive display
7. Dual Interface, Support USB and Bluetooth Connection

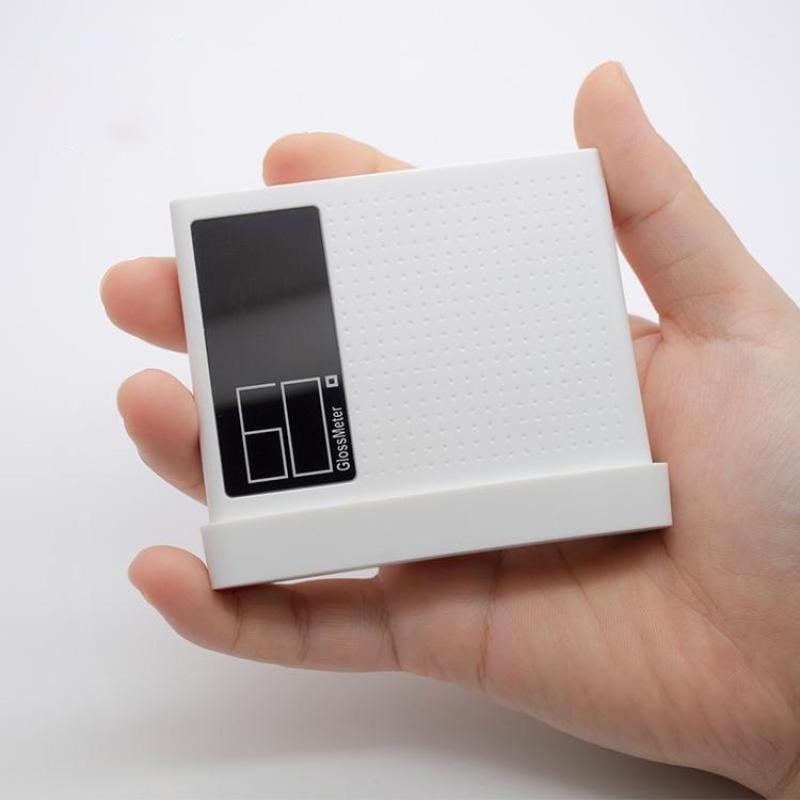

8. Portable design, weight only 116g, compact shape
Principle
The G60 Pro Glossiness Meter irradiates the measured surface with incident rays at an angle of 60 ° to measure the intensity of its reflected light, and calculates the surface Glossiness value according to the standard Glossiness unit (GU) to achieve fast and accurate Glossiness detection.
Applications
Coatings, plastics, metals, ceramics, paper, printing, automobiles, furniture, building materials and other surface Glossiness testing
Standards
ISO 2813、ASTM D523、ASTM D2457
Steps
1. Turn it on and ensure that the device has sufficient power
2. Align the instrument measurement port with the measured surface
3. Press the measurement button for automatic measurement
4. Read the Glossiness value on the display
5. Data can be transferred via USB or Bluetooth
6. Clean the measurement port in time after use
Notice
• Avoid use in high temperature, high humidity or condensation environments
• Make sure the tested surface is clean and drying before measurement

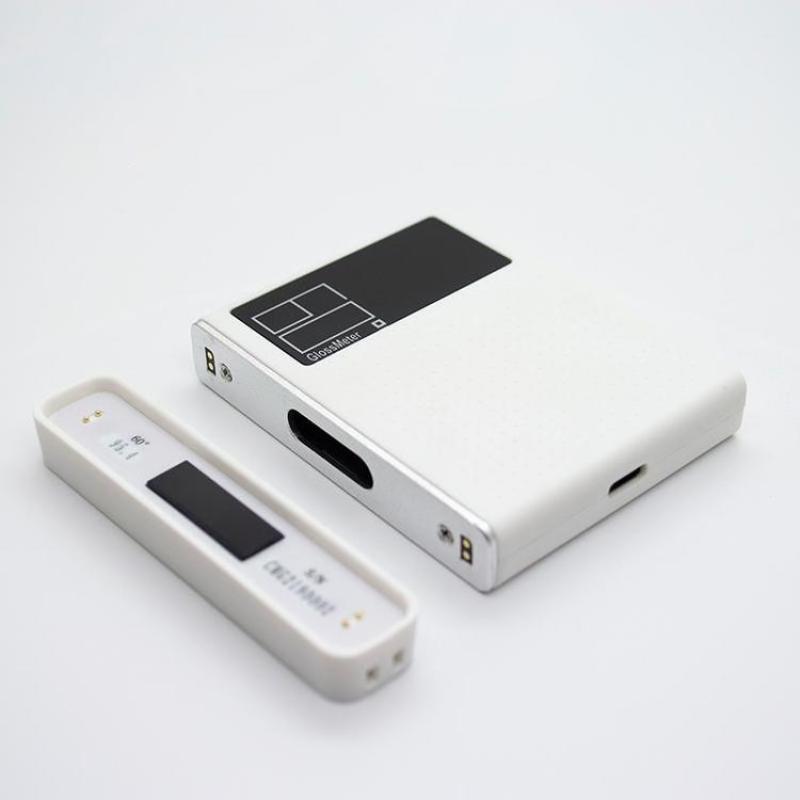

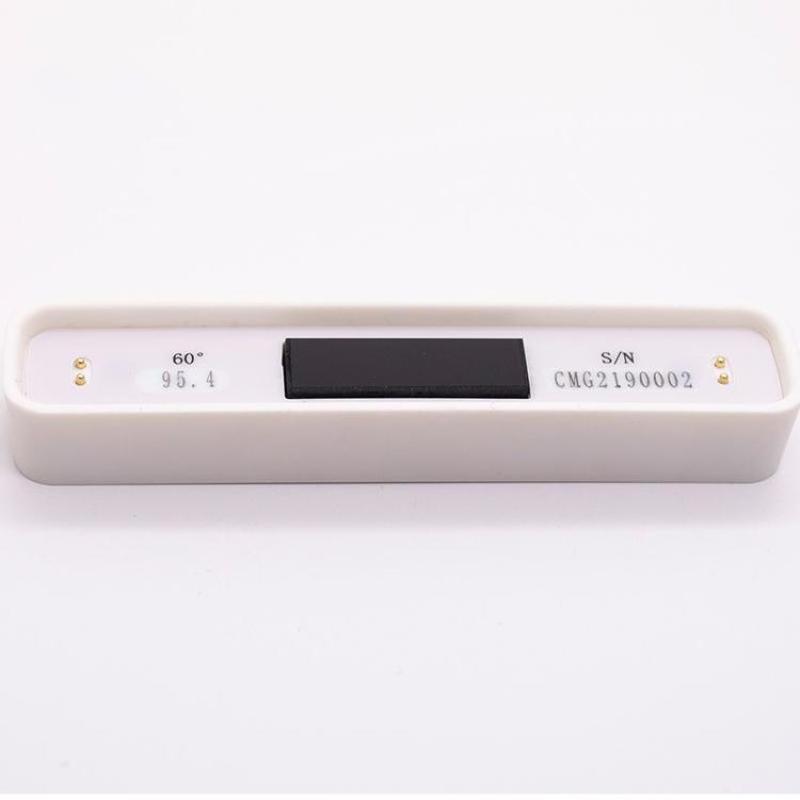

Calibrated regularly with a standard calibration plate
• Avoid violent impacts or falls
Keep drying when storing, avoid direct sunlight
