Overview

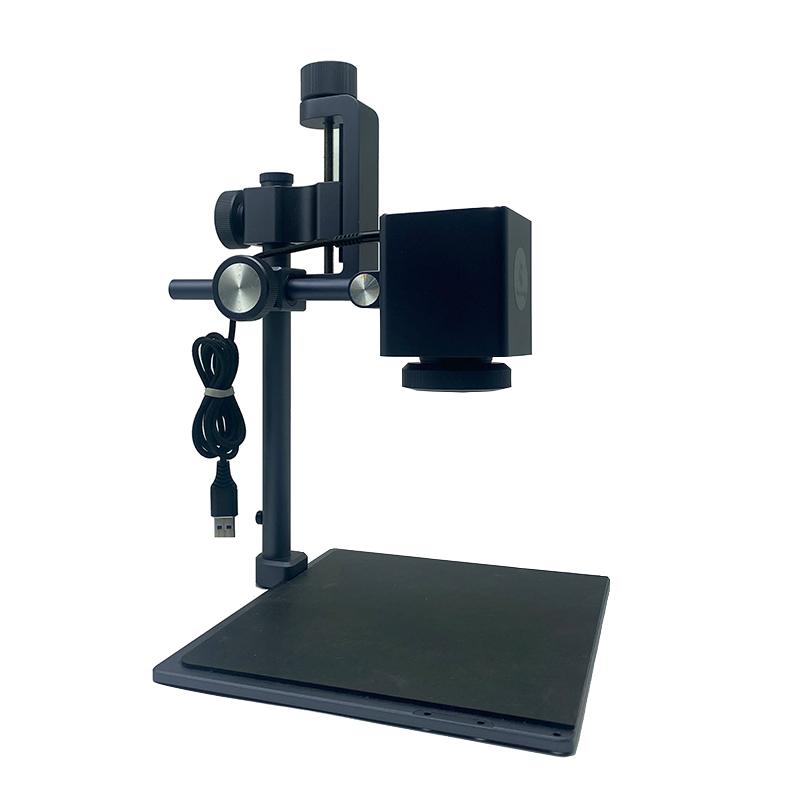

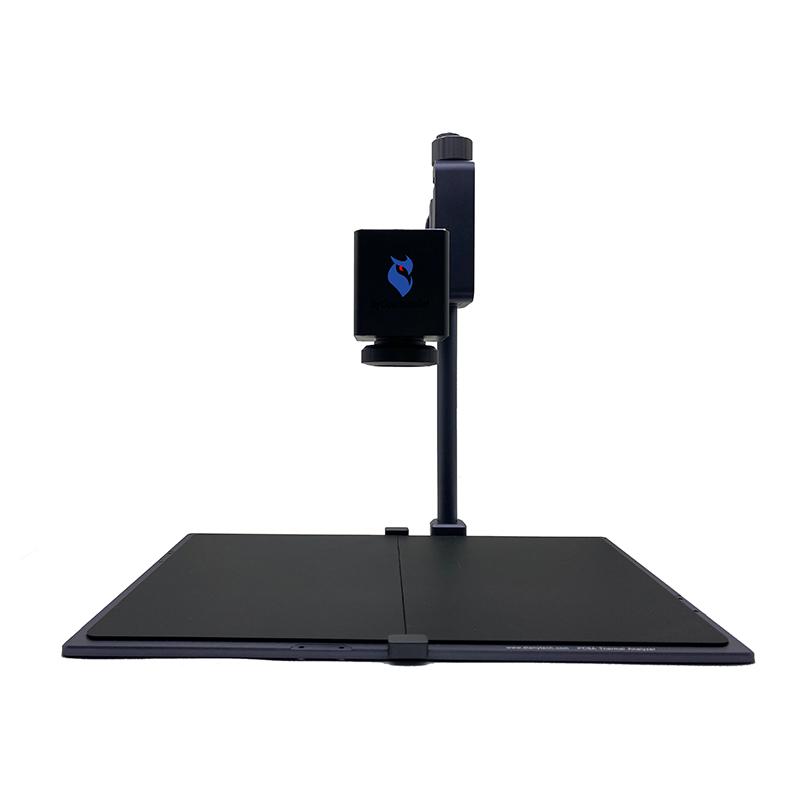

TA-30 thermal imagery analyzer is a device based on the principle of infrared detection imagery, which is used to detect and measure the change of object temperature over time, and can perform unlimited Data storage and Reliability analysis of measurement results. The instrument is suitable for circuit design, component detection, heat dissipation and heat conduction material detection, electronic cigarette atomization gas and other thermal field detection.
Features
1. Detection temperature: Provide point, line, rectangle, polygon, Jiugong diagram and other temperature detection and drawing tools; equipped with 16 kinds of special color palettes; support rectangle box for detailed inspection; with dynamic temperature width, highlight high temperature area, isotherm and other temperature width detection methods; can display high temperature, low temperature, average temperature and other temperature data; support global temperature, 40 point temperature measurement, 20 area temperature measurement and other temperature changes Linear dispersion display.
2. Storage of temperature data: supports unlimited recording of temperature data and information, saving it in CSV format; temperature sampling Frequency can be flexibly configured (50ms, 100ms, 200ms... 1s); supports automatic photo saving beyond the temperature threshold; supports manual photo and video recording.

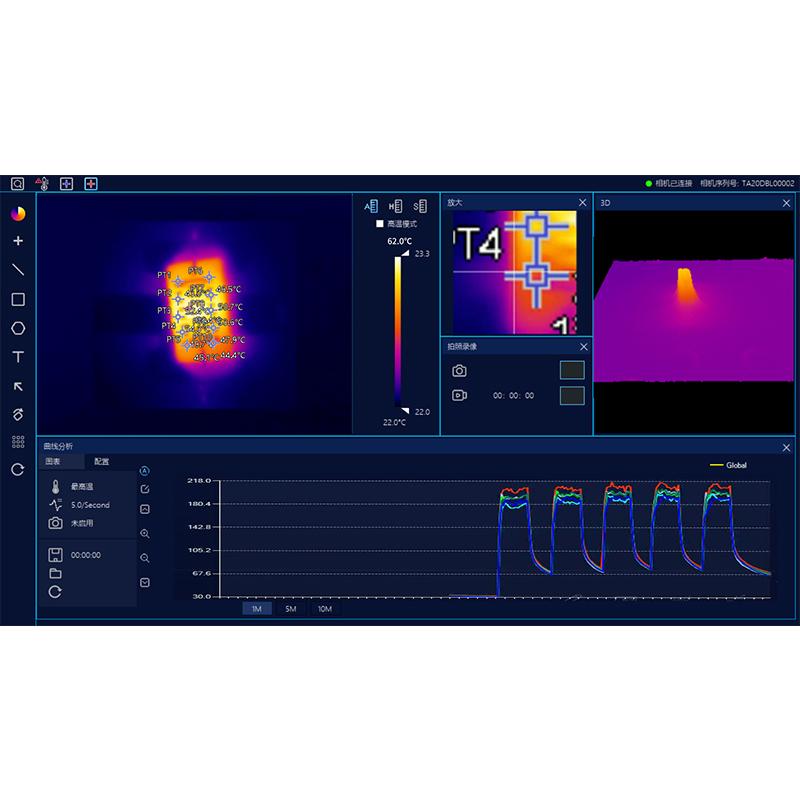

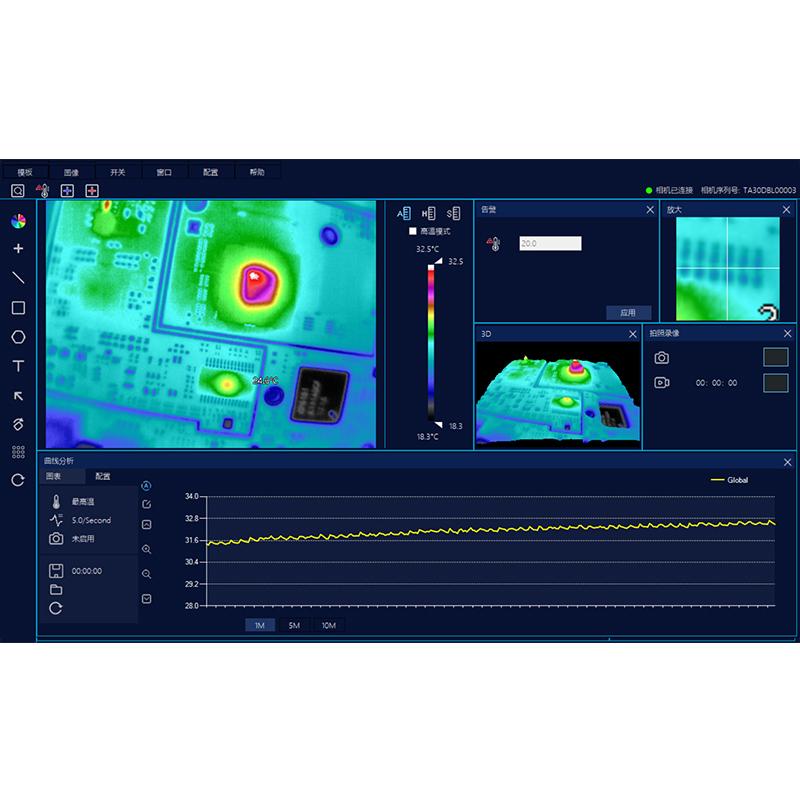

3. Analysis of infrared thermal imagery data: support online temperature analysis, real-time analysis of temperature changes at each point online; Linear dispersion can be used to display the measured temperature data in real time, support 1 minute, 5 minutes and 10 minutes multi-period display; support CSV format Data analysis; Support infrared thermal image offline analysis; Support multi-dimensional comprehensive analysis of infrared thermal image, time and temperature changes; Support isotherm hierarchical analysis of temperature thermal field.
Principle
The device uses the principle of infrared detection imagery to detect and measure the temperature of objects. The infrared radiation emitted by the object is received by the infrared detector, converted into an electrical signal, and then processed to generate thermal images and temperature data, so as to realize the detection and analysis of the thermal field distribution and temperature change of the object.
Applications
PCBA leakage, short circuit, off position positioning and detection and maintenance, mobile phone or Miscellaneous intelligent equipment comparison and evaluation, electronic equipment performance auxiliary analysis, electronic cigarette Nebulizer temperature control, thermal conductivity and heat dissipation material temperature conduction analysis, material uniformity analysis, circuit design heating experiment, thermal simulation, heating rationality verification, product heat dissipation capacity detection, equipment heating status evaluation comparison
Notice

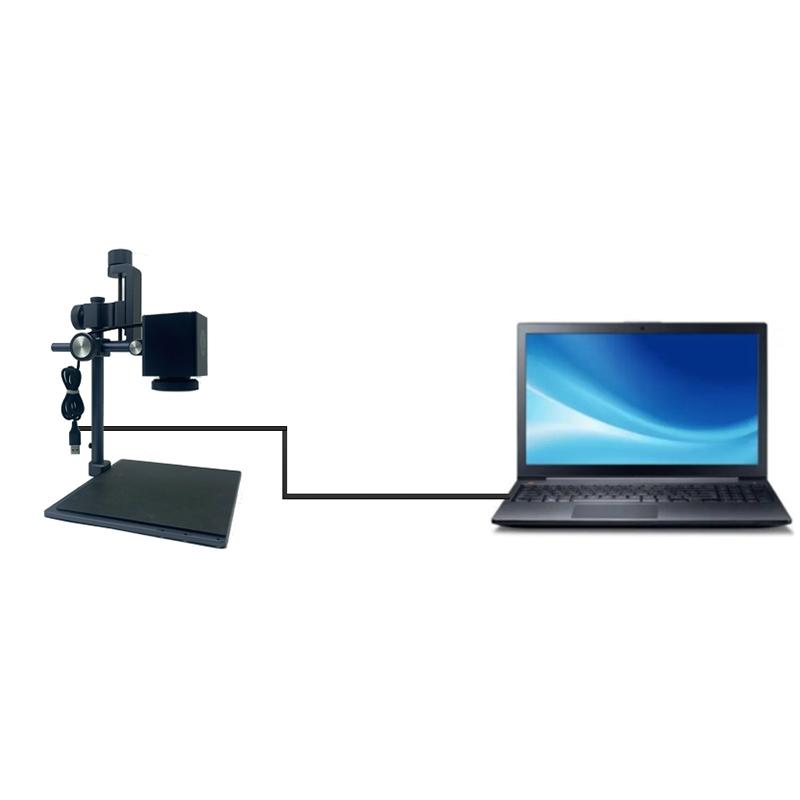

Operating system must be Windows 10 or above.
• Minimum configuration requirements for computer: CPU i5 and above, minimum memory 4G (recommended above 8G). If you need to conduct a lot of data testing, save applications and 3D temperature analysis, it is recommended to use i7 CPU (or AMD CPU of the same grade), memory 8G or more.
• The computer must have the Microsoft Visual C++ Redistributable (2005-2019) patch installed, otherwise the software will not run.
• Accessories for data collection are not included in the standard configuration.
