Overview

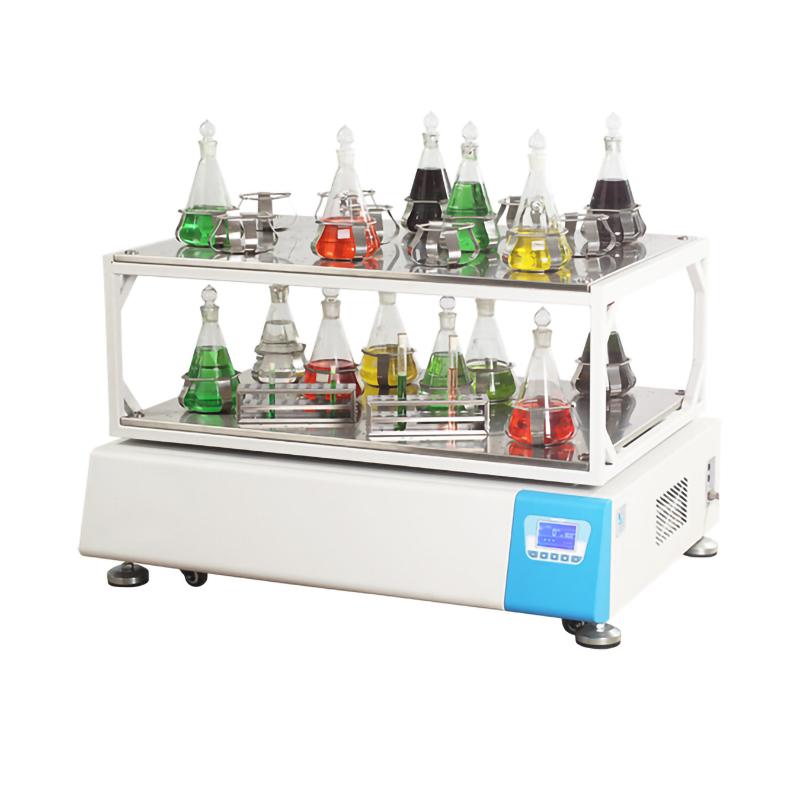

HZQ-3112 (double-decked) shaker is an open oscillator equipment launched by YIHENG brand, which can run continuously for a long time and is widely used in cell fostering, fermentation, hybridization, biochemistry and cell tissue research with high requirements for Oscillation Frequency, especially suitable for pilot and large-scale production fields.
Features
1. Humanized design: Quiet operation, large-screen LCD screen displays multiple sets of data on one screen, Menu Operating interface is simple and easy to understand, stainless steel oscillating countertop is easy to disassemble and wash, and a variety of special cradles and fixtures are easy to replace to improve efficiency.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage, Microcomputer-controlled Frequency with timing and mild oscillation start-up functions, Rotation speed monitoring circuit to ensure safe operation.
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, and maintenance-free, breaking through the defects of long-term continuous operation.
4. Three eccentric shaft equilibrate drive: ensure that the sample oscillates at the same speed, and the load-bearing and durable structure design performs strongly under full load and high speed.
5. Multi-Segment Programmable Control (Optional): Multi-Segment Oscillation Frequency and Time Synchronous Programming to simplify complex foster requirements and realize automatic control.
Principle
The shaker adopts a three-eccentric shaft equilibrating drive process, and controls the Oscillation Frequency through a microcomputer to ensure that the samples on the oscillation tray oscillate at the same Rotation speed, the gentle start function prevents the sample from spilling, and the Rotation speed monitoring circuit monitors in real time and ensures safe operation.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, pilot test, mass production
Steps
1. Connect the power supply AC220V 50HZ.
2. Set Oscillation Frequency (40~ 300rpm), time and other parameters through the large-screen LCD menu Operating interface.
3. Select normal or programmed operation mode (e.g. optional multi-stage programmable control).
4. Start the device, and the gentle oscillation start function will run automatically.
5. Monitor the operating status, and the equipment automatically stores parameters and continues the original program after the power outage resumes.
Notice
• Power supply voltage AC220V 50HZ to avoid voltage mismatch.
• Check whether the cradle and fixture are firmly installed before use to prevent accidental peeling.
• To avoid running the device when the Rotation speed is too fast or too slow, the monitoring circuit will automatically stop oscillating.
• When cleaning, remove the stainless steel oscillating countertop for cleaning to maintain hygiene.
• Pay attention to the heat dissipation of the motor when running continuously for a long time to ensure that the environment is ventilated.
• Read the instructions carefully before using the programming mode to avoid parameter setting errors.
