Overview

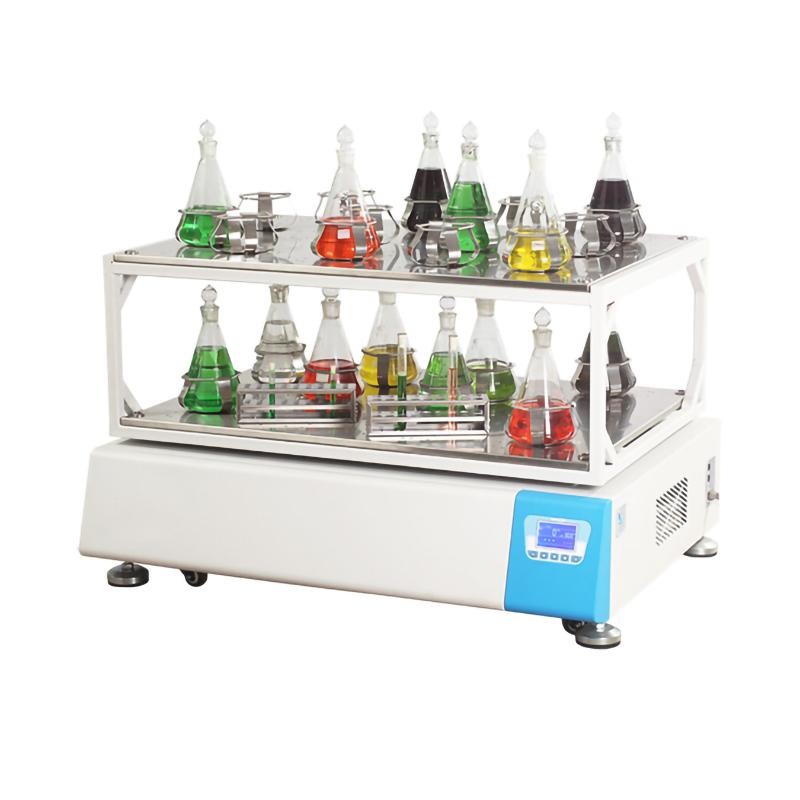

HZQ series shaker is an open oscillating equipment, which can run continuously for a long time. It is widely used in the research of cell fostering, fermentation, hybridization, biochemistry and cell organization with high requirements for Oscillation Frequency. It can foster the movement and static of microbial cells and various strains, especially suitable for pilot and mass production fields.
Features
1. Humanized design: Quiet operation, large-screen LCD screen displays multiple sets of data on one screen, Menu Operating interface is simple and easy to understand, oscillating countertop is made of stainless steel for easy removal and cleaning, a variety of special cradles and fixtures are available and easy to replace.
2. Quality assurance: User-set parameters are automatically stored in the event of a sudden power outage and run the original setting program after power on, using microcomputer-controlled Frequency with timing function and mild oscillation start function, and uniquely designed Rotation speed monitoring circuit can stop abnormal oscillation.
3. Continuous operation guarantee: low heat dissipation brushless DC motor with large starting torque, wide speed regulation, and maintenance-free, breaking through the defect that China shaker cannot operate continuously for a long time.
4. Three eccentric shaft equilibrating drive: ensure that the sample oscillates at the same Rotation speed, load-bearing durable structure design to ensure strong Power under full load and high speed.
5. Multi-segment programmable control (optional): Multi-segment Oscillation Frequency, Time Synchronous Programming, ordinary and programmed operation modes are optional, preset values and operating values are displayed at the same time, simplifying complex foster requirements for automatic control.
Principle
Frequency is controlled by microcomputer, and the sample oscillates at the same Rotation speed on the oscillation tray through the equilibrating drive process of the three eccentric shafts. A Rotation speed monitoring circuit is used to monitor the abnormal Rotation speed and stop the oscillation. The gentle oscillation start function prevents the sample from spilling.
Applications
Cell fostering, fermentation, hybridization, biochemistry, cell tissue research, movement of microbial cells and various strains, static fostering, pilot test, mass production
Steps
1. Connect the power supply AC220V 50HZ.
2. Set Oscillation Frequency (40~ 300rpm), time and other parameters through the large-screen LCD menu Operating interface.
3. Select normal or programmed operation mode (e.g. optional multi-stage programmable control).
4. Place the sample on the oscillating table and install the cradle and fixture as required.
5. Start the device, and the gentle oscillation start function will run automatically.
6. Monitor the operating status, and the equipment automatically handles abnormal situations.
Notice
• Power supply voltage AC220V 50HZ.
• Avoid accidental start and stop of equipment by using the gentle oscillation start function.
• Regularly clean the oscillating countertop, and the stainless steel material is easy to remove and clean.
• Pay attention to Device power and Stability at full load and high speed.
• If multi-stage programmable control is optional, please follow the instructions to operate the programming function.
