Overview

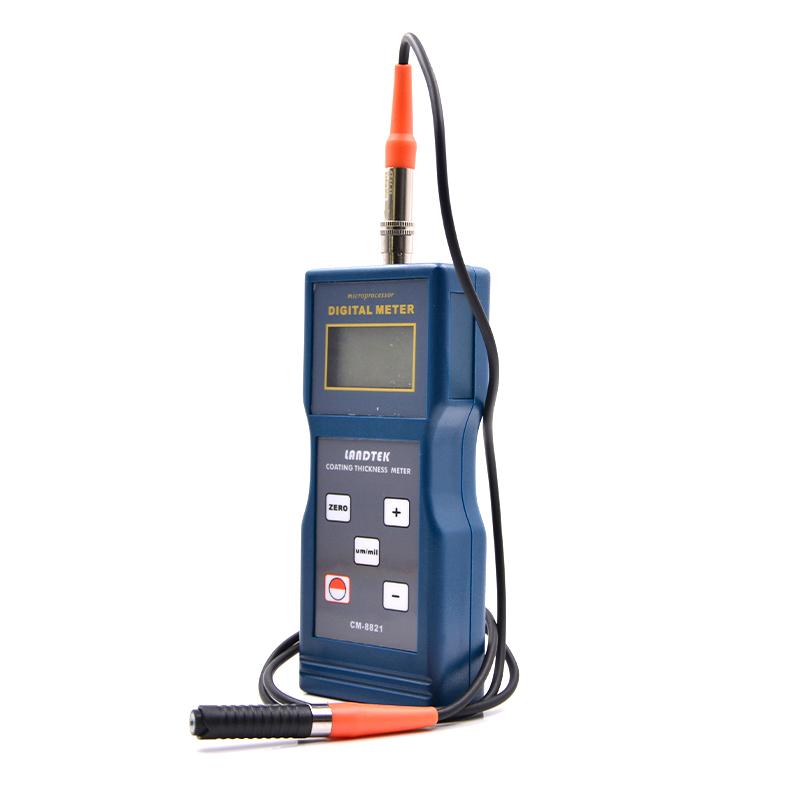

CM8820 Cladding Thickness Gauge is a customized measuring instrument of LANDTEK brand. It adopts magnetic Induction Measuring method. Measurement range is 0~ 2000μm (0~ 5mm is customized for large range). The instrument uses magnetic Sensor to measure the thickness of non-ferrous magnetic coatings and platings on ferromagnetic metal substrates such as steel and iron.
Features
1. Using magnetic Induction Measurement principle
2. Measurement range 0~ 5mm (can be customized 2mm-6mm)
3. The resolution can reach 0.1μm | 1μm
4. Equipped with LCD screen and Chinese Operating system
5. With low voltage prompt function
6.Lightweight, only 210g (without battery)
Applications
Measurement of non-ferromagnetic coatings and platings on ferromagnetic metal substrates such as steel and iron, such as paint, powder, plastic, rubber, synthetic materials, phosphating layer, chromium, zinc, lead, aluminum, tin, cadmium, porcelain, enamel, oxidation layer, etc
