Overview

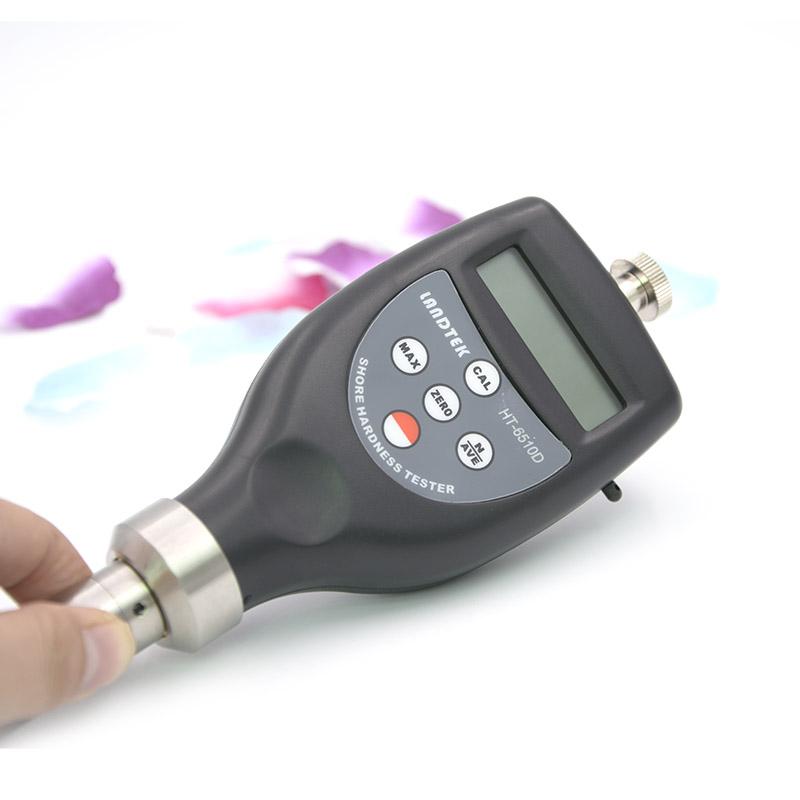

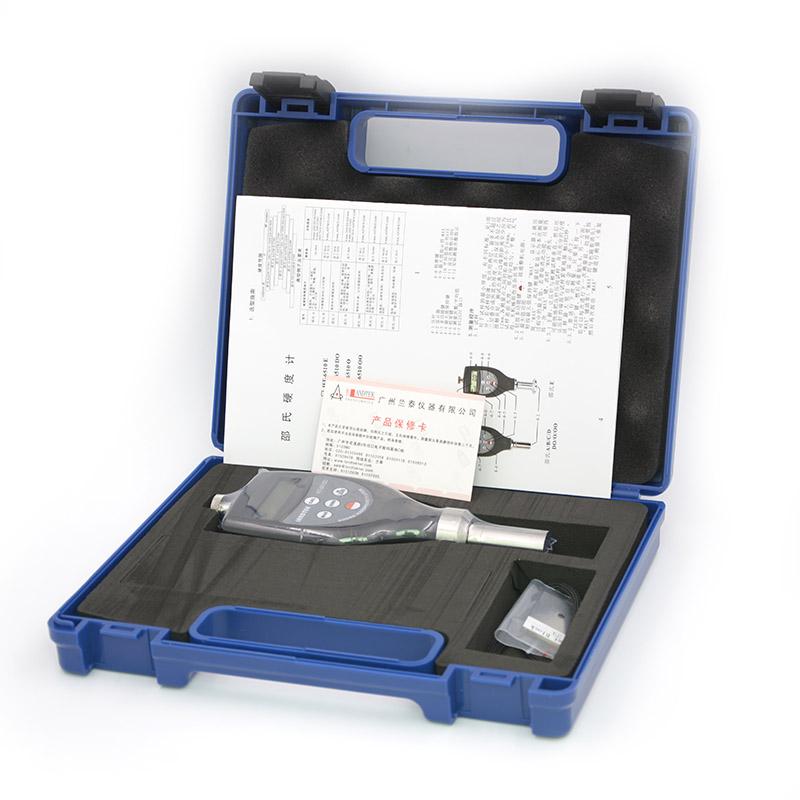

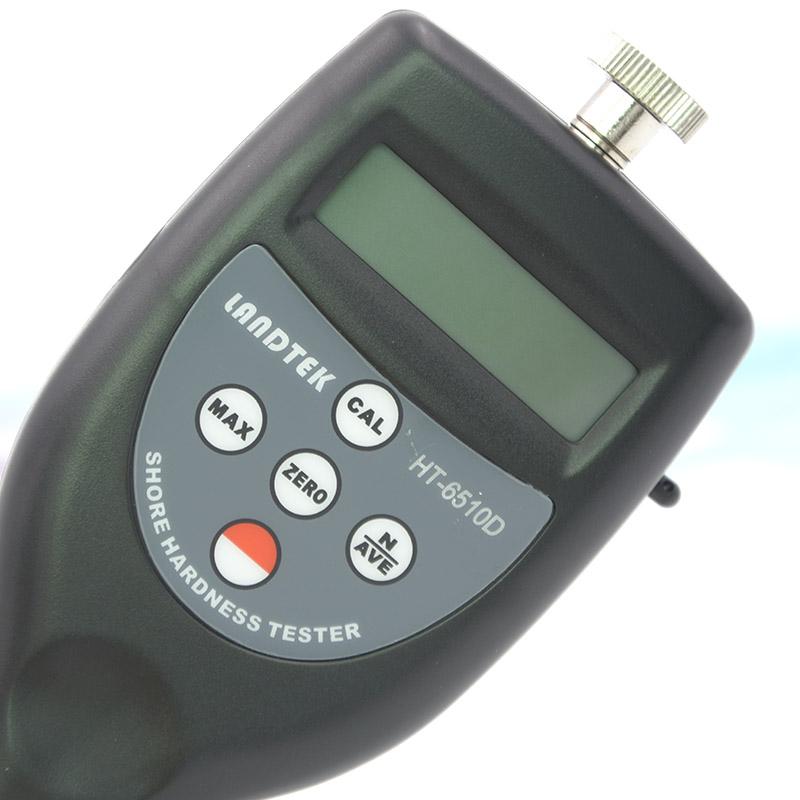

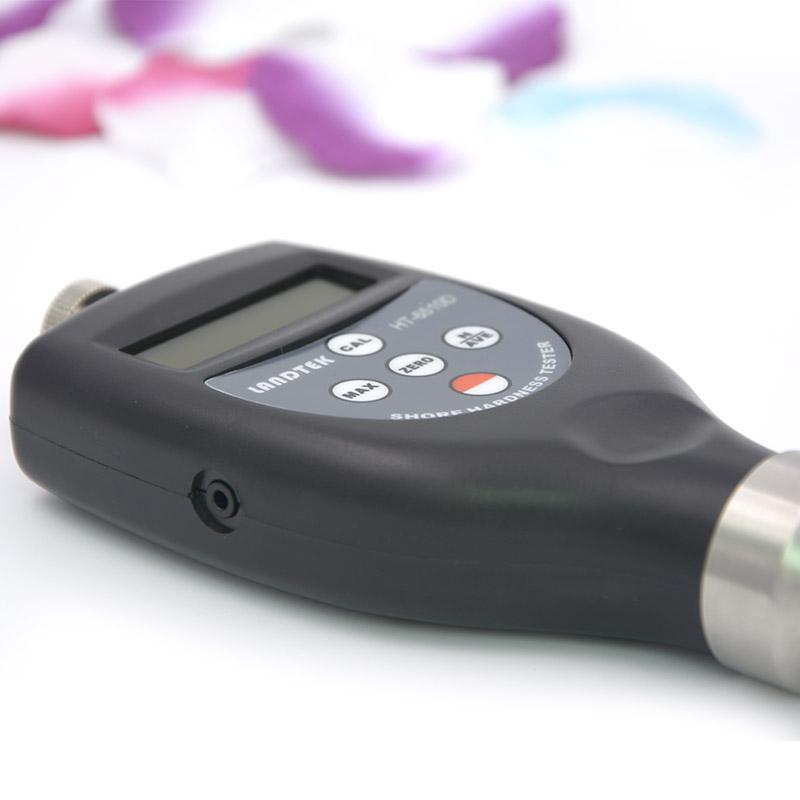

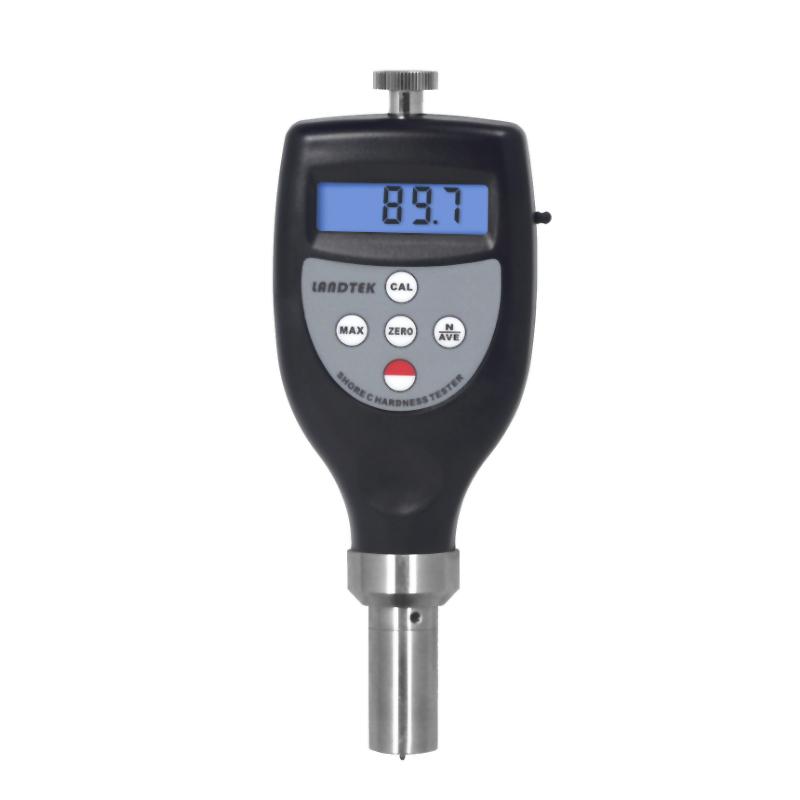

The HT6510D Shore Shore Durometer is a Handheld portable Hardness measuring instrument from the LANDTEK brand that uses a small LCD screen to display Hardness value readings. This model is dedicated to the measurement of Cys Hardness of materials such as hard plastics, hard rubbers, hard thermal plasticity plastics and thermal plasticity resilience.
Features
1. Average calculation function
2. MAX Maximum Latch Function
- Low voltage alarm indication function
- Support USB data cable output and RS-232 data cable output for PC communication
- Provide Bluetooth data output selection
- Using computer technology and digital filtering technology to ensure measurement accuracy
- Digital display, ignoring the difference
Principle
The Shore Shore Durometer evaluates the hardness of materials through the measurement of their Cedar Hardness. The HT6510D model uses an R0.1 conical crimper to apply pressure to the material under test, which is digitally processed to accurately measure and display Hardness values.
Applications
Hard plastic, hard rubber, hard thermal plasticity plastic, thermal plasticity resilience
Standards
"Rubber pocket hardness gauge press-in Hardness test method" GB/T 531-1999, "Plastic Shore hardness testing method" GB/T 2411-80, DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Steps
1. Manual shutdown: Press the multi-function button until the monitor shows OFF, and release the button to turn off the power.
2. Automatic shutdown: If you do not operate or press any button within 60 seconds, it will automatically shut down.
Notice
- Note that the working ambient temperature range is 0~ 50 ℃
- Environmental humidity should be less than 80% RH
- Pay attention to the battery level, and replace the battery in time when there is an under-voltage alarm
- Before use, please confirm that the tested material meets the Measurement range of HT6510D (> 90A)
- Optional test bracket, rubber hardness testing block and other accessories to improve Measurement accuracy
