Overview

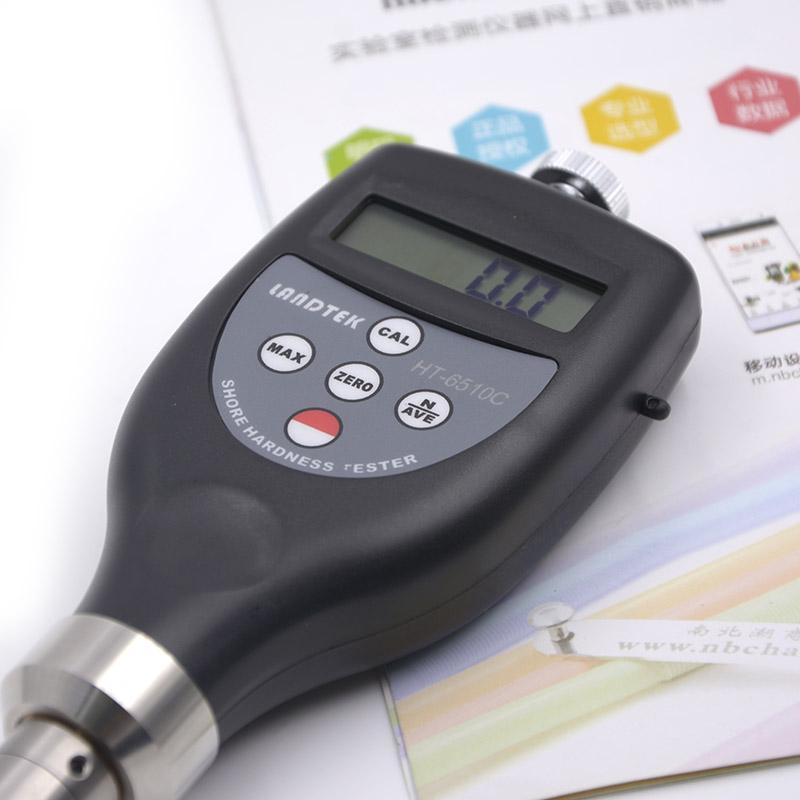

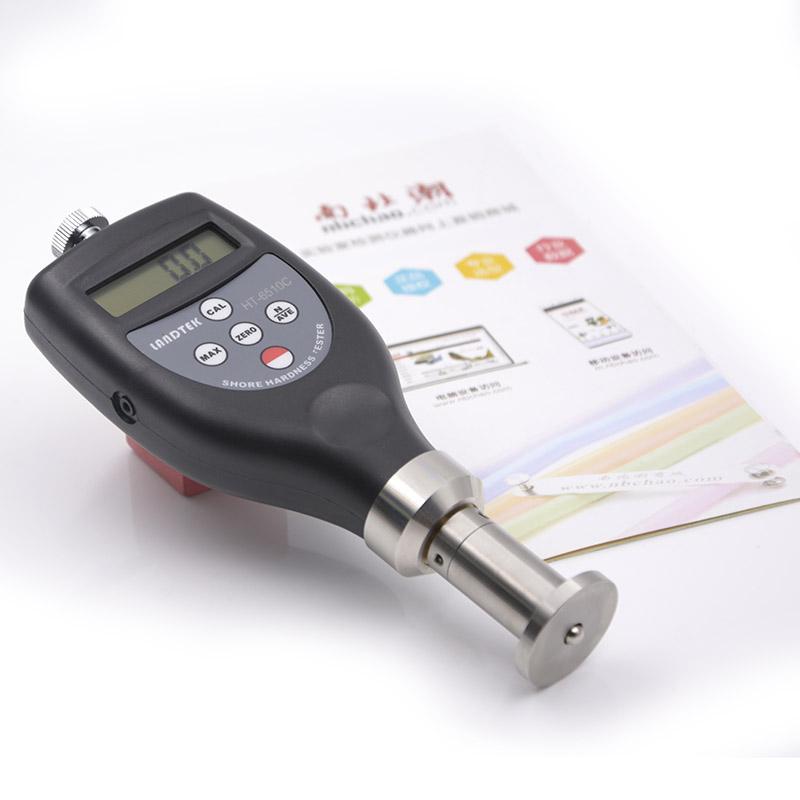

The HT-6510C Shore Shore Durometer is a Handheld portable hardness gauge from the LANDTEK brand, which uses a small LCD screen to display Hardness value readings. This model is dedicated to the measurement of Closer Hardness of materials such as Medium Hardness Rubber, Medium Hardness Plastics and Thermal Plasticity Plastics, Thermal Plasticity Resilience, etc. Measurement range is greater than 90B and less than 20D.
Features
1. Average calculation function.
2. MAX Maximum latch function.
3. Low voltage alarm indication function.
4. Use USB data cable output and RS-232 data cable output to communicate with PC.
5. Provide Bluetooth data output selection.
6. Use computer technology and digital filtering technology to ensure accurate measurement.
7. Numbers show, ignoring the difference.
Principle
The HT-6510C model uses a 0.79 truncated conical crimp, combined with digital filtering and computer technology to process the data, and directly displays the Hardness value on the small LCD screen.
Applications
Medium Hardness Rubber, Medium Hardness Plastics and Thermal plasticity Plastics, Thermal plasticity resilience
Standards
"Rubber pocket hardness gauge press-in Hardness test method" GB/T 531-1999, "Plastic Shore hardness testing method" GB/T 2411-80, DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Steps
1. Manual shutdown: Press the multi-function button until the monitor shows OFF, and release the button to turn off the power.
2. Automatic shutdown: If you do not operate or press any button within 60 seconds, the device will automatically shut down.
Notice
* Ensure that the Ambient Temperature is between 0 and 50 ° C and the Humidity is less than 80% RH.
Pay attention to the low voltage prompt and replace the battery in time.
* Confirm measurement materials conform to Model Application before use.

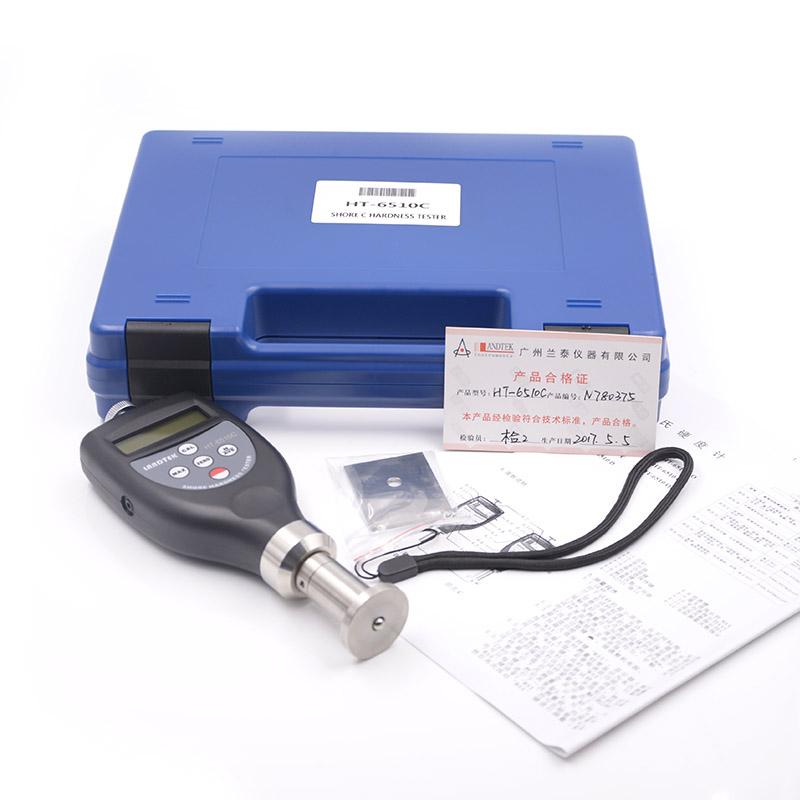

* Optional accessories include test bracket, test block, Connectivity cable and software, etc.
