Overview

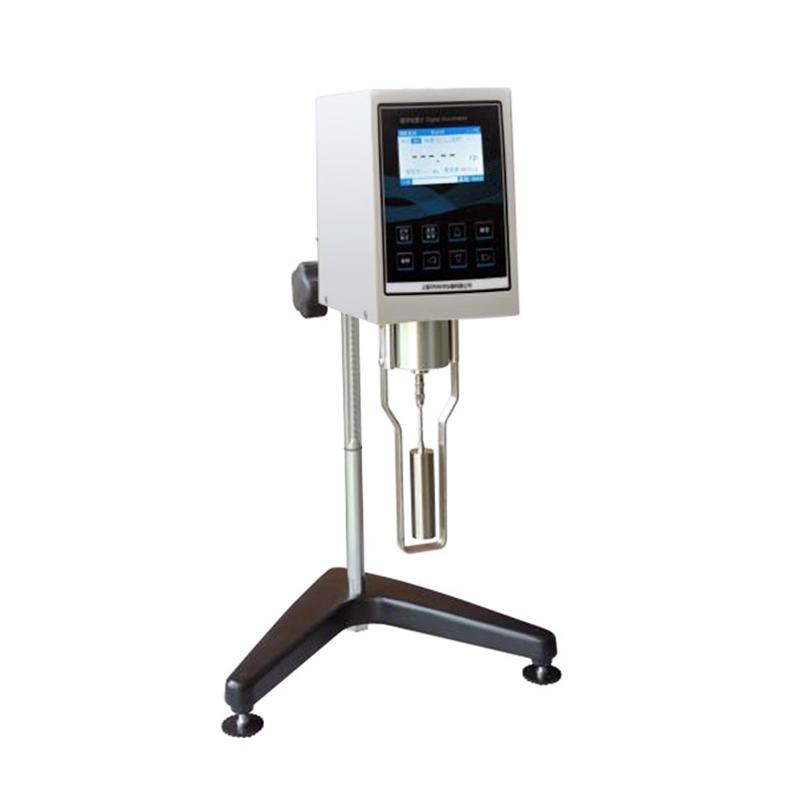

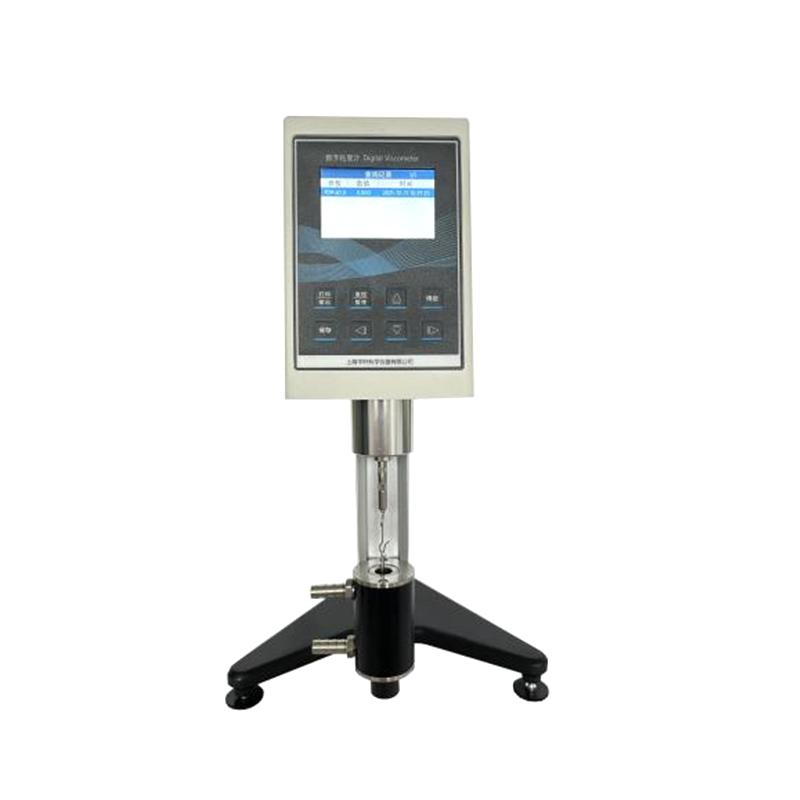

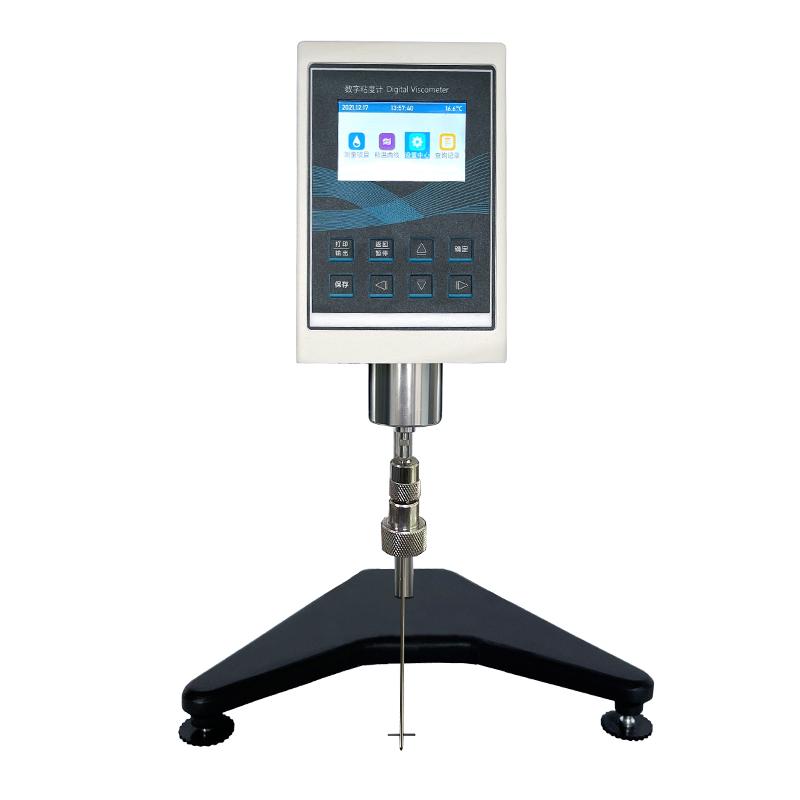

The LVTV-2C rotational viscometer is a digital viscosity measurement instrument from the PINGXUAN brand. It features a high definition color screen and an all-metal case design. It is equipped with a PT100 temperature sensor and a USB PC interface. It supports optional computer control and automatic data collection.
Features
1. The color screen Operating interface is concise and clear, and new users can get started
2. The metal shell has strong anti-interference, unlike the plastic parts used by peers
3. PT100 High Accuracy temperature sensor
4. High-speed chip processor for faster data processing
5. Adopt high-strength small shaft for durability
6. With 232 printing interface, it can be directly connected to a computer or micro printer to print data
7. Timing function automatically completes non-newtonian fluid measurement to ensure good conformity data
8. Linear dispersion function of instrument viscosity
9. Automatic range shows the maximum measurement viscosity under the current rotor and Rotation speed combination
10. The instrument can store data, which is convenient for customers to check and compare
Principle
The LVTV-2C rotational viscometer measures the viscosity value by the resistance of the rotor when swirling/spinning in the sample, uses stepless variable speed to control the Rotation speed, and calculates and displays the viscosity, shear rate, shear stress and other related parameters in real time through a high-performance processor.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, paints Coatings, Petroleum, Cosmetics, Milk Products, Juice, Paste, Solder Paste, Red Glue
Steps
1. Choose the right rotor and Rotation speed combination
2. Immerse the rotor in the sample to be tested
3. Start the instrument to start the measurement
4. The instrument automatically displays viscosity values and related parameters
5. Connect the computer via USB interface for data collection
6. Use the 232 interface to connect the printer to print data
Notice
Make sure the instrument is level before use
• Select the appropriate rotor and Speed range for measurement
• Regularly calibrate with standard solution
• Avoid use in strong electromagnetic interference environments
• Appropriate detergent should be used when cleaning the rotor
• Keep it safe when not in use for a long time
