Overview

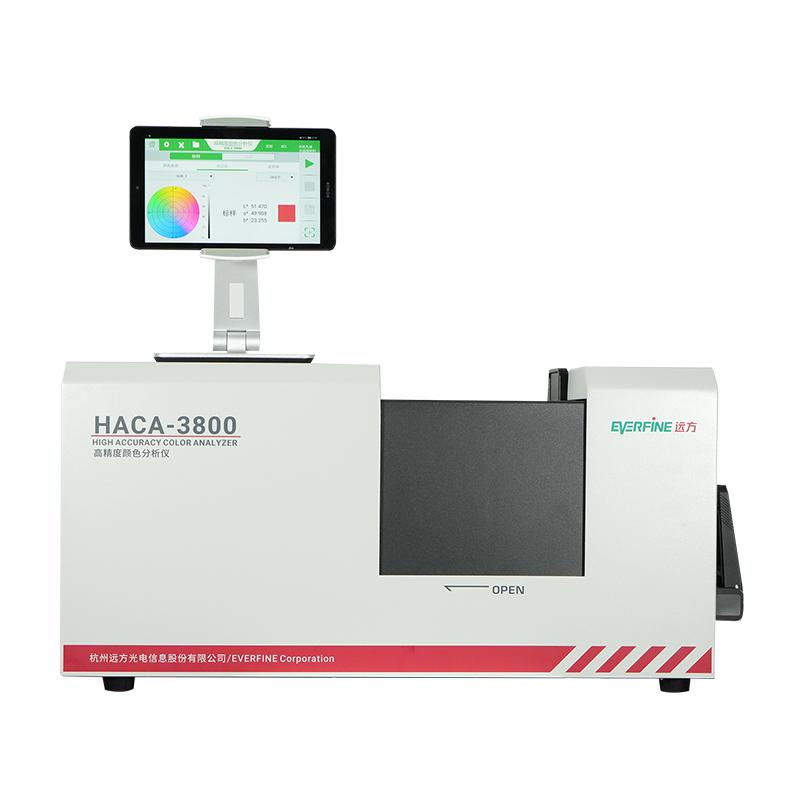

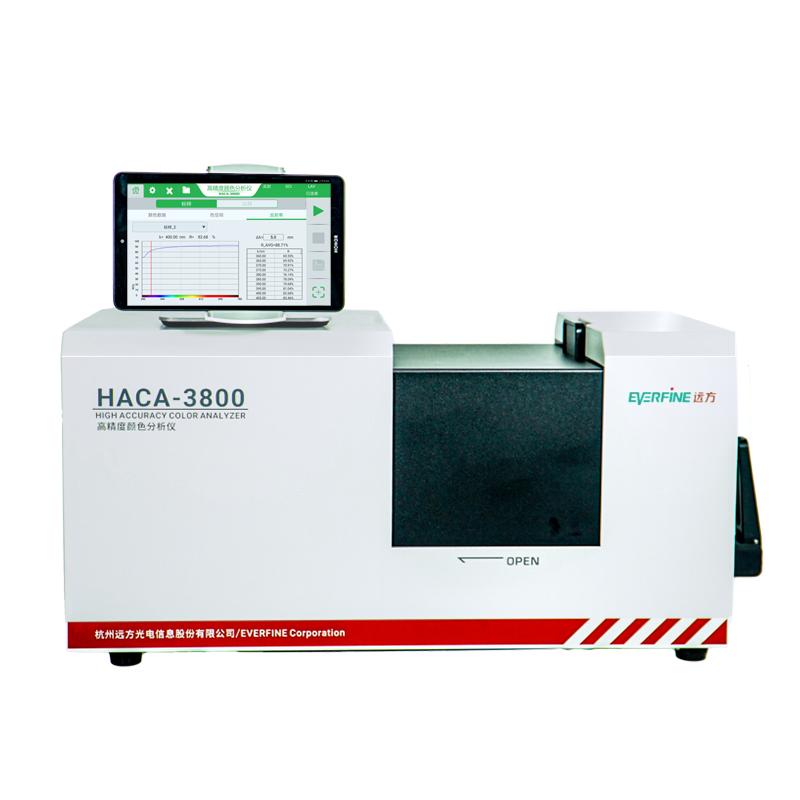

HACA-3800 High Accuracy Color Analyzer is a high-end model of EVERFINE brand, using professional Light spectrum measurement technology and dual beam of light feedback Optical inspection system, suitable for Spinning & weaving, plastic, dyestuff, Coating, consumer electronics and automotive industries. High Accuracy measurement of object Color and various fluorescent colors, taking into account reflection and transmission measurement.
Features
1. Dual beam of light feedback Optical inspection system: Real-time monitoring and compensation of Illuminant fluctuations, reducing measurement errors.
2. Full Light spectrum LED Illuminant: Accurately simulate D65 standard illumination body, daylight matching is good, long life, Stability is good.
3. Built-in preview window: accurately locate the area to be tested.
4. High Color Measurement accuracy: Based on nearly 30 years of Light spectrum instrument research and development experience, Color Measurement accuracy is high, Repeatability is good, and the difference between devices is as high as 0.08.
5. System Sensitivity: Deep gamut measurement Repeatability is excellent, with 10s interval measurement reflectance 1% Blackboard 30 Light spectrum reflectance Standard Deviation is kept within 0.1%.
6. No UV correction required: Accurate measurement can be achieved without UV correction when measuring fluorescent materials.

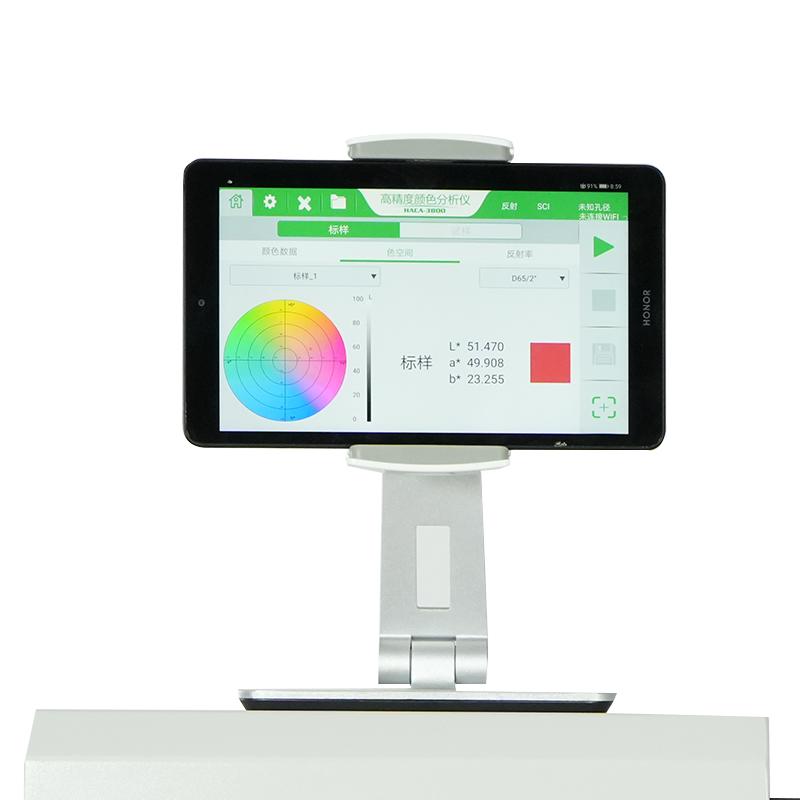

7. Multifunctional management analysis software: including color difference, reflectance, Transmittance, color intensity measurement and statistical analysis functions.
Principle

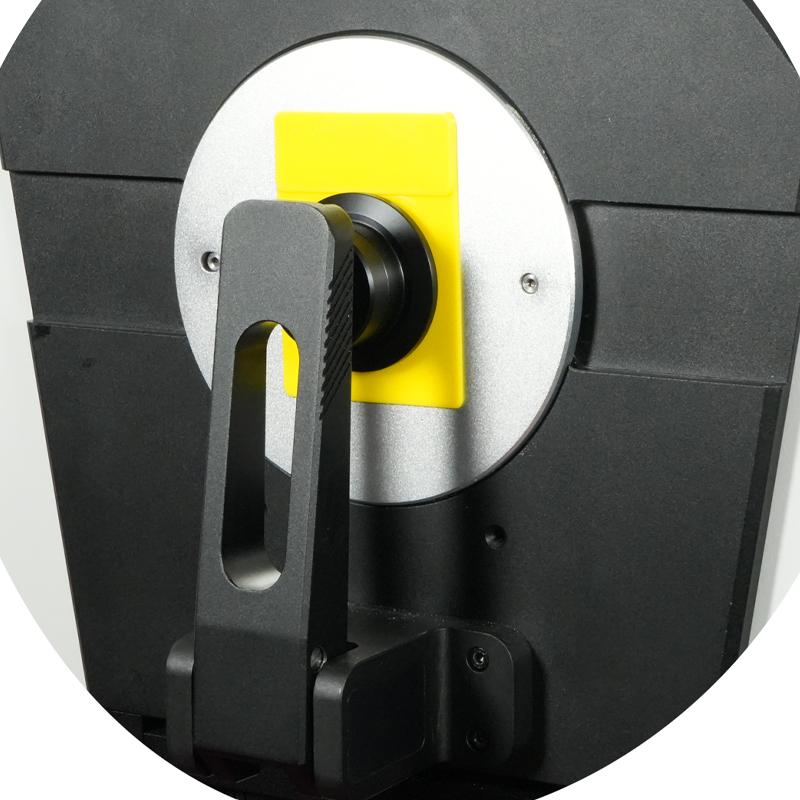

Light spectrum measurement technology and dual beam of light feedback Optical inspection system, reflection measurement by d/8 (diffuse illumination/8 ° reception) Geometry conditions, SCI/SCE synchronous measurement, and d/0 (diffuse illumination/0 ° reception) Geometry conditions for transmission measurement, to achieve High Accuracy Analysis of Object Color and Fluorescence Color.
Applications
Consumer Electronics, Coatings, Spinning & Weaving, Plastics, Dyestuff
Standards
CIE、ISO、ASTM、DIN、JIS、GB/T
Steps
1. Connect the power supply and turn on the device.
2. Use the built-in preview window to precisely locate the area to be tested.
3. Select reflection or transmission Measurement mode.
4. Perform calibrating (optional calibrating device).
5. Perform measurements and read data.
6. Data analysis and statistics using multi-functional management analysis software.
Notice
• Operating ambient temperature range is 10 ℃~ 35 ℃, relative humidity ≤ 80%, no condensation.
Storage ambient temperature range is 0 ℃~ 40 ℃, relative humidity ≤ 80%, no condensation.

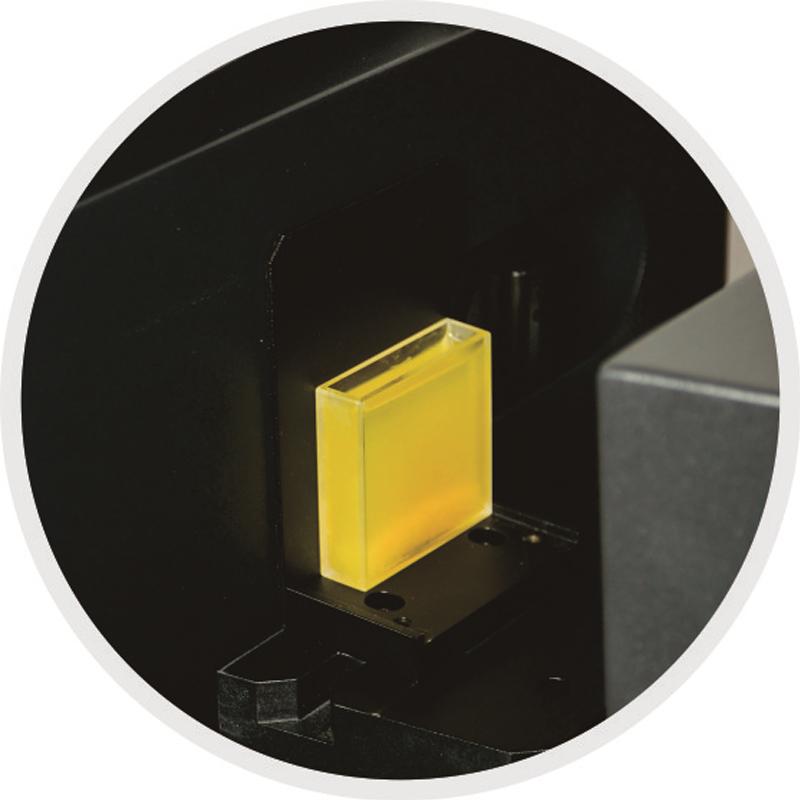

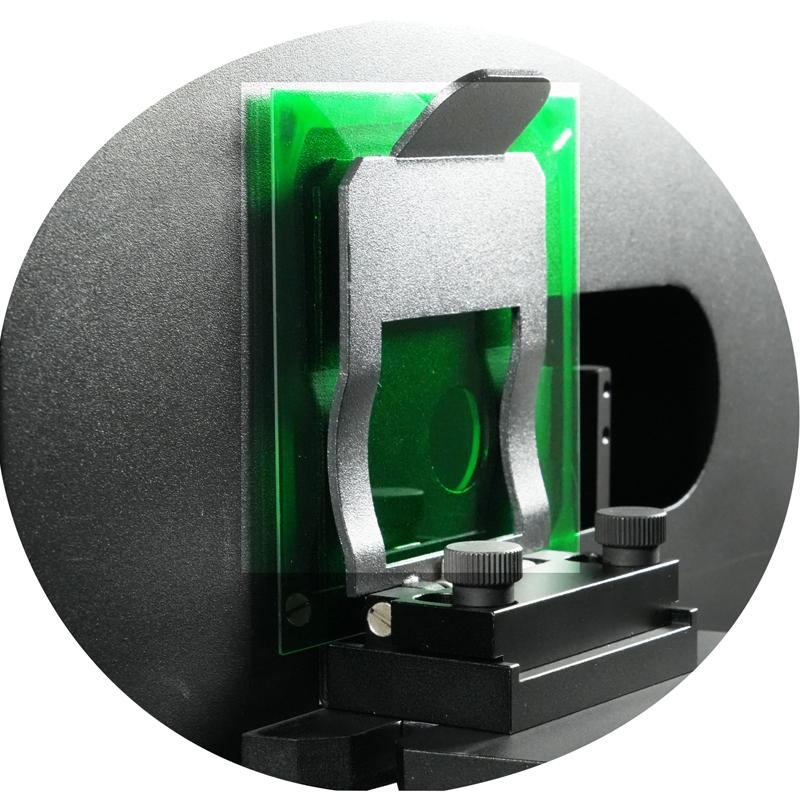

• Optional Accessories include calibrating devices, Cuvettes, transmission sample clamps, etc., to expand functionality.
• Power supply voltage in AC100V~ 240V 50/60Hz range.
