Overview

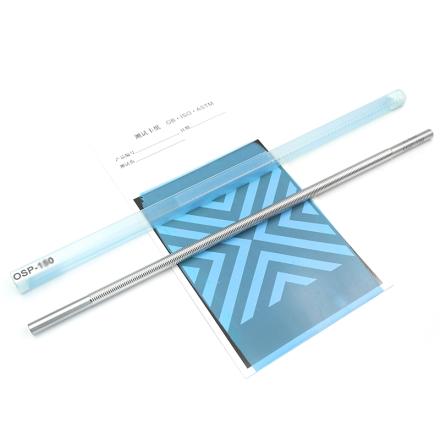

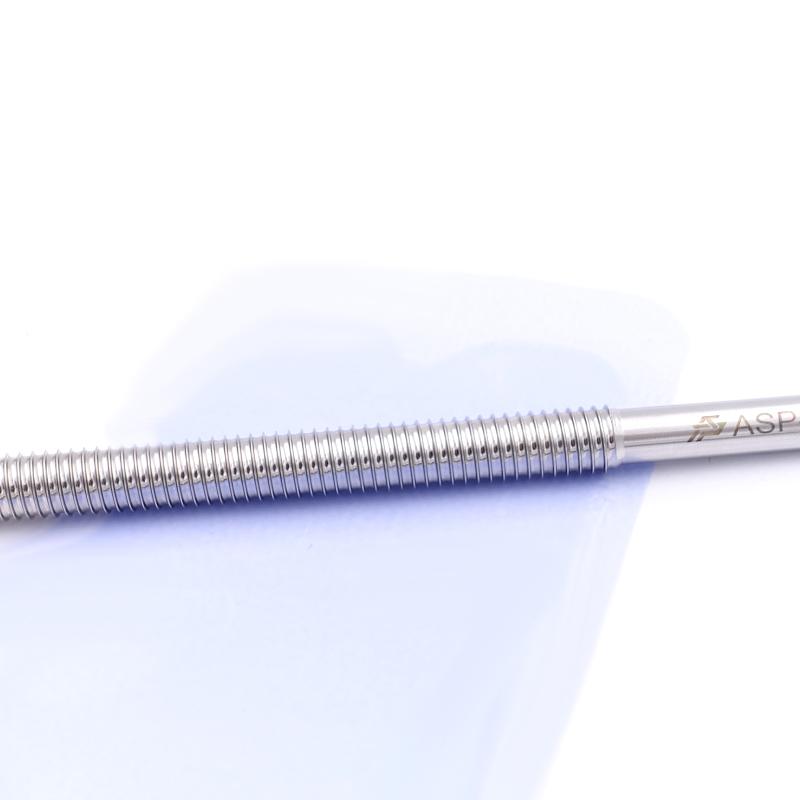

ASP230-L400 Mayer Rods is a mid-to-high-end coating applicator in China. It adopts a formed process and is made of wear-resistant stainless steel, which is easy to clean and has good corrosion resistance. The total length of the rod is 400mm, the effective application width is 300mm, and the hand-held part at both ends is 5cm each. No matching handle is required, and it can be directly hand-scraped. This series of Mayer Rods provides Moulding thickness rod numbers in the range of 180~ 600 microns, which are suitable for the experimental needs of Coating, inks, glue, Resin, New material, etc. that require preparation of thicker films.
Features
1. Using a formed process
2. Wear-resistant stainless steel material
3. Easy to clean and good corrosion resistance
4. No matching handle is required, you can directly hold the scraping
5. Provide 180~ 600 micron range Moulding thickness bar number
Principle
Mayer Rods forms a uniform wet-film on the surface of the substrate through a formed process, and uses the precise structure on the stainless steel rod to control the thickness of the Spreader to realize the standardization of the experimental sample. Spreader preparatory.
Applications
Coatings, inks, Glue, Resin, New materials
Steps
1. Spreader substrate
2. Coating at one end of substrate
3. Handheld Mayer Rods at both ends
4. Coating at a uniform speed
5. Form the desired thickness wet-film
Notice
• Ensure coating applicator is clean and drying before use
• Maintain uniform speed when scraping
• Avoid long-term immersion in corrosion solvents
• Timely cleaning and maintenance after use
• Note that the thickness of the Spreader matches the rod number
