Overview

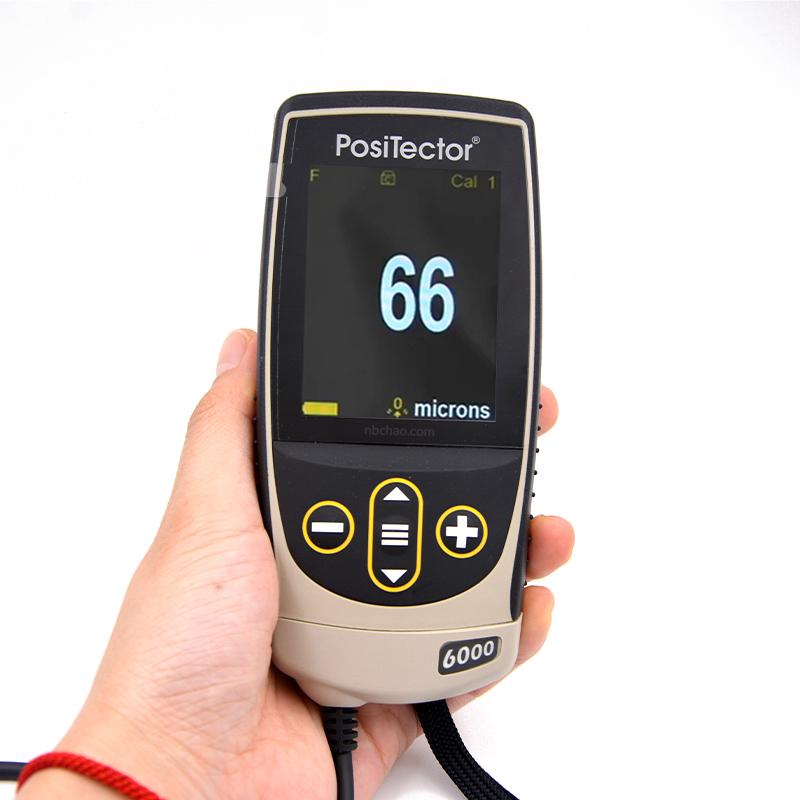

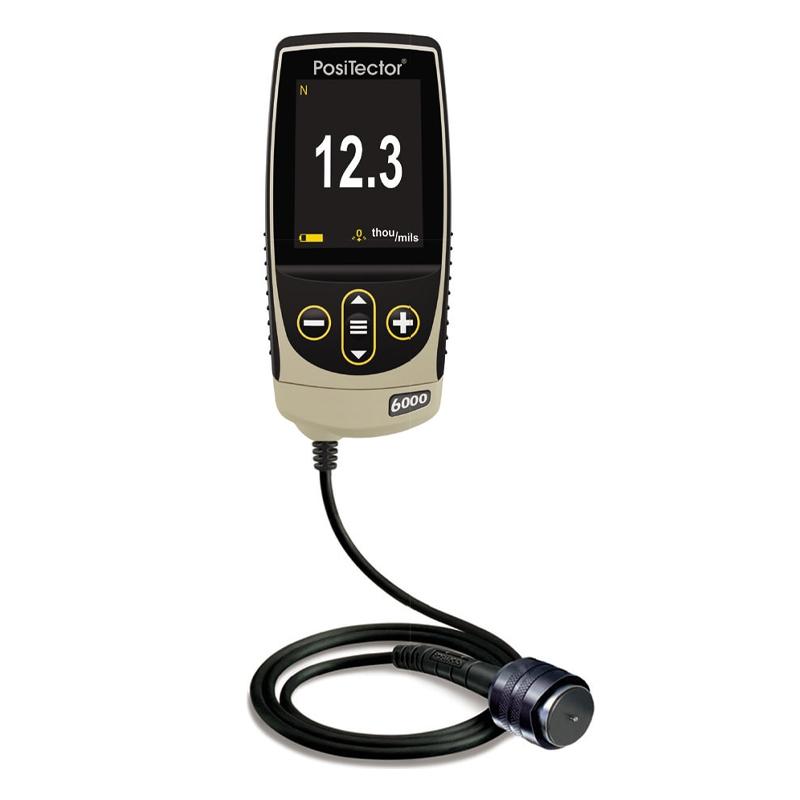

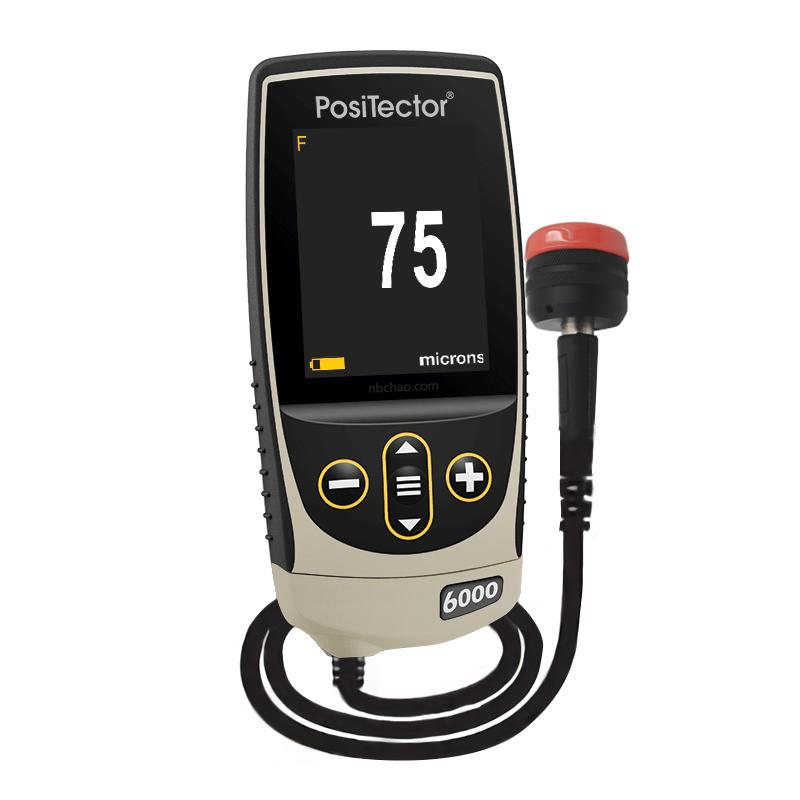

The Defelsko PosiTector 6000 NKS1 Aluminized Thickness Gauge is an eddy Current thickness gauge for nondestructive testing of the thickness of nonconductive coatings on non-ferrous metal substrates, with a thickness measurement range of 0 to 13mm. The instrument is a standard thickness gauge of the Positector6000 series, with 1000 data storage functions, the ability to freely split and replace Probe, menu navigation, easy and convenient operation.
Features
1. Adopt eddy Current Measurement principle, suitable for nonconductive Coating thickness measurement on non-ferrous metal substrates
2. Measurement range of 0~ 13000 μm (0~ 13mm), suitable for thick coating measurement
3. Data storage function with 1000, can save measurement data

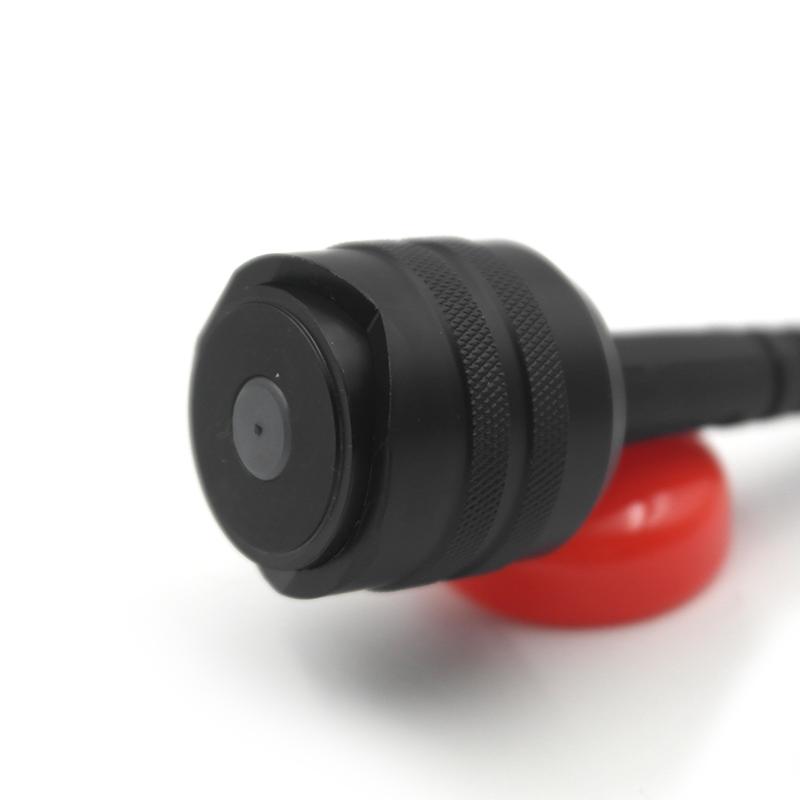

4. Probe can be freely split and replaced, flexible use

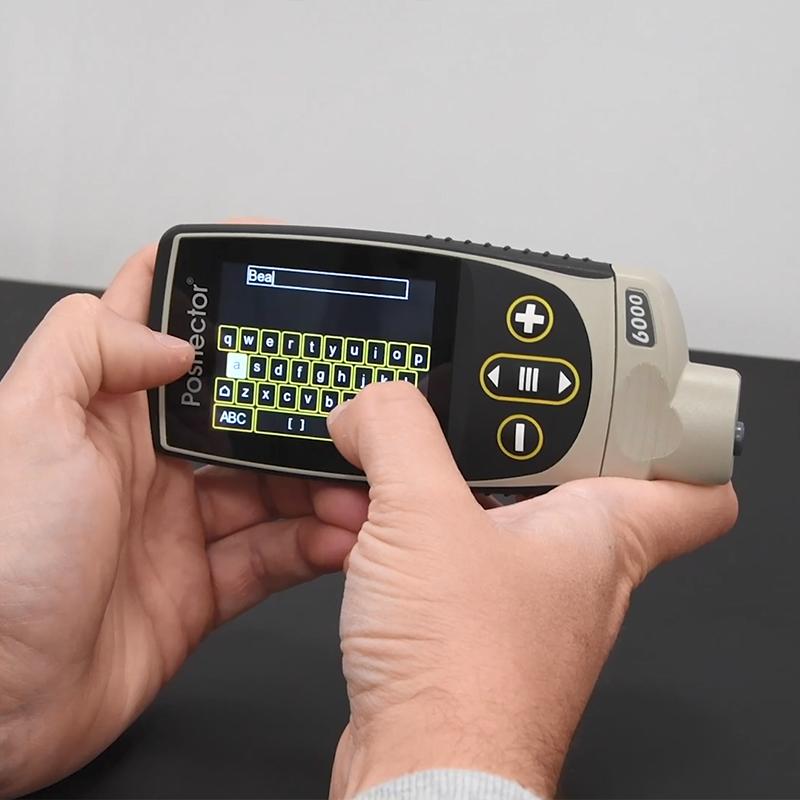

5.2.8-Inch Color Touchscreen, Menu Navigation, Simple Operation
6. Measurement speed, more than 60 readings per minute
7. Protection Rating IP65, adaptable to a variety of working environments
8. Equipped with USB Interface and PosiSoft software suite for easy data transmission and analysis
Principle
The PosiTector 6000 NKS1 uses the eddy Current Measurement principle to generate a high-frequency electromagnetic field through the Probe. When the Probe is close to a non-ferrous metal substrate, an eddy current is generated on the metal surface. The thickness of the nonconductive coating is determined by measuring the change of eddy current.
Applications
Coating thickness measurement, epoxy coating measurement, fire-proof coatings measurement on nonconductive metal substrates
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Power on and select the system language
3. Choose the right Probe according to the measurement needs
4. Probe perpendicular to the coating surface for measurement
5. View measurement results and statistics with Touchscreen
6. Connect to the computer using the USB interface, and perform data transmission and analysis through PosiSoft software
Notice
• Only for nonconductive coating measurements on non-ferrous metal substrates
• Probe clean and pollution-free before measurement
• Probe should be kept perpendicular to the measured surface during measurement
• Regularly calibrated to ensure Measurement accuracy
• Avoid use in extreme temperatures or Humidity environments
• Clean Probe and keep it properly after use
