Overview

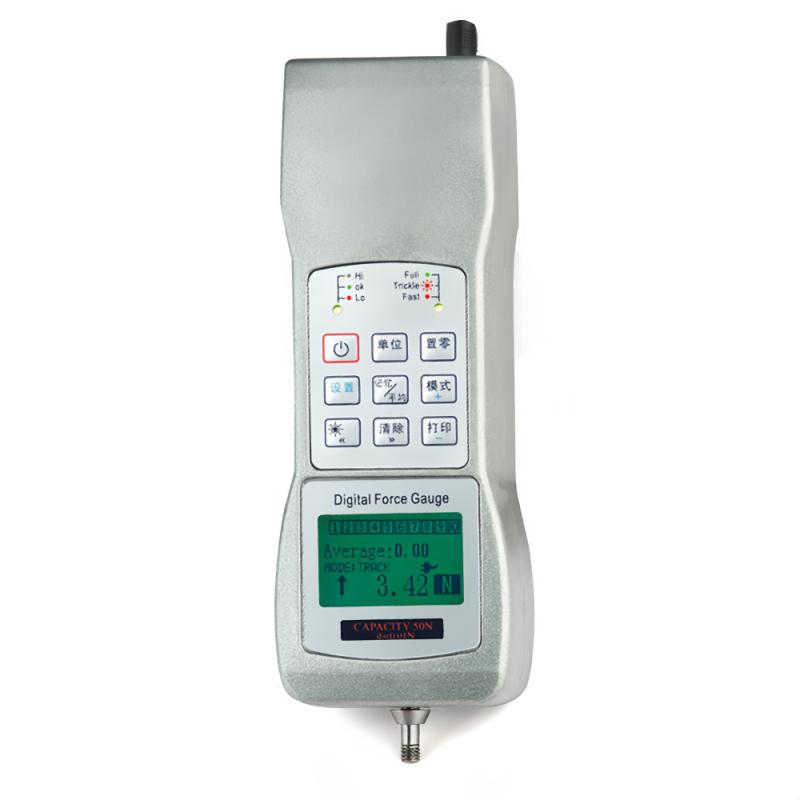

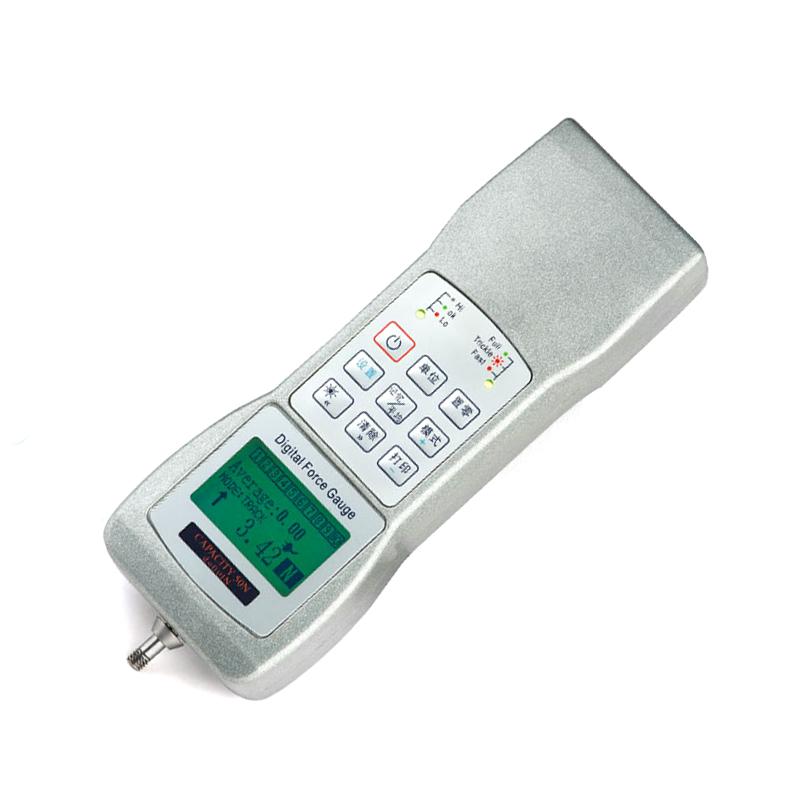

HBO HF-10 digital display tension meter is an upgrade of HF series, with 200 sets of Data storage capacity, support button action force and rebound force test and first peak hold function. The built-in Sensor type Force Gauge has a maximum Measured value of 10N, is small in size, convenient to carry, and adopts electronic Sensor technology. It is suitable for tensile pressure load test, plug-and-plug force test, damage test, etc. It can be combined with machine and fixture to form a small testing machine. It has the advantages of high accuracy, easy operation, high Sensitivity, reliable data, etc. It meets the National Measurement verification regulations of JJG working force gauge.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

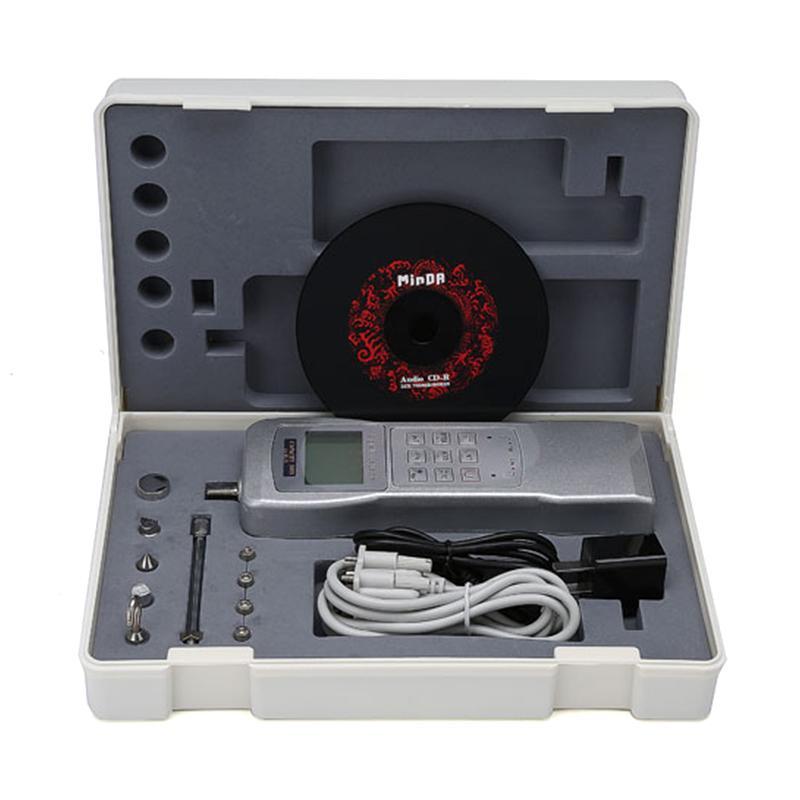

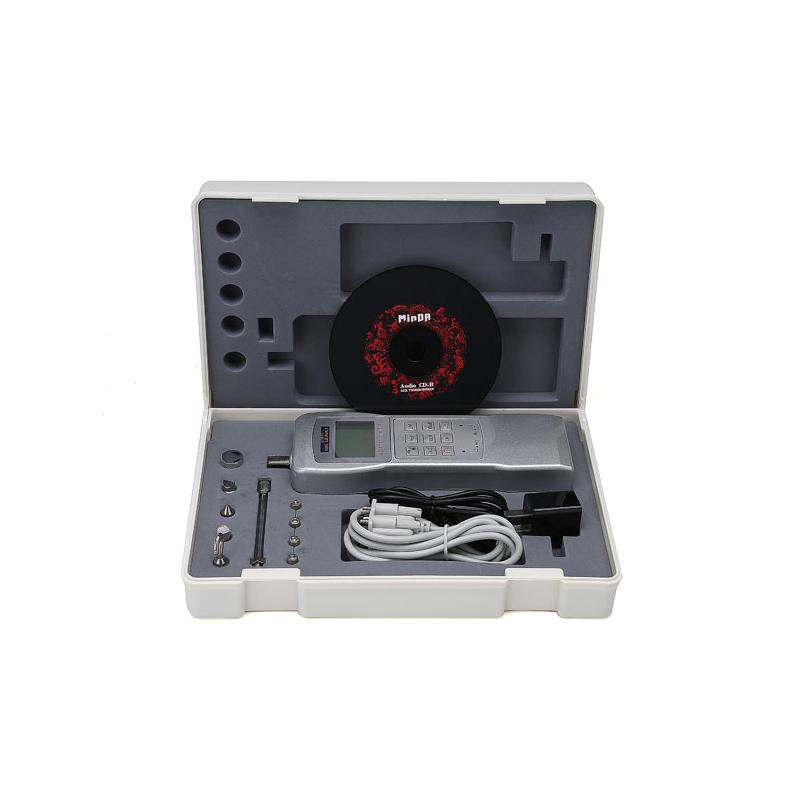

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: According to the qualified range of the preset Standard value, make qualified judgment and batch inspection pass rate
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HF-10 digital display tension meter adopts built-in Sensor technology, which detects the pushing and pulling force load through the electronic Sensor, converts the force value into an electrical signal, and displays it on the point array LCD after processing. It supports a variety of test modes, such as real-time force tracking, peak holding, etc. Data storage, analysis and report generation are realized in combination with the host computer software.
Applications
Push-pull failure test, push-pull load test, insertion force test
Standards
JJG work dynamometer National Measurement verification regulations
Steps

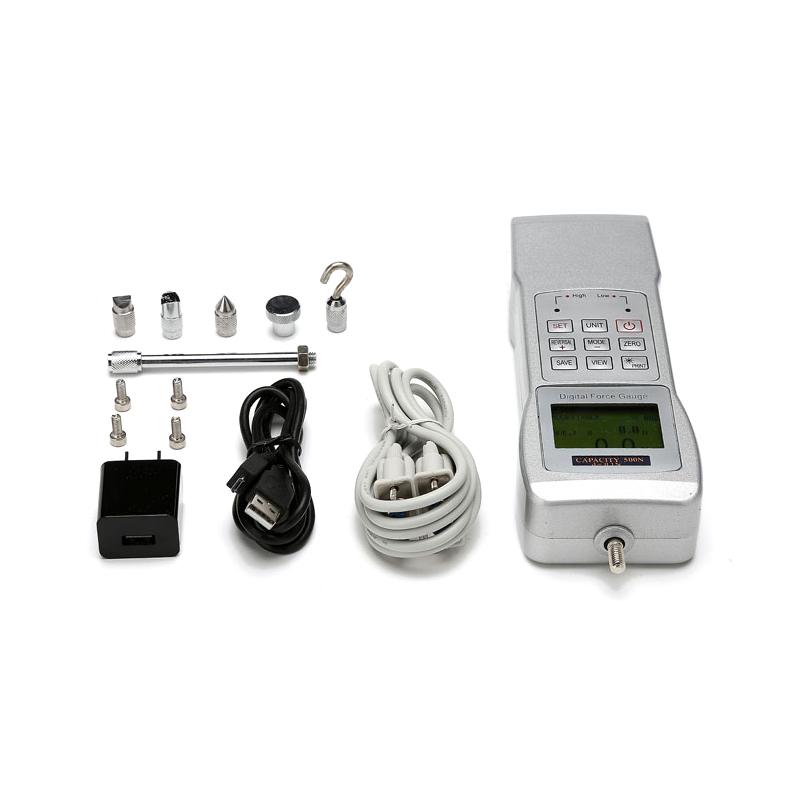

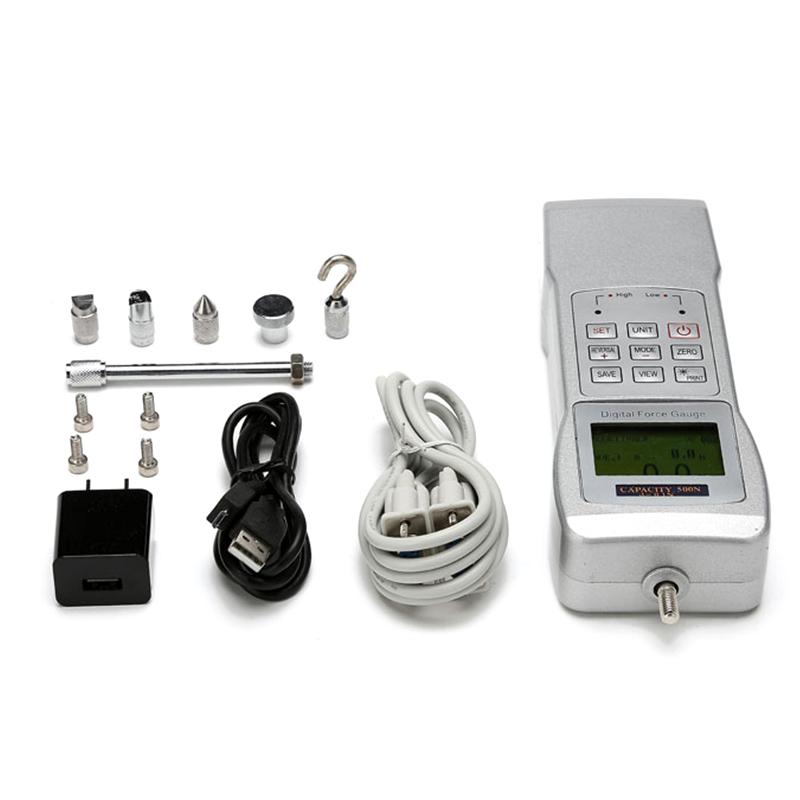

1. Connecting contacts Connecting rods and test fixtures
2. Turn on the power and select the display language and unit
3. Set the test mode (e.g. peak hold or real-time tracking)
4. Perform a push-pull test and observe the display window data
5. Use the host computer software to connect to the computer for Data storage, analysis and export
6. Determine data eligibility according to the preset upper and lower limit comparison values
7. After the test is completed, shut down automatically or manually
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use to prevent damage to the Sensor
• Charge with a dedicated charger to extend Battery life
• Special Toolbox and EVA Shockproof Encasement for Transportation and Storage
