Overview

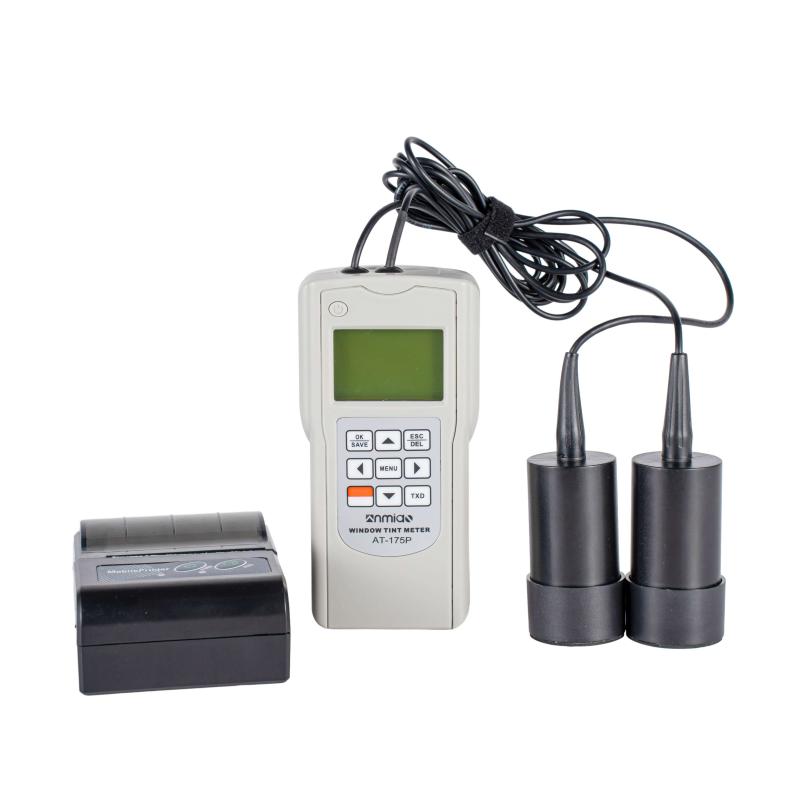

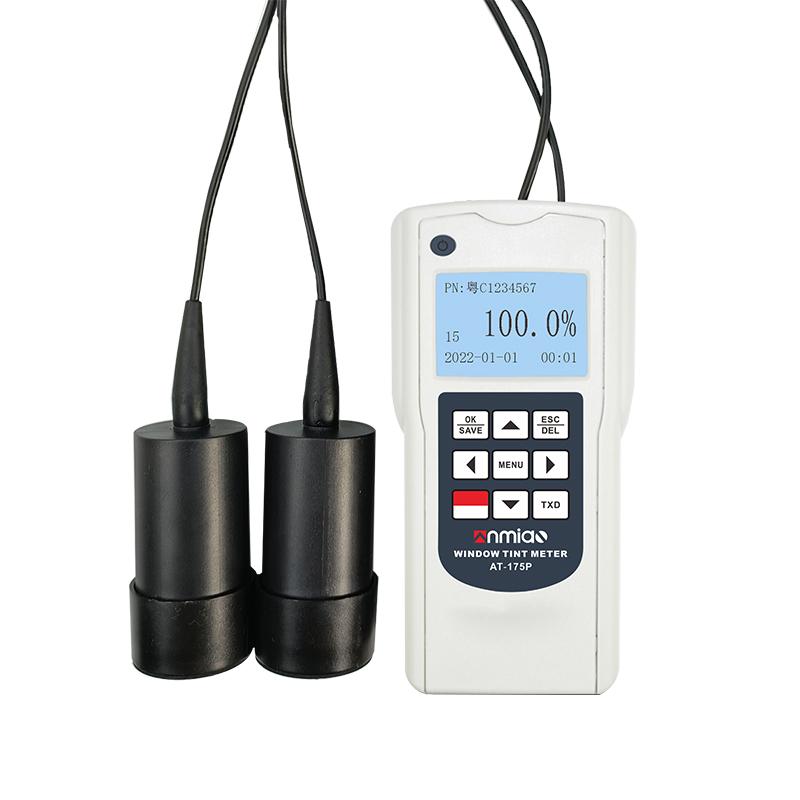

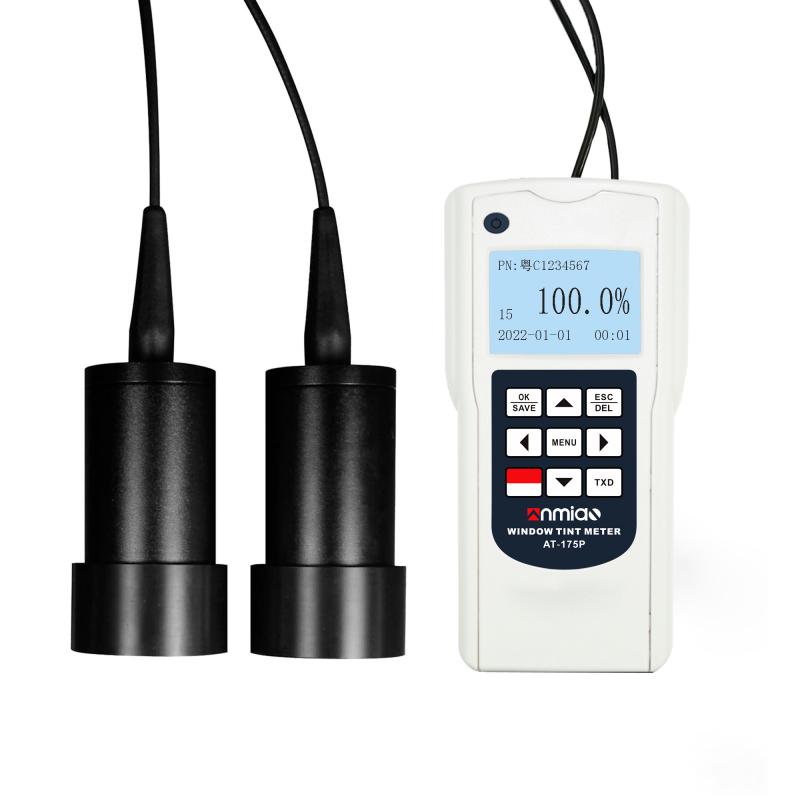

The AMITTARI AT-175 Transmittance meter is a Portable measuring instrument for light transmitance detection of transparent or translucent materials. Measurement range 0.0% -100.0% with 0.1% accuracy, Automatic and Manual calibration is supported for rapid measurement in the field.
Features
1. Simple operation, Measurement speed, Sensitivity, Measurement accuracy
2. Automatic calibration and Manual calibration
3. Large capacity storage, can store 500 measurement data
4. Support automatic shutdown or manual shutdown mode
5. Equipped with LED backlight display
Principle
Transmittance meter calculates the percentage of light transmitance by emitting a beam of light with a wavelength of 380nm-780nm to penetrate the material under test, and the measurement beam of light Transmittance. The instrument adopts the% beam of light transmission method, which is suitable for materials with a thickness of less than 30mm.
Applications
Automobile manufacturing and testing, Glass products, aerospace, protective film, PC, acrylic and other plastic products, other transparent or translucent materials
Steps
1. Automatic calibration or Manual calibration
2. Place the measured object in the Measuring location (volume less than 10mm * 10mm)
3. Start measurement, read light transmitance data
4. Automatic data storage (up to 500 sets)
5. Select automatic or manual shutdown after use
Notice
• Ensure Ambient Temperature in the range of 0 ℃~ 40 ℃ during measurement
• The relative humidity should be less than 85%
• The thickness of the measured object shall not exceed 30mm
• Measurement area size should be less than 10mm * 10mm

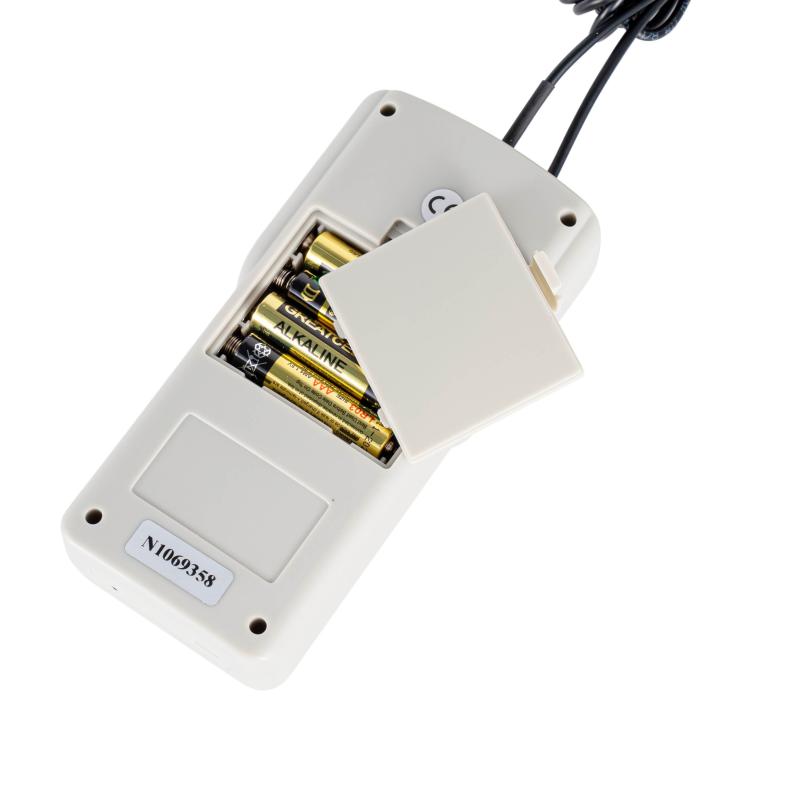

• Regularly check the battery level and use 4 AA batteries for power supply
