RDS 44 #1/4\ "Applicator Rod wire-wound coating Rod 100.6μm film thickness 30cm application width

$ 158.00Ex works

Film thickness 100.6μm, application width 30cm, stainless steel material, wear and corrosion resistance, suitable for high viscosity or high abrasion experiments, high accuracy and durability.

Model

44# 1/4"

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB039255

Service :The delivery and service By NBCLab.Com

Overview

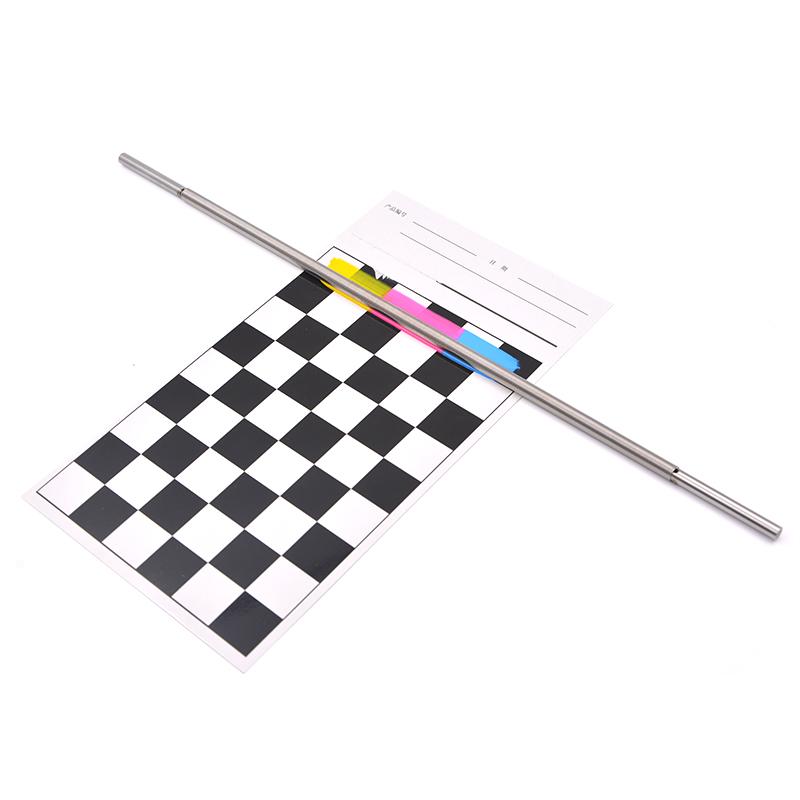

The RDS 44 #1/4 "wire-wound coating rod is a Spreader tool with a film thickness of 100.6μm and an application width of 30cm. It offers both wire-wound and molding processes. The molded coating rod is a formed design with a film scale accuracy of up to 0.1 microns, which is particularly suitable for industrial users with high accuracy requirements. The product is made of stainless steel and has wear and corrosion resistance, especially suitable for high viscosity or high abrasion experiments.

Features

1. Provide wide-wound and molding process options 2. Molded coating rod film scale accuracy of 0.1 micron 3. Made of stainless steel, wear-resistant and corrosion-resistant 4. Suitable for high viscosity or high abrasion experimental environment 5. The application width is 300mm, and the operation range is wide

Principle

The wire-wound coating rod forms a film gap of a specific thickness by wrapping the steel wire on the rod body. When the rod body moves on the surface of the substrate, the Coating forms a wet-film of the specified thickness through the uniform gap Spreader. The molded coating rod uses an extrusion process to achieve higher accuracy Spreader effect through the precision-machined film gap.

Specifications

Production process: wire-wound, wet film thickness: 100.6μm, diameter: 6.35mm, total length: 400mm, application width: 300mm, hand width: 50 + 50mm, material: stainless steel, wire diameter: 1.12mm

Production process
wire-wound
wet film thickness
100.6μm
rod diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
wire diameter
1.12mm
