RDS 120G #3/8 Gap Applicator Rod 3/8 wet film thickness 274.3μm application width 300mm

Name: RDS 120G #3/8 Gap Applicator Rod 3/8 wet film thickness 274.3μm application width 300mm
Brand: RDS
SKU: NB039480
Price: 176.0 USD
Availability: PreOrder

$ 176.00Ex works

Using gap wire-wound design, wet film thickness 274.3μm, application width 300mm, reduce flow interruption through smaller wire, promote coating complete wetting, suitable for high viscosity fluids.

Model

120G# 3/8"

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB039480

Service :The delivery and service By NBCLab.Com

Overview

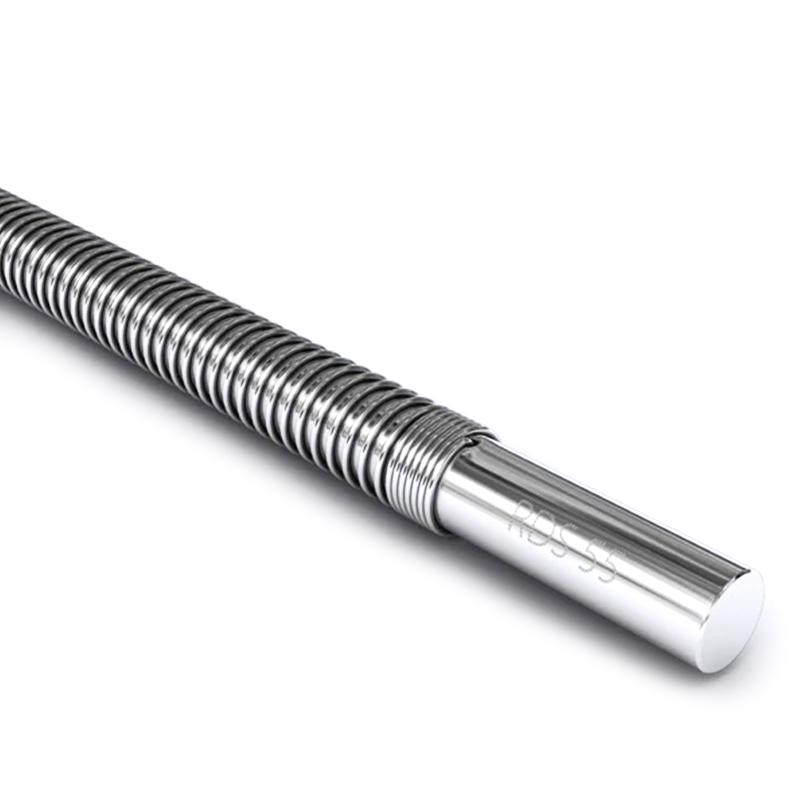

The RDS 120G #3/8 "interstitial Applicator rod is a professional Spreader tool based on the Mayer Rod film principle for film preparation of high viscosity fluids. The product is made of stainless steel with a diameter of 9.52mm, a total length of 400mm, an application width of 300mm, and a wet film thickness of 274.3μm. Efficient Spreader is achieved through the interstitial wire-wound production process.

Features

1. Adopt gap wire-wound design to reduce high viscosity fluid clogging 2. Wide and shallow cavity structure promotes uniform flow of thick coatings 3. Smaller wire reduces coating flow interruption and improves wetting effect 4. Stainless Steel Ensures Durability and Stability 5. Precise wet film thickness control (274.3μm)

Principle

Following the principle of Mayer Rod film, a wide and shallow cavity structure is formed by winding smaller wires at spacing. For high viscosity fluids, this design reduces clogging and eliminates scratches, allowing thicker coatings to flow better. Smaller wires create smaller interruptions in the coating flow, allowing the coating to wetting the substrate surface more completely.

Steps

1. Prepare Spreader Substrate and High Viscosity Fluid Samples 2. Applicator rod flat on the starting end of the substrate 3. Spreader the Applicator rod at uniform speed 4. Check whether the uniformity and thickness of the coating meet the requirements 5. Clean Applicator rod for next use

Notice

• Applicator rod surface clean and free of contamination before use • Maintain uniform speed during Spreader • Suitable for high viscosity fluids, not recommended for low viscosity materials • Clean in time after use to prevent fluid curing blockage • Avoid collision or bending to maintain Applicator rod accuracy

Production process
interstitial wire-wound
wet film thickness
274.3 μm
rod diameter
9.52mm
Total length
400mm
application width
300mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
