Overview

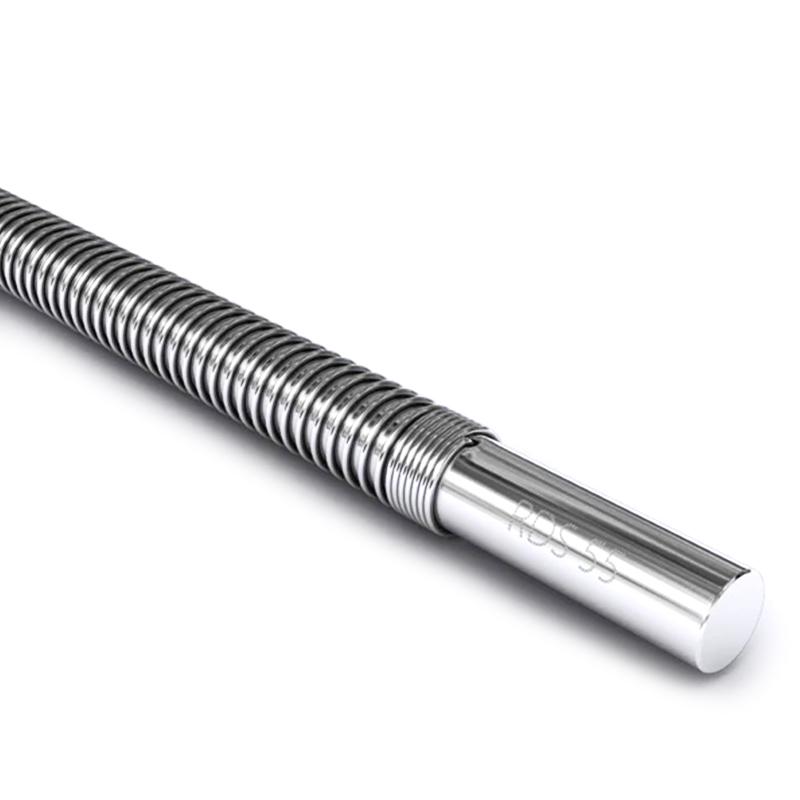

RDS 150G #3/8 "Gapped Applicator rod is a Spreader tool designed for high viscosity fluids, made of stainless steel, 9.52mm diameter, 400mm total length, application width 300mm, wet film thickness 342.9μm.
Features
1. Wire-wound production process to reduce fluid clogging and scratches
2. Wide and shallow cavity design to promote uniform flow of thick coatings
3. Small wire winding minimizes coating flow interruption
4. Stainless steel, durable and easy to clean
5. Optimize coating wetting performance and improve Spreader mass
Principle
Following the principle of Mayer Rod film, a wide shallow cavity is formed by wrapping smaller wires at spacing, allowing high viscosity fluids to flow better when the coating is thick. Smaller wires create smaller interruptions in the coating flow, thus promoting the coating to completely wetting the surface.
Applications
High Viscosity Fluid Spreader, Lab coating prepative, Industrial film process
Steps
1. Prepare high viscosity fluid samples
2. Applicator rod placed on the substrate surface
3. Apply pressure evenly and pull Applicator rod smoothly
4. Clean Applicator rod after Spreader
Notice
• Applicator rod surface clean before use
• Only for High Viscosity Fluid Spreaders
• Maintain uniform pulling speed and pressure during operation
• Clean in time after use to prevent blockage
• Avoid scratching with hard objects to protect the wire structure
