RDS 160G #3/8 "Gap Applicator Rod 365.8μm wet film thickness Stainless steel material

Name: RDS 160G #3/8 "Gap Applicator Rod 365.8μm wet film thickness Stainless steel material
Brand: RDS
SKU: NB039488
Price: 176.0 USD
Availability: PreOrder

$ 176.00Ex works

The gap wide-wound design is adopted, and the wet film thickness reaches 365.8 μm, which reduces fluid blockage and eliminates scratches. The wide and shallow cavity promotes the flow of thick coatings and improves the wetting effect.

Model

160G# 3/8"

Get Quote

Category : Coating Rod

Brand : RDS

SKU : NB039488

Service :The delivery and service By NBCLab.Com

Overview

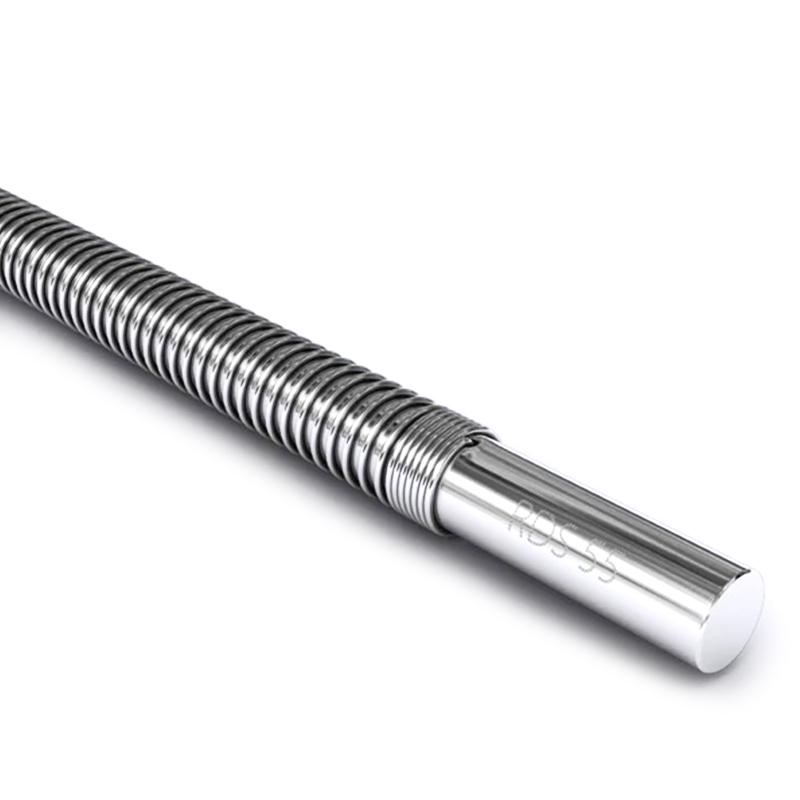

The RDS 160G #3/8 "interstitial Applicator rod is a professional Spreader tool based on the Mayer Rod film principle for film preparation of high viscosity fluids. The product is made of stainless steel, with a diameter of 9.52mm, a total length of 400mm, an application width of 300mm, and a wet film thickness of 365.8μm. Efficient Spreader is achieved through the interstitial wire-wound production process.

Features

1. Adopt gap wire-wound design to reduce high viscosity fluid blockage and eliminate scratches 2. Wide and shallow cavity structure promotes thick coating flow and enhances Spreader uniformity 3. Smaller wire reduces coating flow interruption and enhances wetting effect 4. Stainless Steel Ensures Durability and Stability Precise wet film thickness control (365.8μm)

Principle

Following the principle of Mayer Rod film, a wide shallow cavity structure is formed by winding smaller wires at spacing. For high viscosity fluids, this design reduces clogging and eliminates scratches, allowing the thick coating to flow better. Smaller wires create smaller interruptions in the coating flow, allowing the coating to wetting the substrate surface more completely.

Steps

1. Prepare high viscosity fluid samples for Spreader 2. Applicator rod placed on the substrate surface in place 3. Spreader direction evenly pull Applicator rod 4. Clean Applicator rod after Spreader for next use

Notice

• Applicator rod surface clean and free of contamination before use • Spreader applications for high viscosity fluids only • Maintain uniform pulling speed and force during operation • Clean in time after use to prevent fluid residual curing • Avoid violent collisions or bending to maintain Applicator rod accuracy

Production process
interstitial wire-wound
wet film thickness
365.8μm
rod diameter
9.52mm
Total length
400mm
application width
300mm
material
stainless steel

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
