Overview

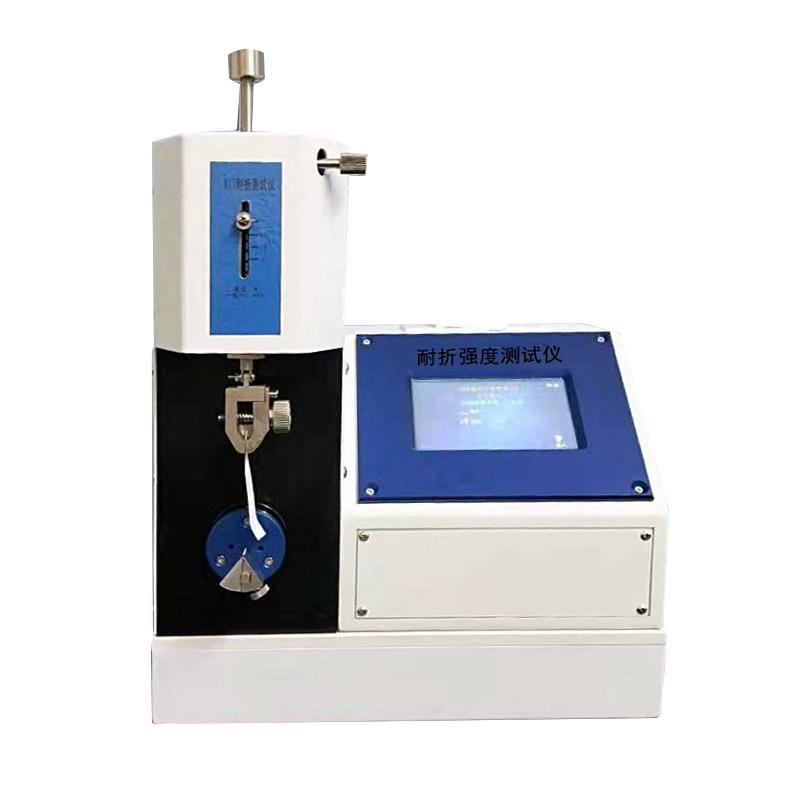

LD-NZ-02 folding strength tester is a special instrument of JINGHUAYIQI brand, which is used to determine the folding fatigue strength of paper, Cardboard and Miscellaneous sheet materials. The instrument adopts the international MIT folding resistance Working Principle design, with photoelectric control technology to automatically return the folding chuck, integrated powerful data processing function, can store and display the test data of a single sample and the same group of samples, suitable for papermaking, Encasement, scientific research and product mass supervision and inspection industries.
Features
1. Microcomputer control technology, open structure, simple and convenient operation, safe and reliable
2. Automatic measurement, statistics, printing test results, and data saving function
3. The function of automatically returning to zero after the test is completed
4. Modern design concept of opto-mechatronics, compact structure, beautiful appearance and convenient maintenance
5. Real-time display of the number of tests and folding resistance (logarithmic)
6. The angle of the imported stepper motor is accurately adjustable and the speed is adjustable to meet different test standards
Principle
The instrument is based on the international MIT type folding resistant Working Principle, using photoelectric control technology implementation folding chuck after each experiment automatically return, through precision motor control to ensure accurate positioning, combined with microcomputer system for data processing and storage.
Standards
ISO 5626 "Determination of Folding Resistance of Paper", GB 2679.5 "Determination of Folding Resistance of Paper and Cardboard"
Steps
1. Prepare the specimen and install it on the instrument
2. Set test parameters such as folding angle and speed through Touchscreen
3. Start the test, and the instrument automatically folds
4. Real-time display of folding times and folding resistance during the test process
5. After the test is completed, the instrument is automatically reset, and the data is automatically saved and can be printed out
6. View statistical results through the display, including MAX Maximum, MIN Minimum, Average, and Coefficient of Variation
