Overview

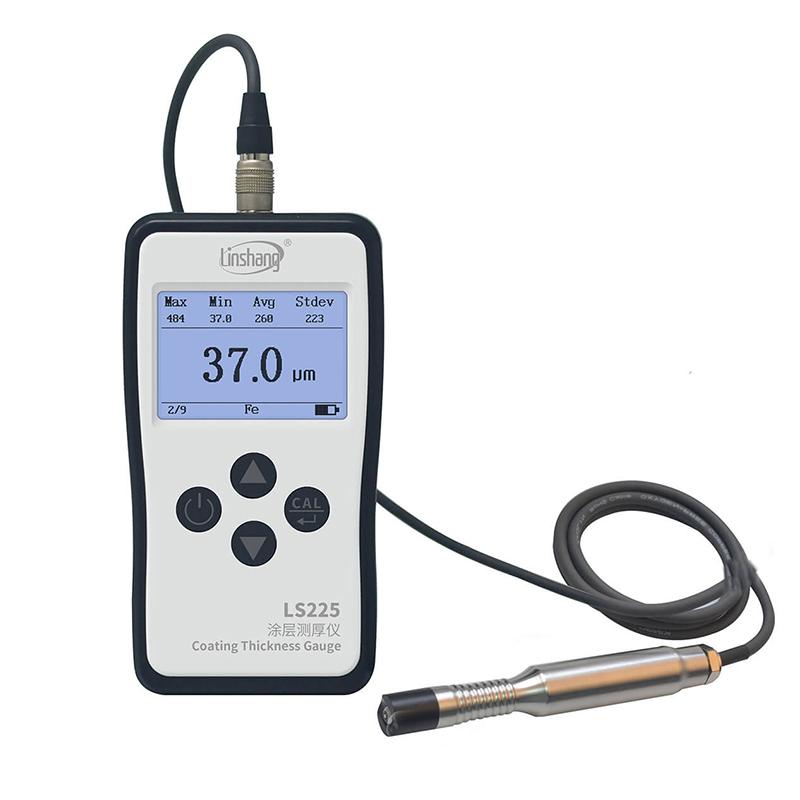

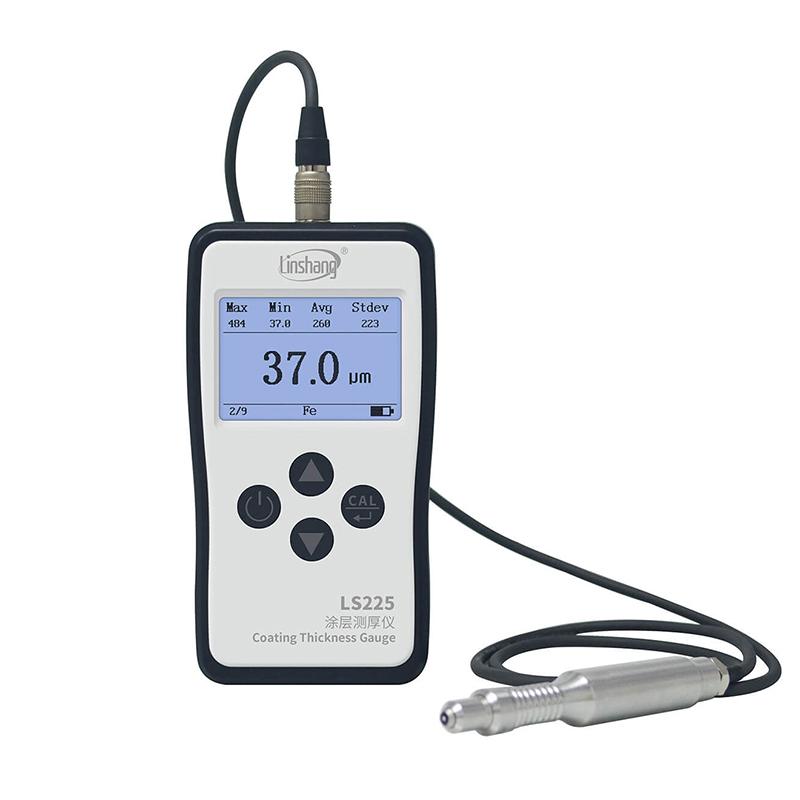

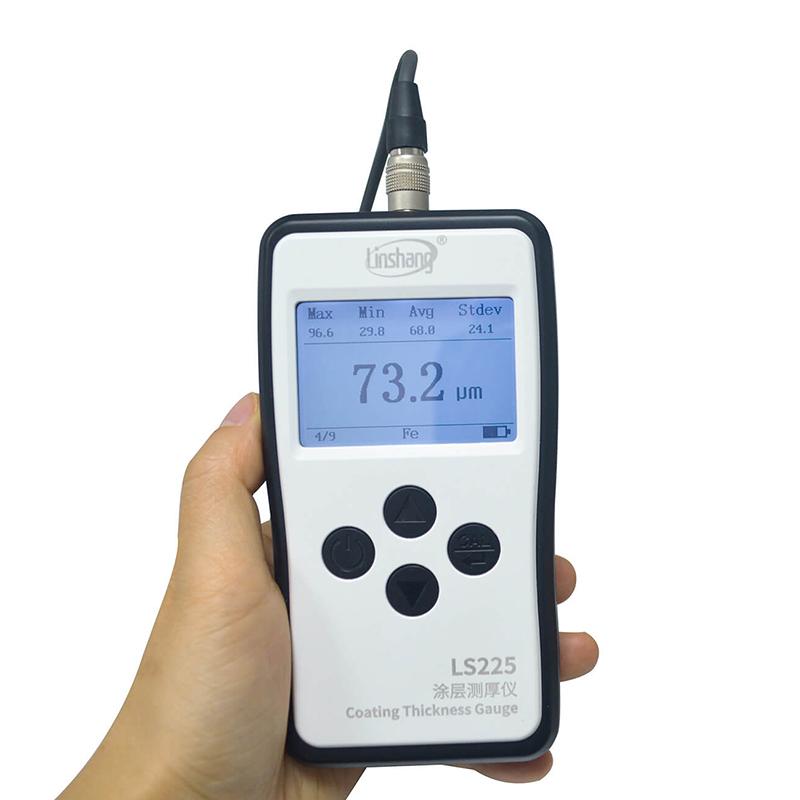

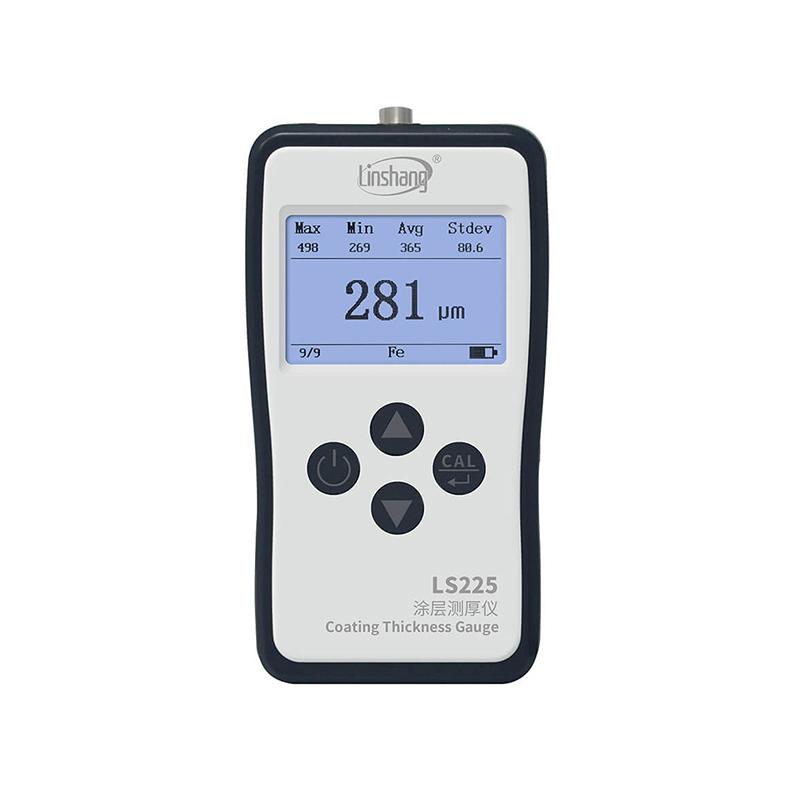

LINSHANG LS225 Coating thickness gauge host is a professional measurement equipment, supports zero adjustment and multi-point Adjustment, equipped with a variety of standard sheets, can be widely used in metal processing, Hardware and other industries.
Features
1. Support zero adjustment and multi-point calibrating (up to 5 points), equipped with 7 standard sheets, can correct Linear dispersion to improve measurement accuracy
2. With data statistics function, store up to 9 Measured values, automatically calculate maximum, minimum, average and variance values

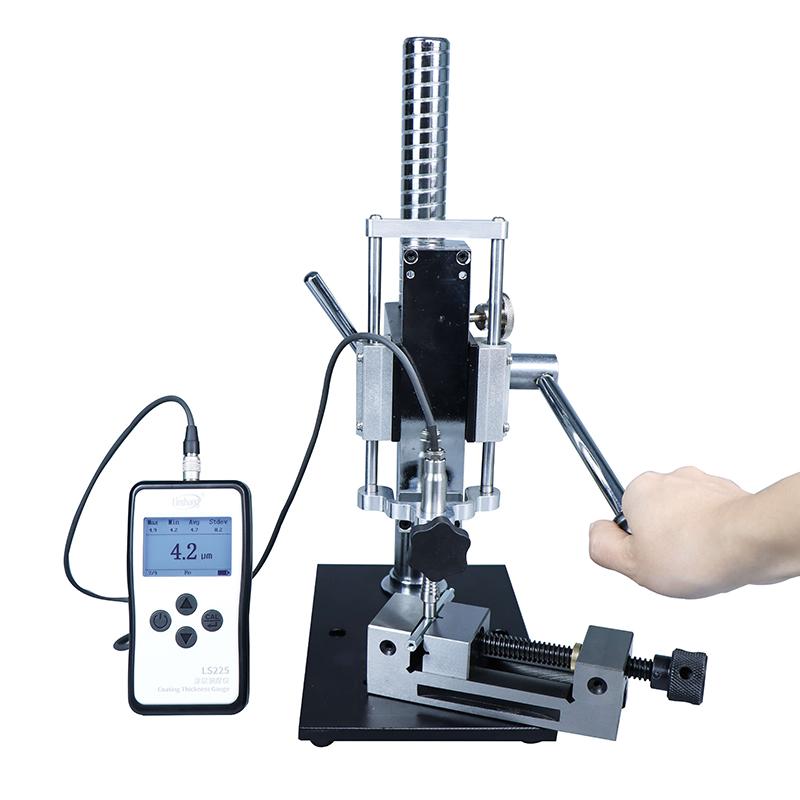

3. Optional special test fixture, convenient measurement and elimination of human error
4. Support Chinese and English interface and μm/mil Unit switch, can set 1-9 minutes automatic shutdown
Principle
The thickness gauge uses magnetic method and eddy Current principle to determine the Coating thickness by measuring the physical property difference between the substrate and the cover layer, and realizes fast nondestructive measurement.
Applications
Metal Processing Industry, Hardware, Aviation, Building Materials, Machinery, Chemical Industry, Light Industry
Standards
GB/T 4956-2003、DIN EN ISO 2808、JJG-818-2005
Steps

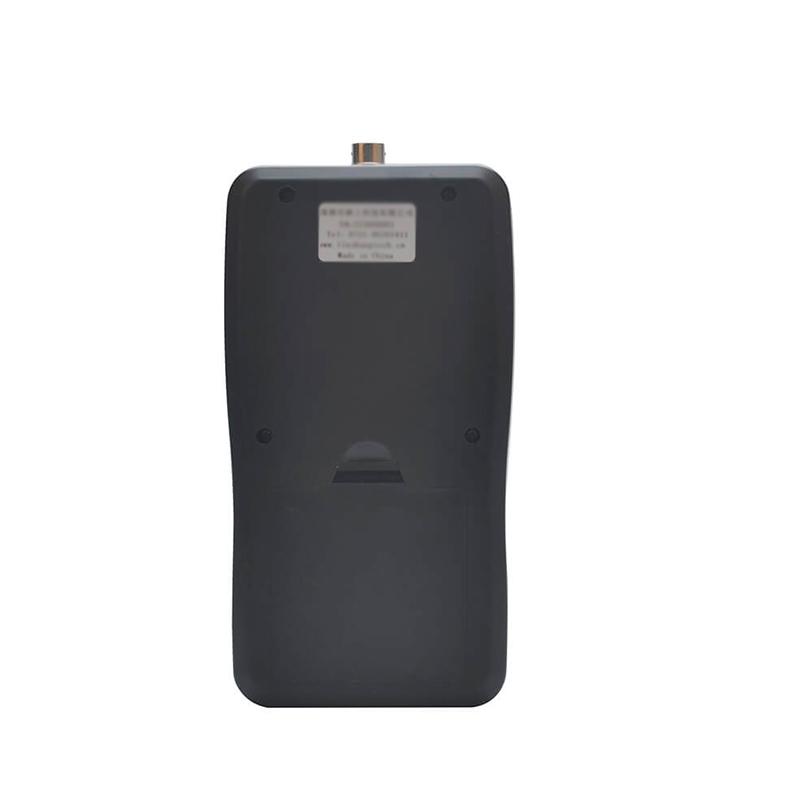

1. Install 4 1.5V AAA alkaline batteries
2. Calibration method according to measurement requirements (zero or multi-point calibrating)
3. Use standard sheets or actual workpieces to calibrate
4. Start measurement and view data
5. Optional test fixture for more accurate measurement
6. The device supports automatic shutdown without operation for 1-9 minutes
Notice
• Operating temperature range is 0 ℃ -50 ℃, storage temperature is -20~ 60 ℃
• Special test fixture is optional and needs to be purchased separately
• The measurement data is for reference only and does not represent all application scenarios
• Make sure the battery is fully charged before use
• When calibrating, it should be based on the standard sheet or the actual workpiece
