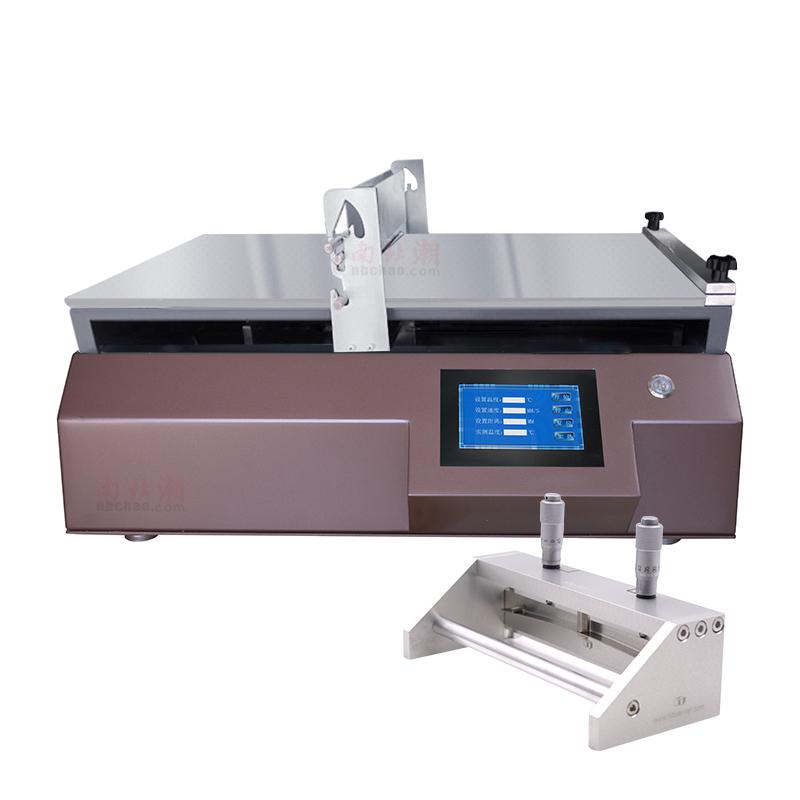

China TBJ-GDO-GCXB Automatic Film Applicator Metering Rod & doctor blade Spreader accuracy +/- 10μm

Name: China TBJ-GDO-GCXB Automatic Film Applicator Metering Rod & doctor blade Spreader accuracy +/- 10μm
Brand: zy
SKU: NB039858
Price: 2511.0 USD
Availability: InStock

$ 2511.00Ex works

Using wire Rod and scraper dual Spreader mode, Spreader accuracy of +/- 10μm, Film thickness range of 0-5000μm adjustable, support vacuum adsorption fixed substrate, touch screen control to achieve stepless variable speed operation.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB039858

Service :The delivery and service By NBCLab.Com

Overview

TBJ-GDO-GCXB Automatic Film Applicator is a small Spreader test equipment for China experiments, using imported accessories, with excellent cost performance. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of Spreader, solves the problem of artificial film inconsistency, and significantly improves film reproducibility. It is widely used in multinational R & D institutions, universities and scientific research institutions.

Features

1. Using imported accessories, excellent cost performance 2. Spreader speed and pressure precise control to ensure film uniformity 3. Wire rod + scraper double Spreader mode to meet different needs 4. Spreader Film thickness range 0~ 5000μm adjustable, Wire Spreader Film thickness 1~ 571.5μm 5. Spreader speed 5~ 200mm/s, support customization 6. Vacuum adsorption substrate fixed to ensure Spreader Stability 7. Touch screen control, easy to operate 8. Optional accessories and customization

Principle

Automatic Film Applicator achieves accurate Spreader by controlling the Spreader speed and the stable pressure applied to the film applicator. The substrate is fixed by vacuum adsorption, the Spreader rate is controlled by stepless speed change, and the precise wet-film is Spreader on different substrates by combining the wire rod or scraper Spreader method, which greatly improves the reproducibility and conformity of the film.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader test

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Spreader mode
Wire rod + adjustable scraper
Scraper Type
Split scraper
Spreader accuracy
±10μm
Spreader Film thickness Range
0~5000μm
Scraper material
aluminum alloy
Scraper Size
214*76*100mm
Scraper weight
500g
Spreader Film thickness Range
1-571.5 μm (Spreader Film thickness determined according to rod model)
Spreader accuracy
±0.001mm
Spreader rate
5-200mm/s (< 5mm/s can be customized)
Coating Size
300 * 400Mm (Miscellaneous Size can be customized)
Spreader Width
200Mm (optional 300mm)
Vacuum adsorption Size
300 * 400Mm (can be customized)
vacuum aperture
Φ1.2mm
Vacuum hole spacing
20*20mm
Vacuumpump Size
380*180*280mm
Substrate clamping method
Vacuum adsorption
Control mode
Touch screen control
Power supply Voltage
220V 50HZ
Dimension
630*410*520mm
weight
65kg
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Optional accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
