Overview

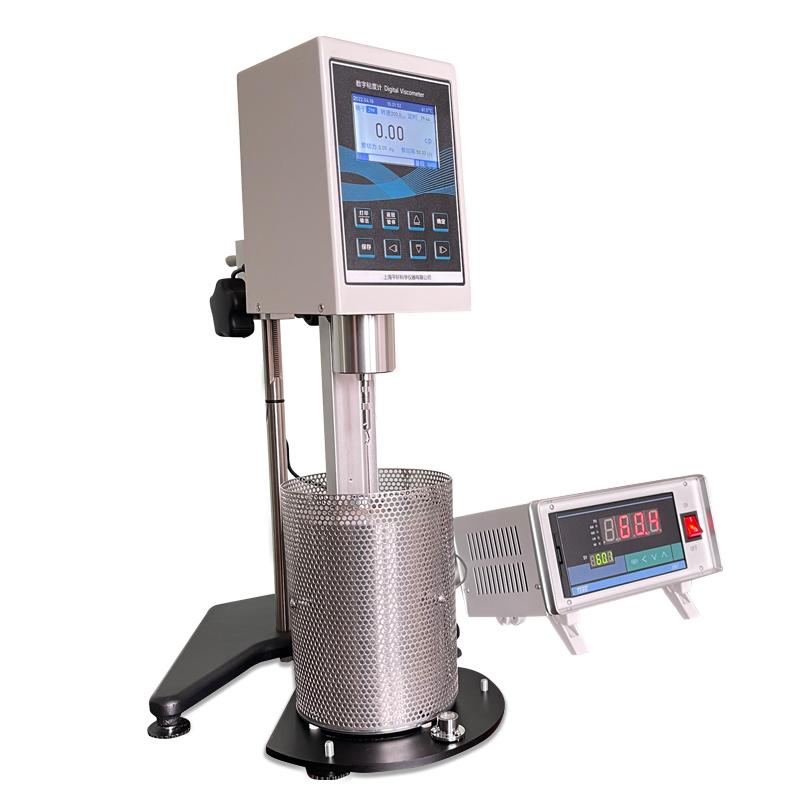

The PINGXUAN HATV-2H Viscometer is a precision instrument with a high definition color screen and a high performance processor for easy operation and rich display information. The all metal housing design effectively prevents interference and supports computer connection.
Features
1. The high definition color screen operation interface is concise and clear, and new users are easy to use
2. All-metal shell has strong anti-interference, better than plastic parts
3. Optional PT100 High Accuracy Temperature Probe
4. High-speed chip processor for faster data processing
5. High-strength small shaft design is durable
6. With 232 printing interface, it can be connected to a computer or micro printer to print data
7. Timing function automatically completes non-newtonian fluid measurement to ensure data conformity
8. Real-time display of viscosity Linear dispersion, viscosity, temperature and other information
9. The instrument has a data storage function for easy access and comparison
Principle
The Brinell Viscometer measures viscosity by the resistance of the rotor as it swirls/spins in the sample, and uses stepless speed control to monitor parameters such as viscosity, shear rate, and shear stress in real time.
Applications
Inks, Asphalt, Glue, Latex, Solvent Adhesives, paints Coatings, Petroleum, Cosmetics, Milk Products, Products, Juices, Pastes
Steps
1. Connect the power adapter and turn it on.
2. Choose the right rotor and speed
3. Load the sample into a sample cup (10-20ml).
4. Start measurement, the instrument automatically collects data
5. View real-time data through the color screen or connect the printer output results
6. Use the storage function to save measurement data
Notice
• Make sure that the input voltage of the power adapter meets the requirements before use (100~ 240V 50~ 60Hz)
• Select the appropriate rotor and speed range according to the sample characteristics
• Temperature range (RT +~ 300 ℃) when measuring high temperature samples
• Regularly calibrate instruments to ensure Measurement accuracy
• Optional special Thermostatic bath, adapter and other accessories to expand the function
