Overview

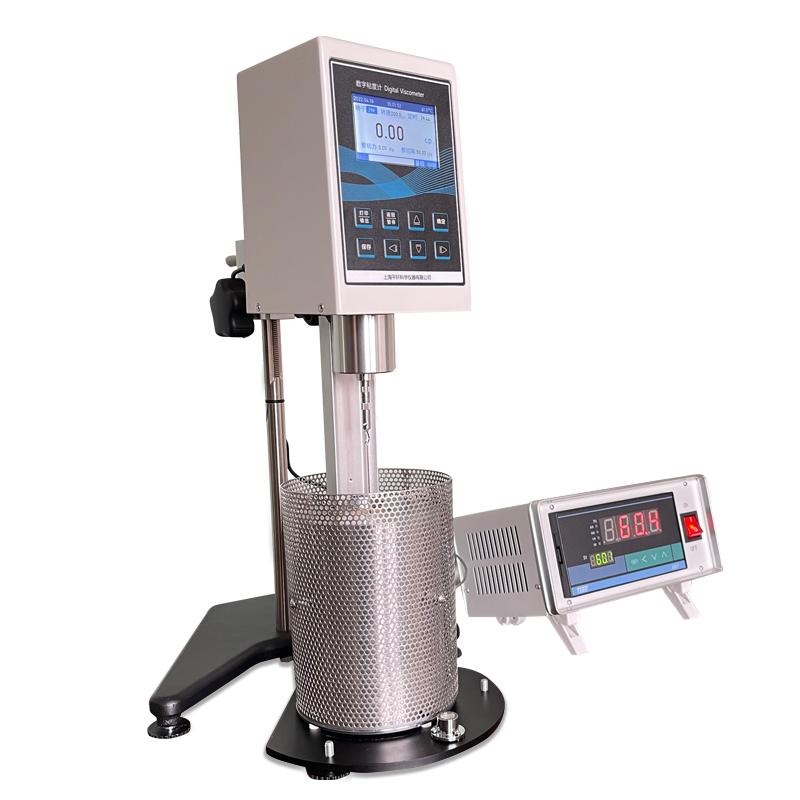

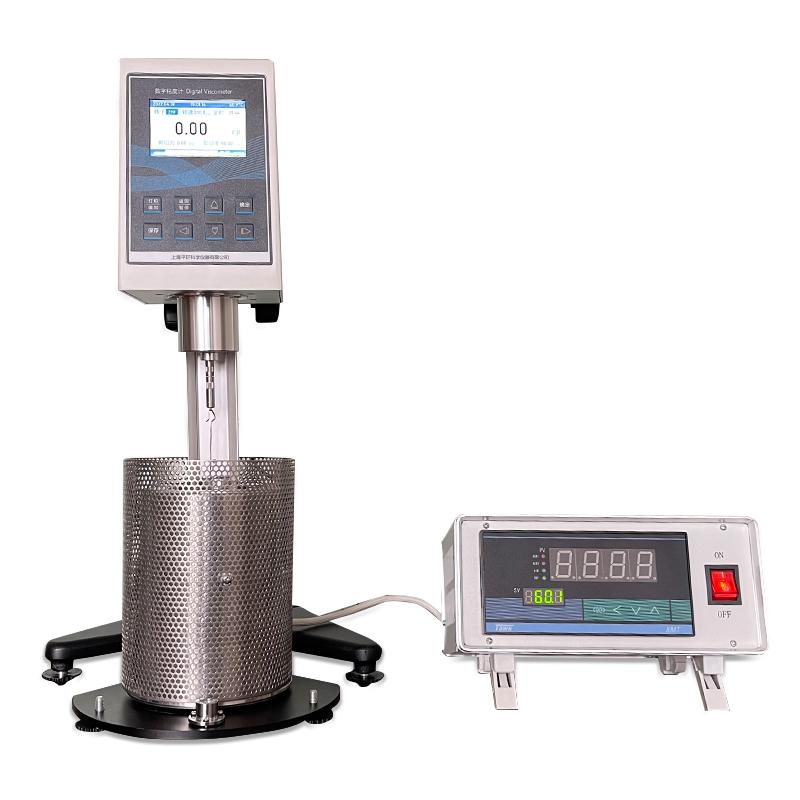

The LVTV-2H Brinell Viscometer features a high definition color screen and high-performance processor for easy operation and rich display information. The all-metal housing design effectively prevents interference and supports computer connection.
Features
1. The high definition color screen interface is concise and clear, and new users are easy to use.
2. All-metal shell, strong anti-interference, better than plastic parts.

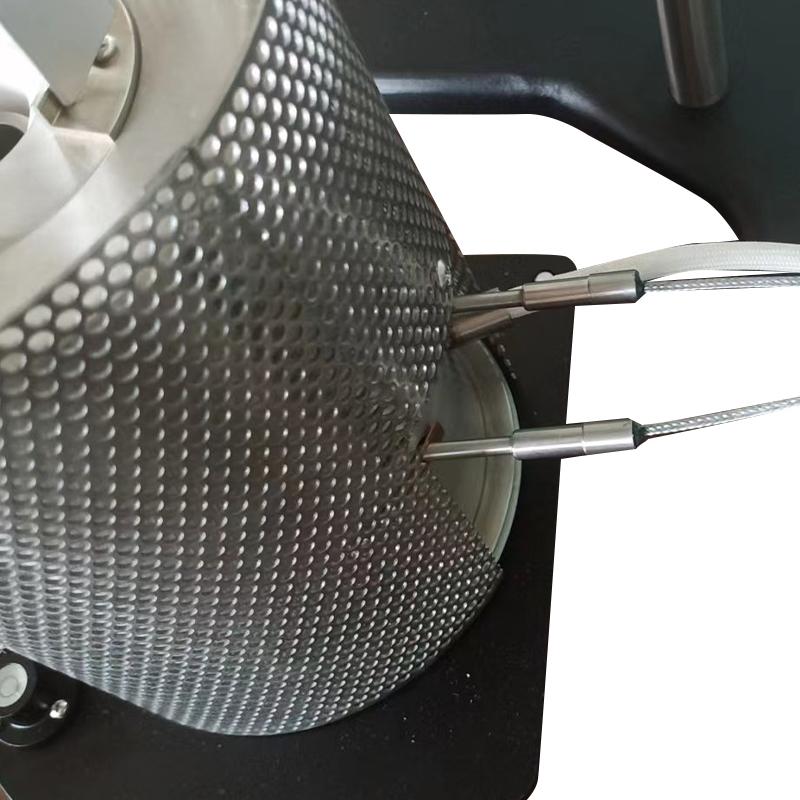

3. Optional PT100 High Accuracy Temperature Probe.
4. High-speed chip processor, faster data processing.
5. High-strength small shaft design, durable.
6. With 232 printing interface, it can be connected to a computer or micro printer to print data.
7. Timing function, automatically complete non-newtonian fluid measurement to ensure data conformity.
8. Real-time display of viscosity Linear dispersion, viscosity, temperature and other information.
9. The instrument can store data for easy access and comparison.
Principle
The Brinell Viscometer swirls/spins through the sample with a rotor, measuring fluid resistance to calculate viscosity. Stepless variable speed is used to control the speed, and data such as viscosity and temperature are collected in real time and processed quickly by a high-speed processor.
Applications
Inks, Asphalt, Glue, Latex, Solvent Adhesives, paints Coatings, Petroleum, Cosmetics, Milk Products, Juices, Pastes
Steps
1. Connect the power adapter and turn it on.
2. Select the appropriate rotor and install it.
3. Set the speed and temperature parameters.
4. Place the sample in a container.
5. Start measurement, the instrument automatically collects data.
6. View or store data such as viscosity and temperature.
7. Optional connection to a computer or printer to output data.
Notice
• Using a dedicated power adapter, the input voltage is 100~ 240V 50/60Hz.
• Ensure that the sample volume is within the range of 10-20ml.
• Measurement accuracy is regularly calibrated.
• Avoid use in extreme temperature or humidity environments.
• Clean the rotor to prevent contamination of the sample.
• Optional accessories need to be installed and used correctly.
