Overview

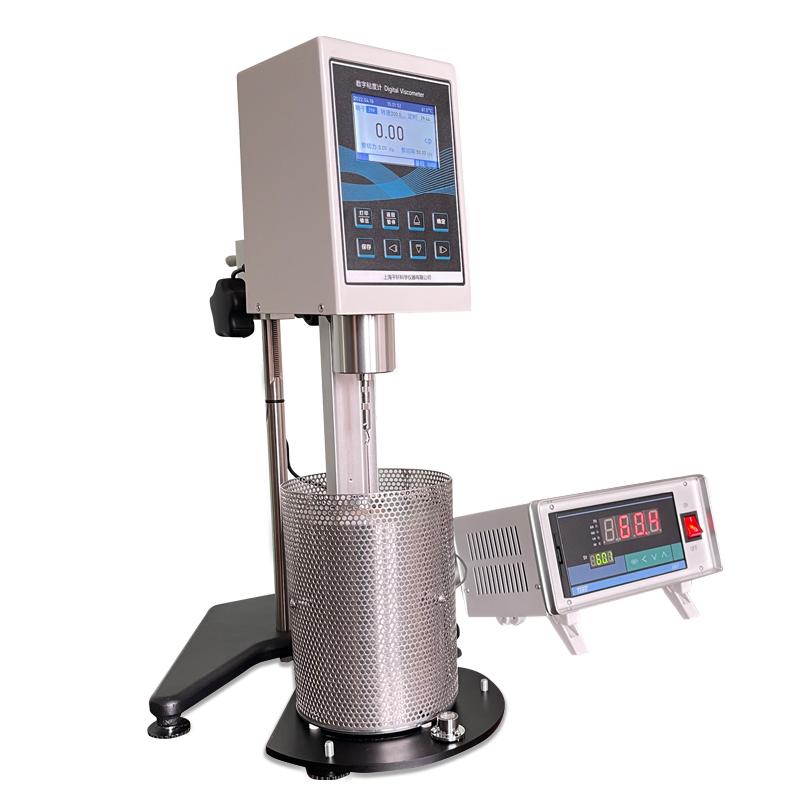

The RVTV-2H Brinell Viscometer is a high-performance instrument from the PINGXUAN brand. It features a high definition color screen and a high-performance processor for easy operation and rich display information. The all-metal housing design effectively prevents interference and supports computer connection.
Features
1. High definition color screen, the operation interface is concise and clear, and new users are easy to use.
2. All-metal shell, strong anti-interference, better than plastic parts.
3. PT100 High Accuracy Temperature Probe (optional).
4. High-speed chip processor, faster data processing.
5. High-strength small shaft design, durable.
6. With 232 printing interface, it can be connected to a computer or micro printer to print data.
7. Timing function, automatically complete non-newtonian fluid measurement to ensure data conformity.
8. Real-time display of viscosity Linear dispersion, viscosity, temperature and other information.
9. The instrument can store data for easy access and comparison.
Principle
RVTV-2H Brinell Viscometer swirl/spin through the rotor in the sample, measurement viscosity, shear rate, shear stress and other parameters, using stepless speed control, combined with High Accuracy temperature probe and processor, real-time processing and display data.
Applications
Inks, Asphalt, Glue, Latex, Solvent Adhesives, paints Coatings, Petroleum, Cosmetics, Milk Products, Products, Juices, Pastes
Steps
1. Connect the power adapter and turn it on.
2. Select the appropriate rotor and speed.
3. Place the sample in the sample container.
4. Start the measurement, the instrument automatically processes the data.
5. View real-time data or store results through a color screen.
6. Optional connection to a computer or printer to output data.
Notice
• Use a dedicated power adapter with an input voltage of 100 to 240V 50/60Hz.
• The sample capacity is controlled within the range of 10~ 20ml.
• Make sure the rotor is installed correctly to avoid damage.
• Temperature range from room temperature to 300 ℃, temperature control accuracy is 0.1 ℃, pay attention to temperature control when using.
• Measurement accuracy is regularly calibrated.
• Optional accessories such as Thermostatic bath, adapter, etc. need to be configured according to requirements.
