Overview

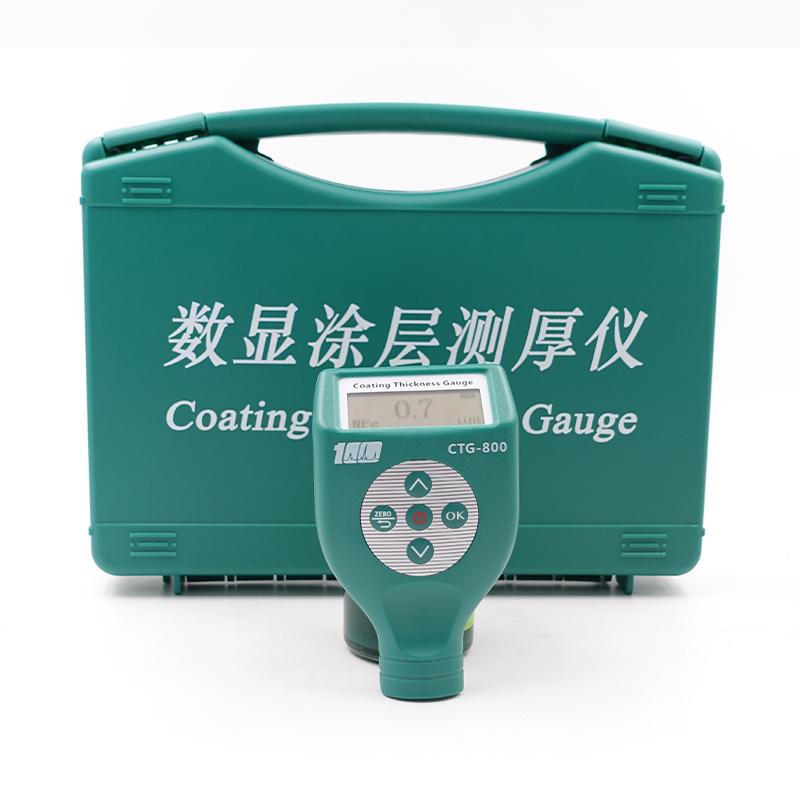

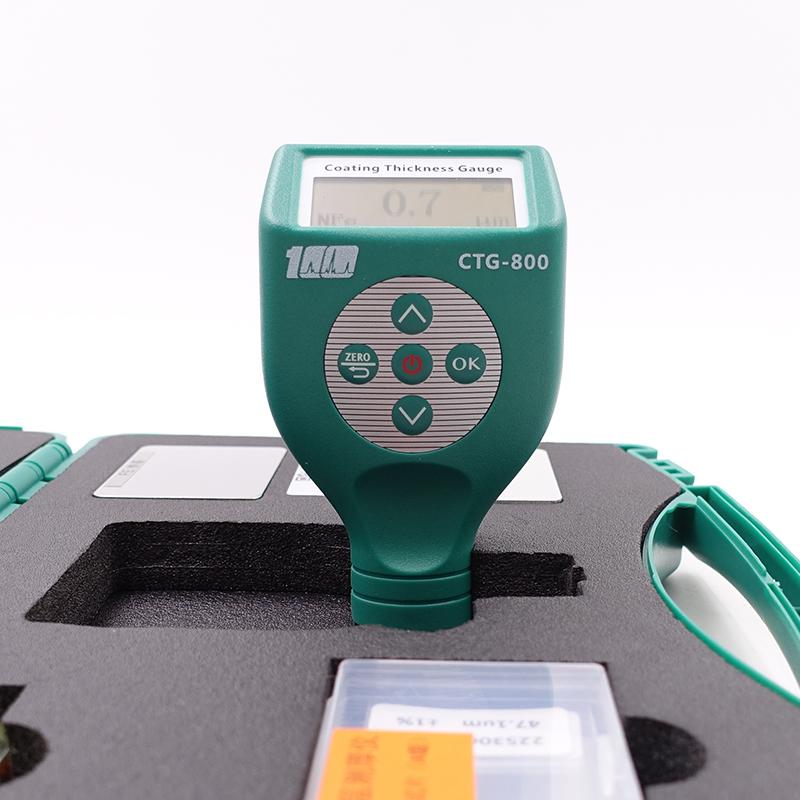

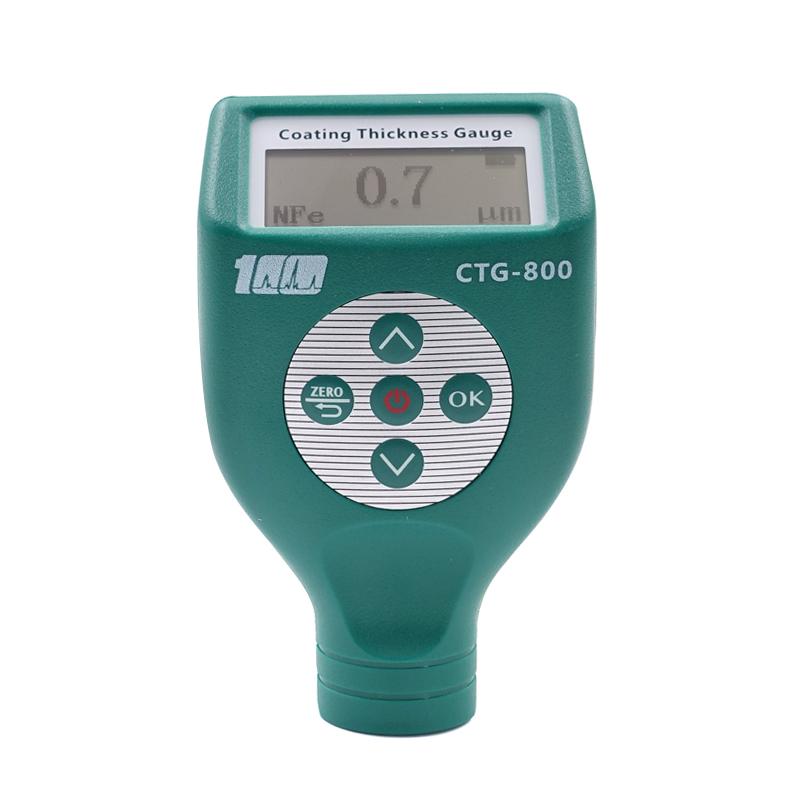

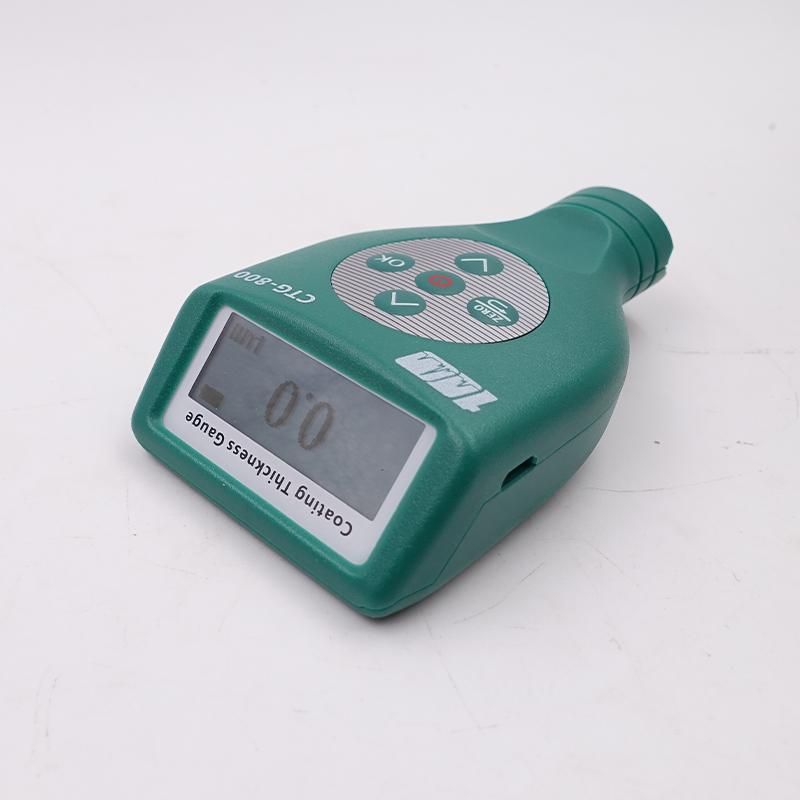

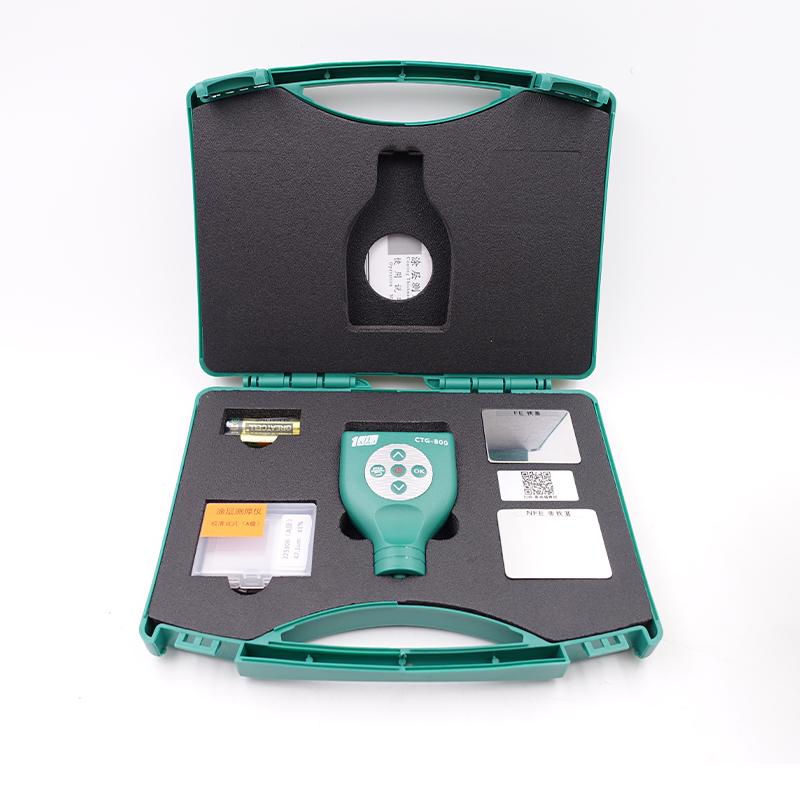

CTG-800-1500FN integrated dual-use standard Coating thickness gauge is a magnetic and eddy current integrated instrument that can automatically identify magnetic or nonmagnetic substrates and automatically convert them. It can be quickly, non-destructive and precise for coating and platings Film thickness measurement. The instrument can be used in both laboratories and engineering sites. It is widely used in the automotive industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and other fields. It is an instrument required by the material protection profession.
The instrument has the functions of backlight, large screen digital display, single-point and multi-point calibrating, high and low temperature resistance, drop resistance, probe wear resistance (more than 500,000 times), good test Stability, fast speed, suitable for various measurement environments. Fe function detects nonmagnetic Coating thickness on magnetic substrate, NFe function detects insulation Coating thickness on nonmagnetic substrate.
Features
1. Measuring method: magnetic Induction and eddy Current, automatically identify the type of substrate and convert

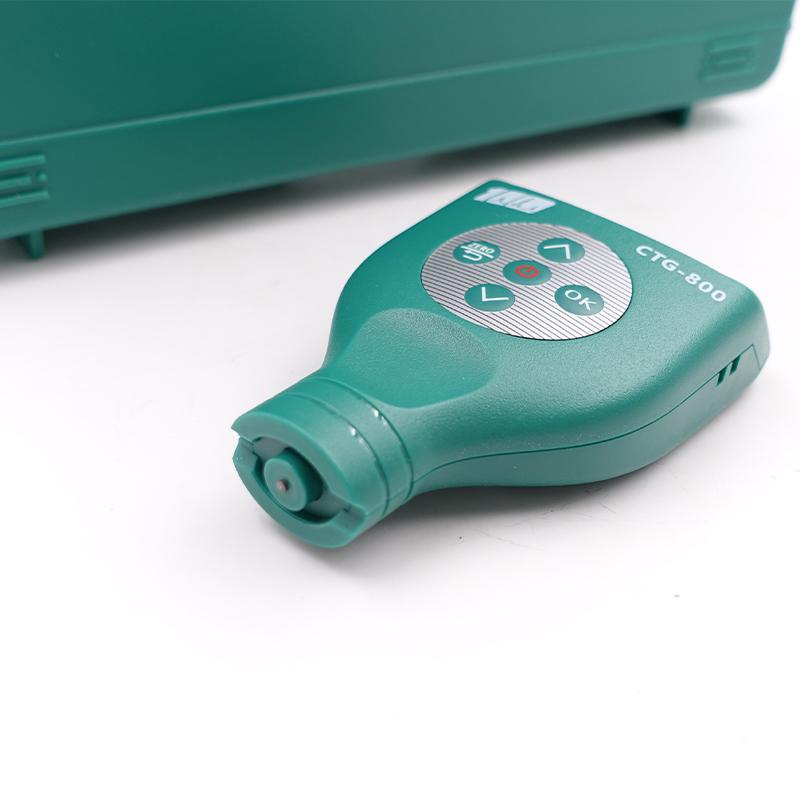

2. Super wear resistant cemented carbide probe spring guide sleeve probe to ensure the compression force and sampling stability
3. High accuracy, Stability, can measure 1-5μm ultra-thin coatings
4. Measurement speed is fast, up to 0.3 seconds/time
5. Large screen digital backlight display, ignoring poor, suitable for night use
6. Two shutdown methods: manual and automatic
7. Measurement range, high resolution
8. Measurement mode: single measurement and continuous measurement
9. Metric and inch unit conversion function (μm/mil)
10. Shell and internal structure design beautiful, anti-drop, anti-Impact
11. Measurement accuracy
Principle
The Coating thickness gauge uses magnetic Induction and eddy Current Measurement principles. Fe function uses magnetic Induction principle to detect nonmagnetic Coating thickness on magnetic substrates (such as steel, iron); NFe function uses eddy Current principle to detect insulation Coating thickness on nonmagnetic substrates (such as aluminum, copper, brass, stainless steel). The instrument can automatically identify the substrate type and switch the corresponding Measurement mode to achieve fast and nondestructive Film thickness measurement.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Install 2 AA batteries (AAA)
2. Power on and select Measurement mode (Single or Continuous)
3. Touch the probe on the surface to be tested, and the instrument automatically recognizes the type of substrate
4. Read Film thickness values on the display
5. Optional unit conversion (μm/mil)
6. Manual shutdown or wait for automatic shutdown after use
Notice
• Ensure that the minimum film thickness of the substrate is 0.3mm
• Pay attention to the curvature radius limit when measuring: magnetic substrate convex 1.5mm, concave 25mm; nonmagnetic substrate convex 3mm, concave 50mm
• Operating temperature range of -10-50 ℃, relative humidity less than 80%
• Avoid use in extreme environments or exceeding specifications
• Regularly check probe abrasion to ensure Measurement accuracy
