Overview

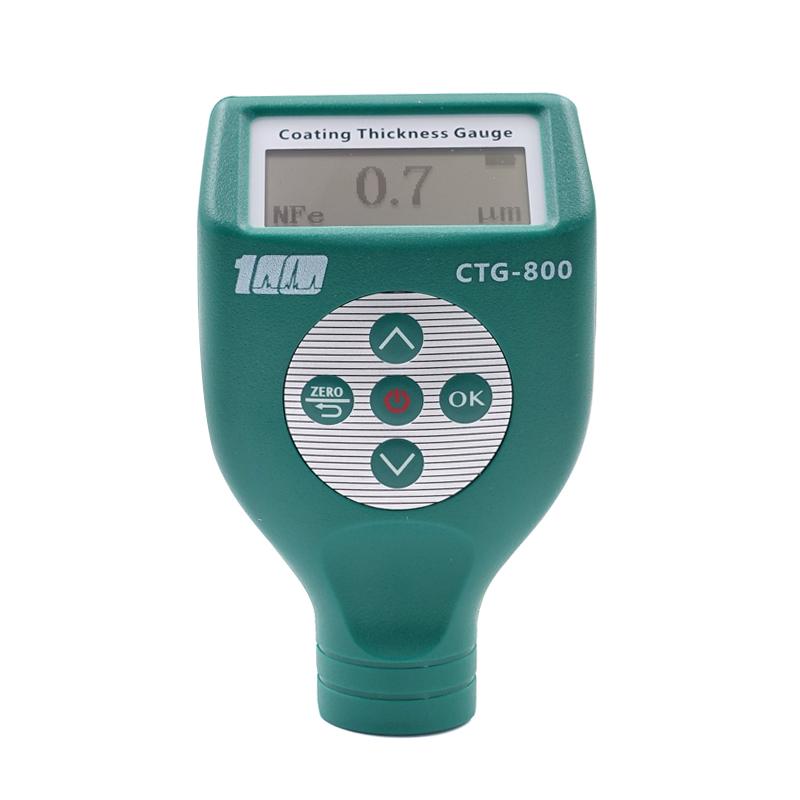

CTG-800-1500F Coating thickness gauge adopts the principle of magnetic Induction thickness measurement, which can quickly, non-destructive and precise measurement of coating and platings Film thickness, suitable for laboratories and engineering sites. The instrument is widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other fields. It is an instrument required by the material protection profession. It has the characteristics of High Accuracy, Good Stability and Fast Test Speed.
Features
1. Using magnetic Induction Measuring method, suitable for nonmagnetic Coating thickness detection on magnetic substrate.

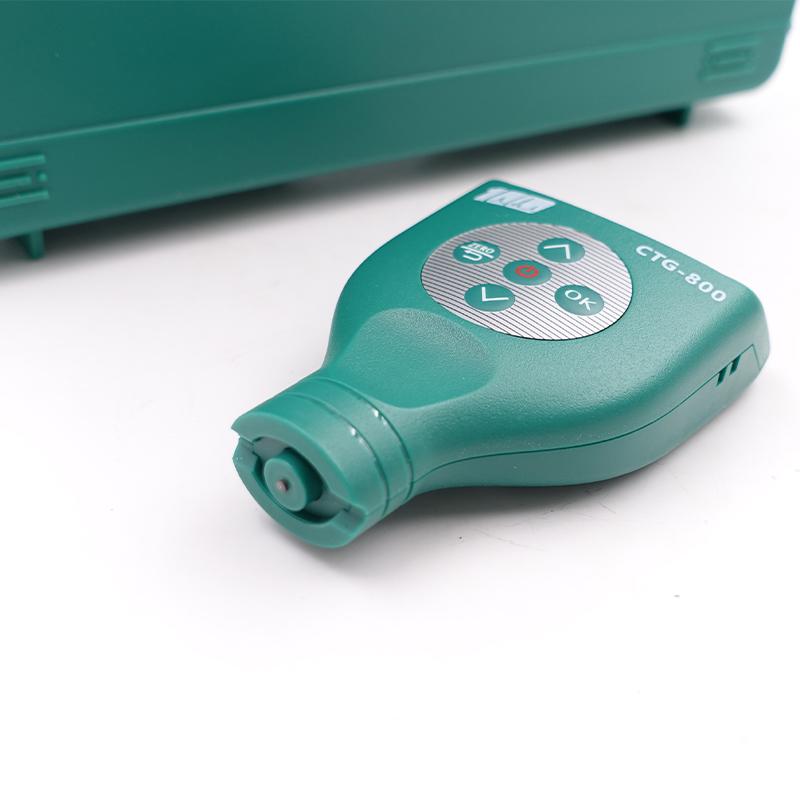

2. The spring guide sleeve probe equipped with super wear-resistant cemented carbide probe ensures stable compression force and sampling value.
3. High accuracy, Stability, measurement of 1-5μm ultra-thin coatings.
4. Measurement speed up to 0.3 seconds/time, high efficiency.
5. Large screen digital backlight display, regardless of the difference, suitable for night use.
6. Support Single Measurement and Continuous Measurement mode.
7. With metric-to-metric unit conversion function (μm/mil).
8. New design of shell and internal structure, beautiful, anti-drop, anti-Impact.
9. Measurement accuracy is good, easy to operate.
10. High and low temperature resistance, anti-drop, probe wear resistance (more than 500,000 times).
11. Two shutdown methods: manual and automatic shutdown.
Principle
The CTG-800-1500F Coating thickness gauge works based on the principle of magnetic Induction and realizes fast and non-destructive measurement by detecting the nonmagnetic Coating thickness on a magnetic substrate. The instrument uses the magnetic Induction change between the probe and the substrate to accurately calculate the Coating thickness and is suitable for various measurement environments.
Applications
Automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection
Standards
National standards, international standards
Steps
1. Make sure the instrument is powered on and powered by 2 AA batteries.
2. Measurement mode: single measurement or continuous measurement.
3. Touch the probe lightly on the surface to be tested to keep the pressing force stable.
4. Read the results of the large-screen digital display, and perform unit conversion (μm/mil).
5. After the measurement is completed, you can choose to shut down manually or wait for automatic shutdown.
Notice
• Only for nonmagnetic coating measurements on magnetic substrates.
• Operating temperature range is -10-50 ℃, relative humidity should be less than 80%.
• Make sure that the thinnest film thickness of the substrate is not less than 0.3mm during measurement.
• In hard or rough surface measurement, pay attention to keep the probe compression force stable.
• Avoid instrument from being strongly impacted or dropped to maintain accuracy.
• Regularly check the battery level to ensure normal use.
