Overview

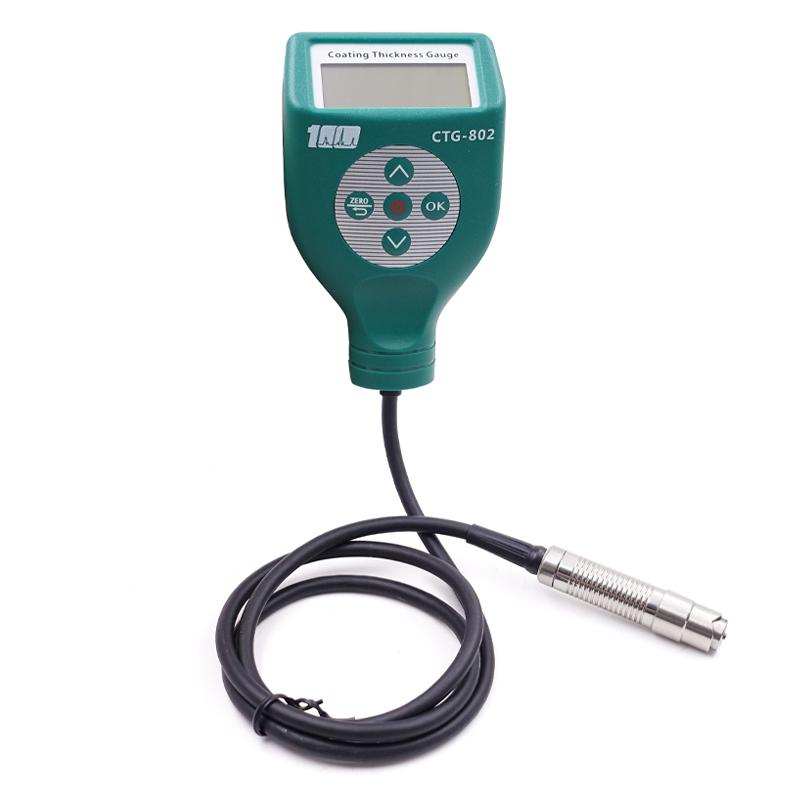

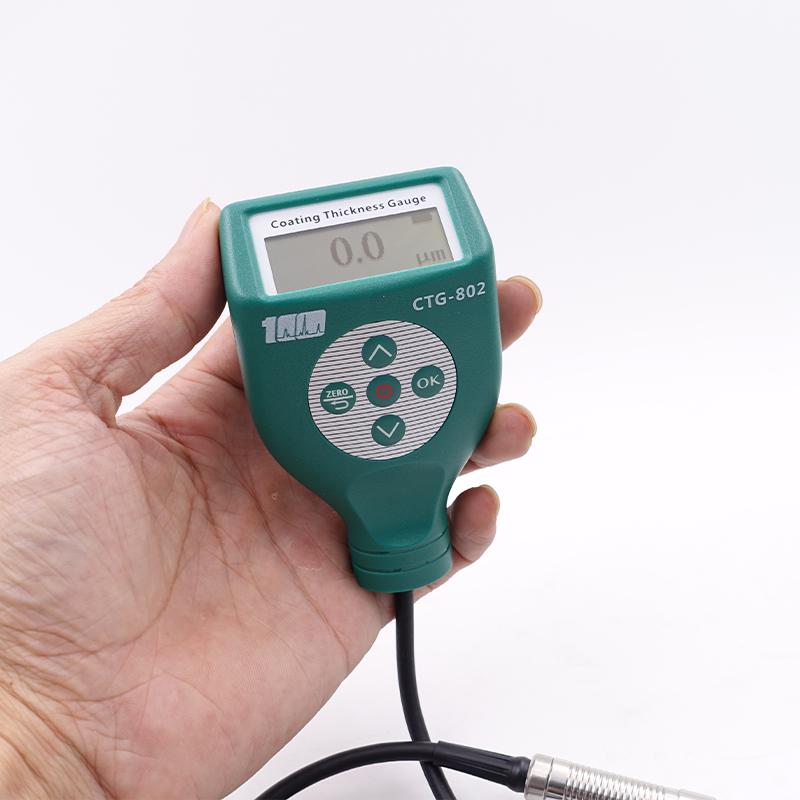

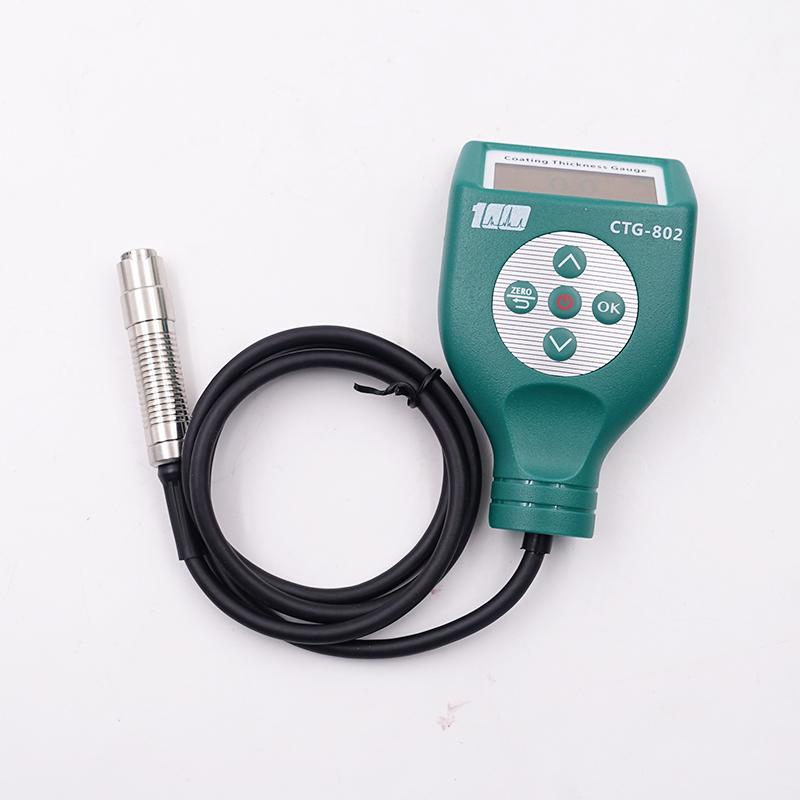

CTG-802-1500F split iron-based standard Coating thickness gauge is a split coating platings thickness gauge of YIBAI brand. It adopts magnetic Induction and eddy Current automatic conversion technology to automatically identify the substrate. Measuring method conforms to international standards ISO2178, ISO2360 and national standards GB4956, GB4957, which can quickly, nondestructive and precise coating, platings Film thickness measurement, suitable for laboratories and engineering sites. Widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields, it is a required instrument for material protection.
Features
1. Using magnetic and eddy current thickness measurement methods, nondestructive measurement of magnetic metal substrate nonmagnetic film thickness and nonmagnetic metal substrate nonconductive film thickness.

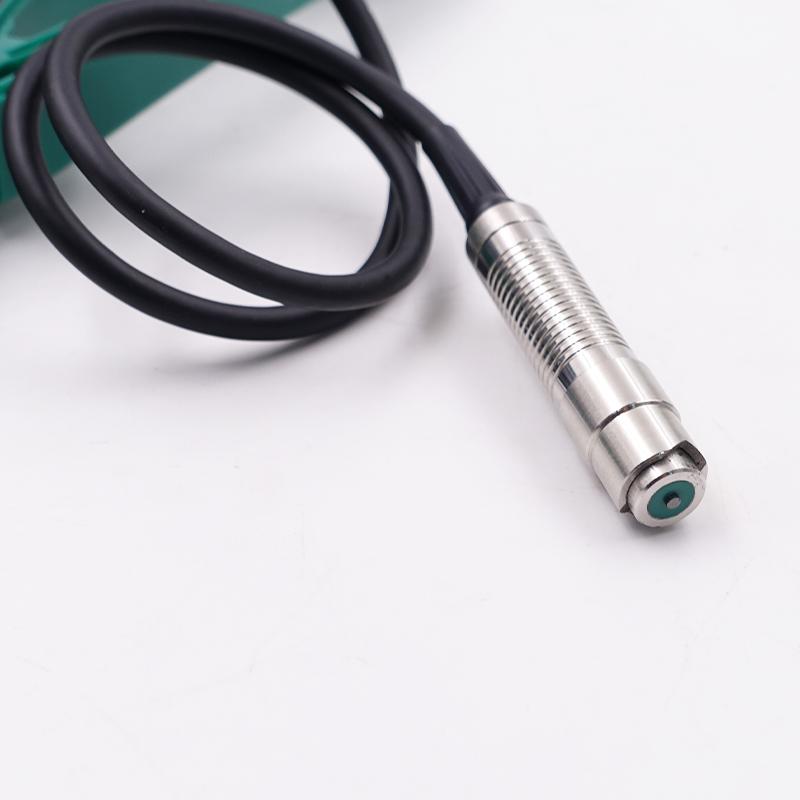

2. The spring guide sleeve probe with super wear-resistant cemented carbide probe ensures that the probe has constant pressing force and stable sampling value, and the probe is wear-resistant for more than 500,000 times.
3. Measurement speed up to 0.3 seconds/time.
4. High accuracy, Stability, can measure 1-5μm ultra-thin coatings.
5. Measurement range, high resolution.
6. Measurement accuracy is good.
7. Can quickly and automatically identify magnetic and nonmagnetic substrates.
8. Integrated structure, small size and light weight.
9. Dot matrix backlight display, regardless of differences, suitable for night use.
10. Equipped with automatic shutdown to achieve power saving function.
Principle
This instrument adopts magnetic Induction and eddy Current automatic conversion technology, and selects the corresponding Measuring method by automatically identifying the substrate type. Film thickness of nonmagnetic cover layer on magnetic metal substrate is measured by magnetic Induction principle, and film thickness of nonconductive cover layer on nonmagnetic metal substrate is measured by eddy Current principle to realize nondestructive and precise Film thickness detection.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
Install 2 x 1.5V AAA AA AA batteries.
2. Measurement mode: single measurement or continuous measurement.
3. Tap the probe on the measured surface for measurement.

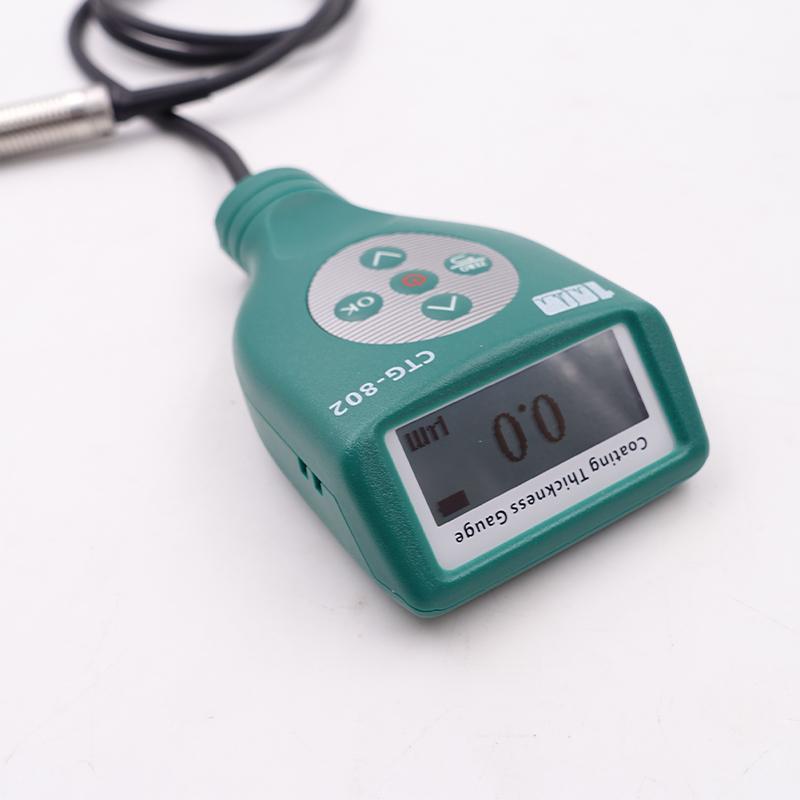

4. Read the Film thickness value displayed on the LCD dot matrix LCD screen (the unit can be selected in μm or mil).
5. After use, the instrument automatically shuts down to save power.
Notice
* Operating temperature range is -10~ 50 ℃, relative humidity should be less than 80%.
* Ensure that the probe is in stable contact with the surface during measurement and avoid use in extreme environments.
* Probe wear-resistant but need to avoid excessive abrasion, regularly check the probe status.
* When the battery is low, replace it in time to ensure Measurement accuracy.
* Avoid high temperature and high humidity environment during storage to prolong the life of the instrument.
