Overview

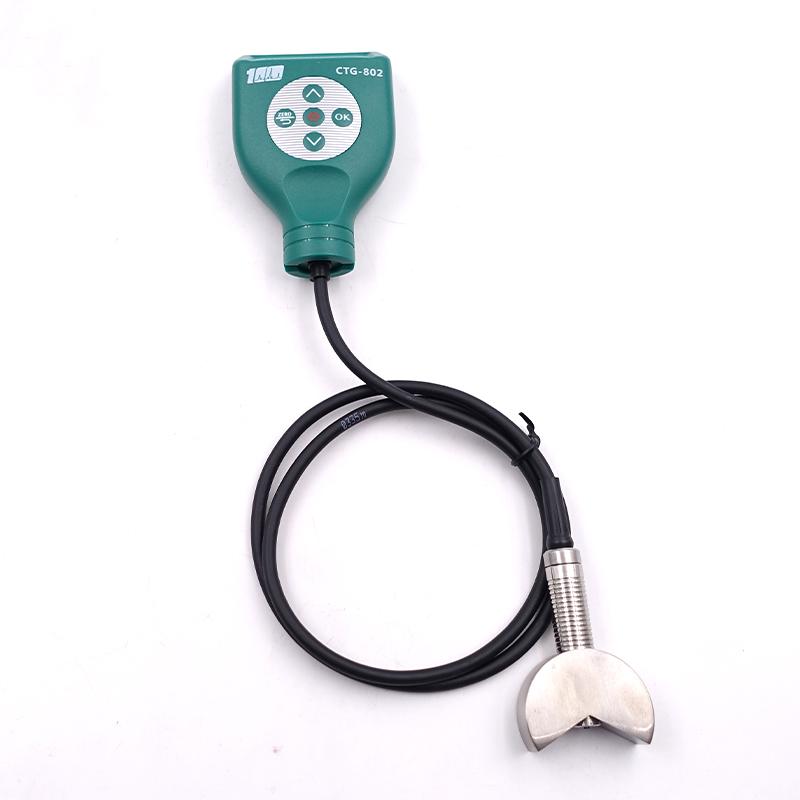

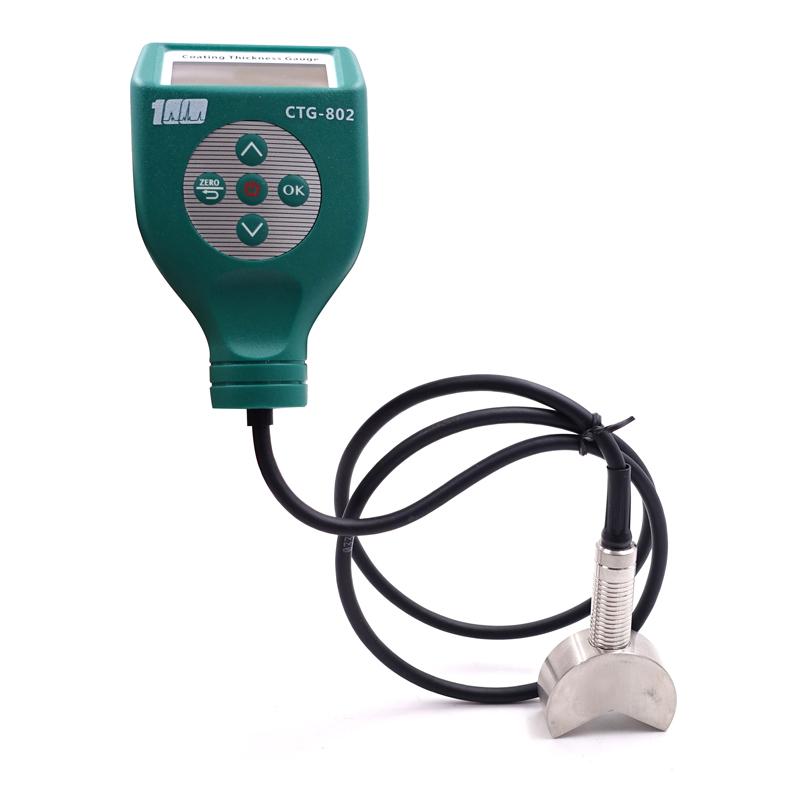

YIBAI CTG-802-1500FV Split Iron-Based Large V-Type Coating thickness gauge is an iron-aluminum dual-use split coating platings thickness gauge that can automatically identify substrates and uses magnetic Induction and eddy Current automatic conversion technology. It can quickly, nondestructive, and accurately perform coating and platings Film thickness measurement, which can be used in both laboratories and engineering sites.
Features
1. Using magnetic thickness measurement method, nondestructive measurement of magnetic metal substrate nonmagnetic film thickness.

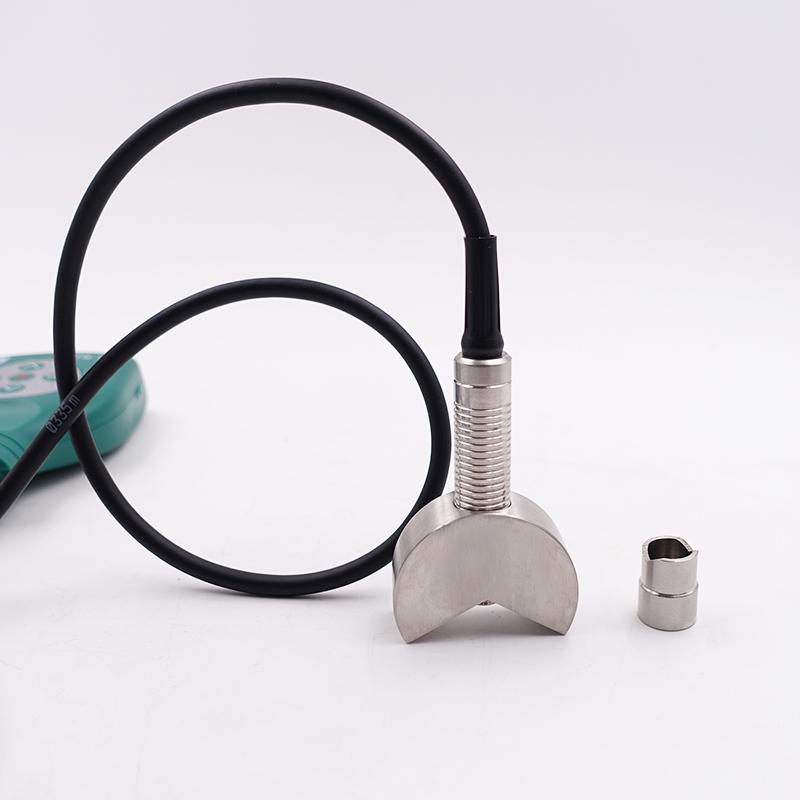

2. Spring guide sleeve probe with super wear-resistant cemented carbide probe, wear-resistant 500,000 times or more.
3. Measurement speed up to 0.3 seconds/time.
4. High accuracy, Stability, can measure 1-5μm ultra-thin coatings.
5. Measurement range, high resolution.
6. Measurement accuracy is good.
7. Can quickly and automatically identify magnetic and nonmagnetic substrates.
8. Integrated structure, small size and light weight.

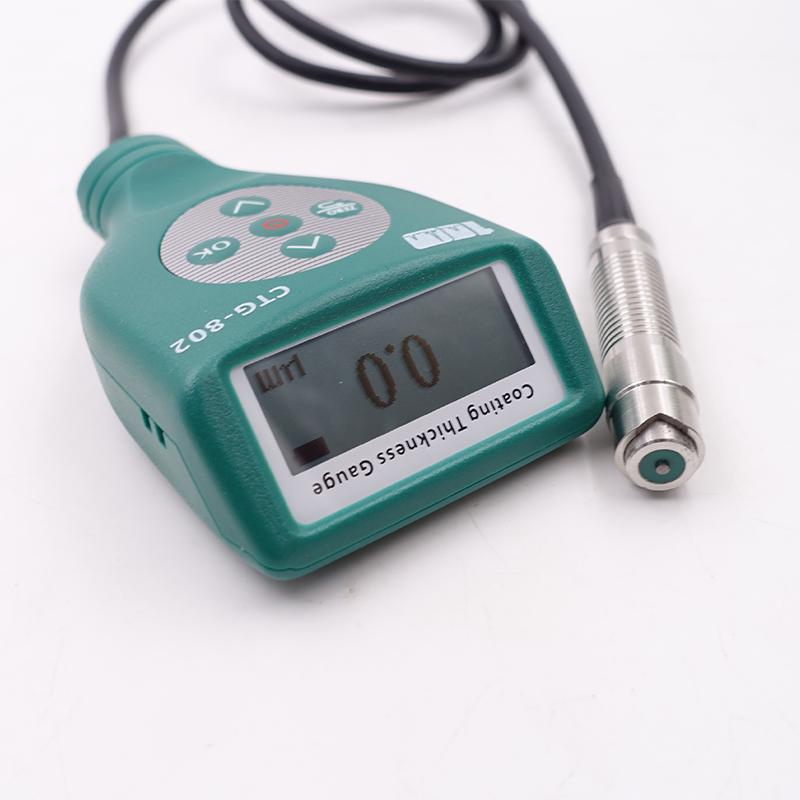

9. Dot matrix backlight display, regardless of differences, suitable for night use.
10. Equipped with automatic shutdown to achieve power saving function.
Principle
This instrument adopts magnetic Induction and eddy Current automatic conversion technology, can automatically identify the substrate, through the magnetic thickness measurement method nondestructive measurement magnetic metal substrate nonmagnetic film thickness.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Single measurement
2. Continuous measurement
Notice
* Operating temperature: -10~ 50 ℃
* relative humidity: humidity < 80%
