Overview

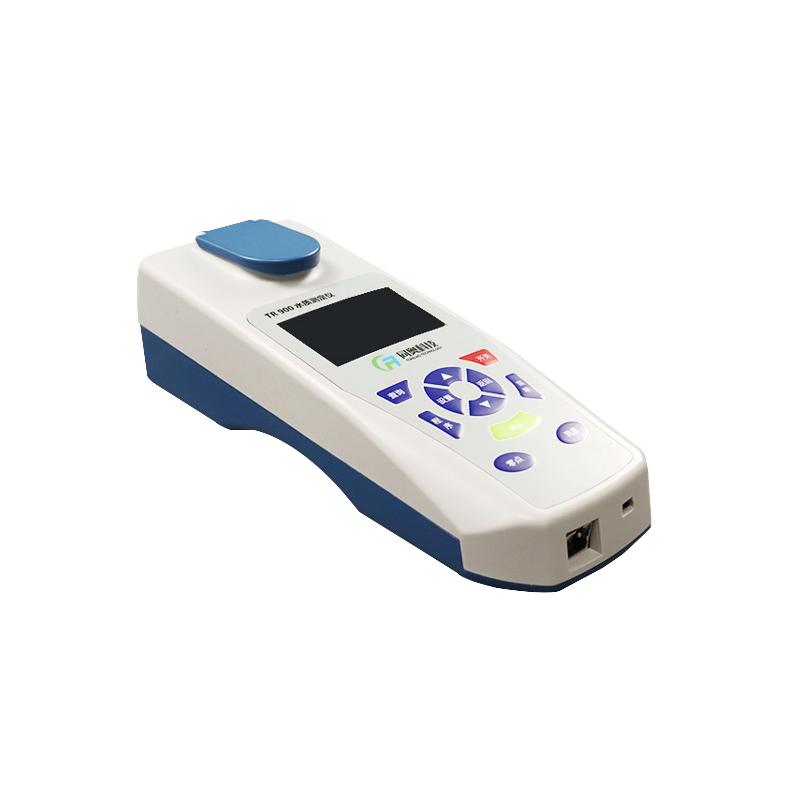

The TR-1000H type water quality suspended solids tester is based on the improved design of the "National Standard Weight Method" standard, adopts imported cold light source and narrow-band interference technology, detects sample Absorbance through Spectrophotometric method, spectrophotometry, and directly displays the suspended solids concentration value (mg/L) after microcomputer treatment. No detection reagents are required, the detection is simple, fast, accurate and safe, with the characteristics of small and portable, easy operation and low cost. It is widely used in emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing and other industries Wastewater detection and R & D institutions, colleges and universities wastewater research.
Features
1, wide detection range: can expand dozens of detection parameters, support customization.
2. Sensitivity: the minimum display value is 0.001 mg/L.
3. Light source advantages: imported cold light source, good Optical Property, no need to preheat, life 100,000 hours.
4. Operation intelligence: Intelligent operating procedures guide users to complete the operation.
5. Diversified test methods: Support standard measurement or continuous Measurement mode.
6. Low cost of use: low price of consumables and low usage.
7. Operation safety: Colorimetric integrated tube is used for simple, fast and safe determination.
8. Large-screen LCD display, direct data reading, time-saving operation.
9. Portable design: compact and lightweight, easy to carry, supports wireless Bluetooth printing and data storage.
10. Online function: Support network port, USB, Bluetooth and PC or printer data transmission.
11. Software advantages: Chinese and English interface, data storage power-off protection, built-in standard programs, user-defined development, help interface, and one-click factory reset.
Principle
The instrument is based on the Spectrophotometric method, spec-trophotometry, which detects the Absorbance of the sample at a specific wavelength through imported cold light source and narrowband interferometry technology. The microcomputer automatically processes the data and directly displays the suspended solids concentration value (mg/L) without reagents, simplifying the detection process.
Applications
Emergency monitoring, sewage treatment, chemical industry, wastewater, food, printing and dyeing, R & D institutions, colleges and universities
Standards
National standard weight method
Steps
1. The intelligent operation program guides the user to complete the operation.
2. Select standard measurement or continuous Measurement mode for measurement.
3. Simple and quick determination using digestion Colorimetric integrated tube.
4. Read data through large-screen LCD to support data storage and transmission.
Notice
• Read the help interface for general precautions before operation.
• Ensure that the environment temperature is 5~ 40 ℃, humidity ≤ 85% without condensation.
• Use rechargeable battery power supply, pay attention to the remaining power display.
Data storage has a power-off protection function, but it still needs to be backed up regularly.
• Users can customize procedures and reagents, but they need to adapt to different water conditions.
• Support one-click factory reset, and operate cautiously to avoid data loss.
