JINGKELIAN QCJ-II (50cm) film Impact height 50cm Drop weight mass 1000g

Name: JINGKELIAN QCJ-II (50cm) film Impact height 50cm Drop weight mass 1000g
Brand: JingKeLian
SKU: NB040648
Price: 229.0 USD
Availability: InStock

$ 229.00Ex works

Impact test with heavy hammer free fall, impact height 50cm, drop weight mass 1000g, punch diaMeter 8mm, safe and reliable operation, easy to use in the field and laboratory.

Model

Get Quote

Category : Film Impact Tester

Brand : JingKeLian

SKU : NB040648

Service :The delivery and service By NBCLab.Com

Overview

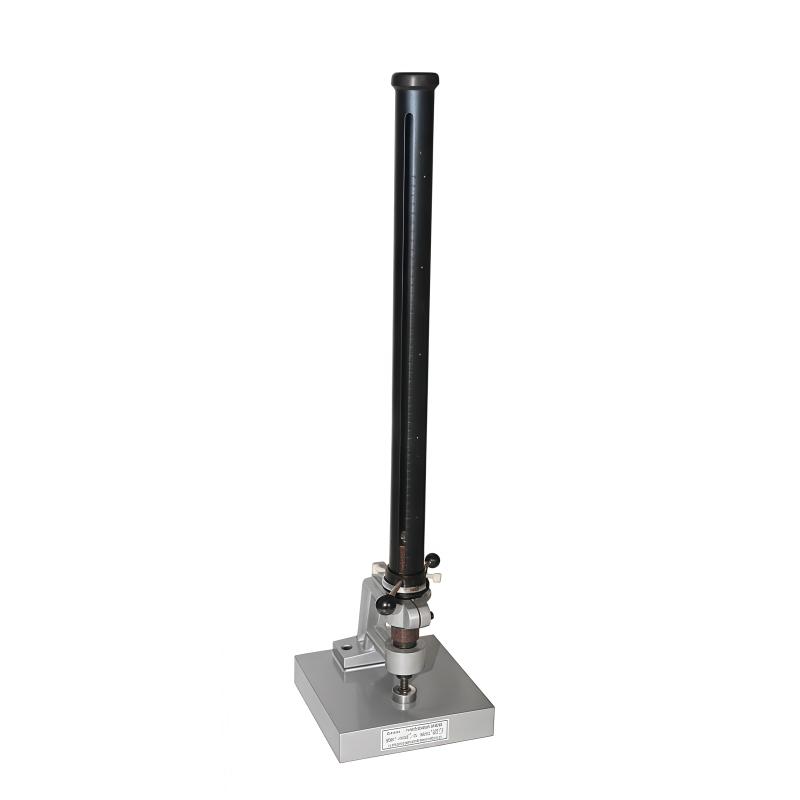

QCJ-II film Impact device is designed and manufactured with reference to GB/T1732-93 standard and foreign congeneric products. It uses the weight of the heavy hammer at different heights to test the degree of film damage with the impact force generated by free fall. It has the characteristics of simple structure, convenient operation, safety and reliability, which is convenient for testing in laboratories and construction sites.

Features

1. Simple structure 2. Easy to operate 3. Safe and reliable 4. Easy to conduct tests in laboratories and construction sites

Principle

The Impact device uses the weight of the weight at different heights to the impact force generated by free fall to test the degree of film damage.

Steps

1. Place the quilt on the Impact baseplate 2. Loosen the two screws on the sleeve ring and adjust it to the required Impact height (subject to the lower edge of the sleeve ring) 3. Hold the handle on the sleeve ring with your left hand and turn to the right to make the openings of the three rings uniform 4. Hold the weight handle with your right hand and lift the weight up so that the weight handle is embedded in the opening of the ring 5. Then turn the sleeve ring to the left to fix the weight 6. When impacting, turn the sleeve ring right, and the weight will impact the punch in a free fall 7. Remove the test plate and record the height of the weight falling 8. Observe with magnifying glass to determine whether there is crazing flaking and other phenomena

Notice

• Remember that there is no test plate Impact to avoid peeling the steel ball

Impact height
50cm
Drop weight mass
1000±1g
Punch diameter
8mm
Meet the standard
GB/T1732-93
Dimension
200*200*800mm
Net weight of instrument
8kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
