Overview

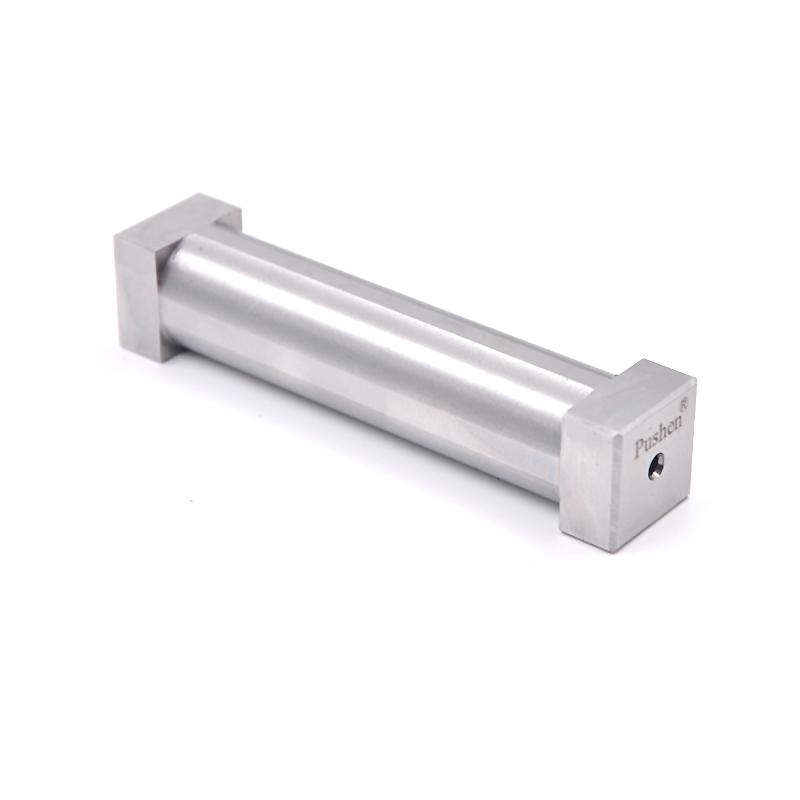

The PUSHEN ZBQ 5-20um Film Applicator is a 4-sided manual coating applicator made of hard stainless steel for scraping films of specified thickness and width on flat and solid substrates. Each film applicator comes with 4 High Accuracy fixed film thicknesses to ensure Accuracy and is available in a variety of film widths for customization.
Features
1. The material is stainless steel to ensure that the coating applicator is not eroded by acidic or alkaline substances in the Coating or cleaning agent
2. Mainly used for Spreader wet-film with a certain thickness to determine the color, hiding power or preparatory sample of the sample
3. The multi-faceted I-shaped wet-film device can be applied to 4 different film thicknesses of the Spreader
4. Only need to change the angle to get 4 different paint film thicknesses, simple and convenient operation
Principle
Film Applicator provides different film thickness options by scraping on a flat and solid substrate using a 4-sided design, and converts the angle to obtain a wet-film layer of the specified thickness for subsequent assays or sample preparation.
Applications
Coatings, inks, dyestuffs, powders, pigment particle measurement, plastics, pigments, Printing inks, paper, ceramics, food
Steps
1. Choose a flat and solid substrate
2. Select the angle of the film applicator as needed to obtain the specified film thickness
3. Perform a scraping operation on the substrate
4. Changing the angle can obtain paint films of different thicknesses
Notice
Make sure the substrate is flat and solid
• Avoid using corrosion cleaning agents to prevent damage to stainless steel
• Pay attention to changing the angle when operating to accurately obtain the required film thickness
• Suitable for color determination, hiding power or preparatory prototyping, not for leveling evaluation
