Overview

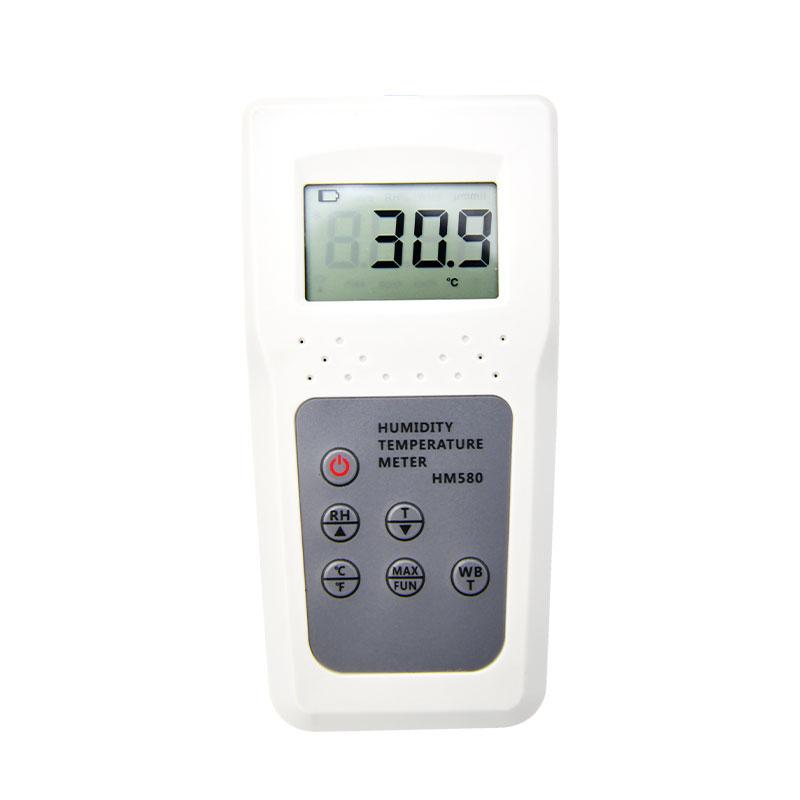

HM580 Thermohygrometer is a portable measuring instrument of TSINGTAO TOKY brand, which is widely used in agriculture, food, transportation, scientific research, quarantine, environment and other industries. It is suitable for on-site measurement occasions such as computer rooms, buildings, offices, supermarkets, archives, production workshops, warehouses, construction sites, etc.
Features
1. Microprocessor control, built-in program automatic protection measures, Stability is good.
2. Measurement speed and wide range.
3. Small size, light weight, strong anti-interference performance, can be carried on site for rapid detection.
4. Backlit liquid crystal display technology, clear display, low power consumption.
5. MAX Maximum Hold function.
6. Automatic/manual shutdown function can be set.
Principle

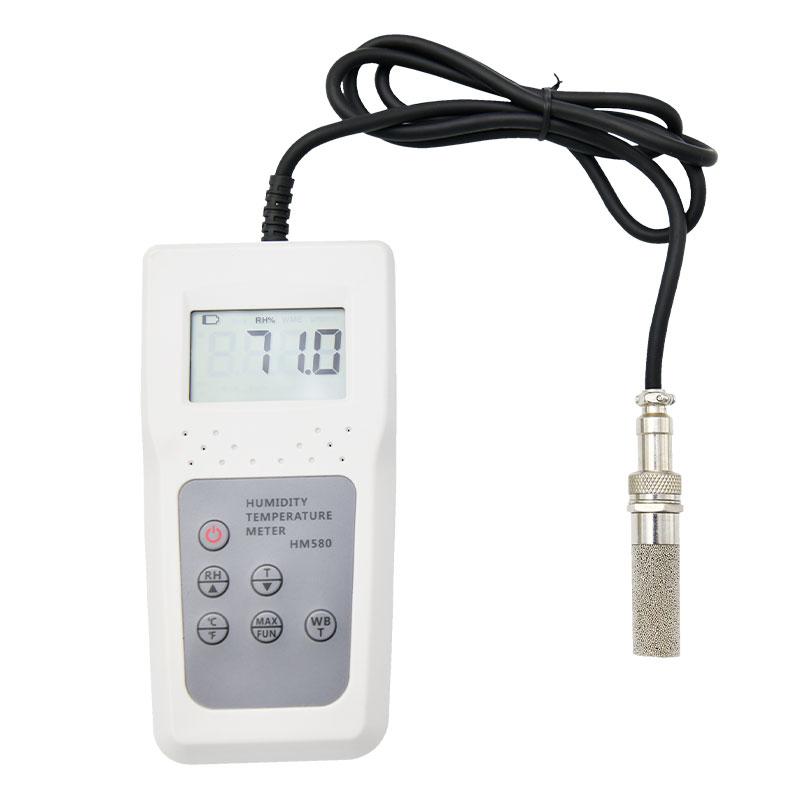

The HM580 Thermohygrometer uses a split Sensor design, which realizes fast sampling through microprocessor control, measurement of parameters such as humidity, temperature and wet-bulb temperature, and the Sampling rate is 0.4 seconds.
Applications
Agriculture, food, transportation, scientific research, quarantine, environment, computer room, building, office, supermarket, archives, production workshop, warehouse, construction site
Steps
Install 4 AA batteries as a power source.
2. Select the automatic or manual shutdown function setting as required.
3. Place the split Sensor on the measurement site for detection.
4. Read parameters such as humidity, temperature, and wet-bulb temperature through the backlit LCD screen.
5. Optional USB output or Bluetooth output for data transmission.
Notice
• Make sure the power supply is 4 AA batteries to ensure normal power supply.
• Measurement range, temperature range -20~ 60 ℃, humidity range 10~ 95% RH.
• Note that the temperature error is +/- 0.4 ° C, the humidity error is 2% +/- 1% RH, and the accuracy requirements should be considered when using.
• Keep the Sensor clean to avoid interference affecting the measurement results.
• Set the automatic/manual shutdown function reasonably according to the needs of the environment to save power.
