Overview

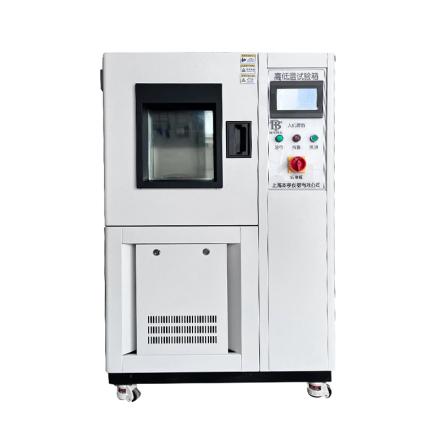

KESIONOTS KS-OTS-HD80LA low/high temperature test chamber is an environmental testing equipment suitable for high and low temperature Reliability testing of industrial products. The equipment is used in the fields of electronics and electricians, automobiles and motorcycles, aerospace, marine weapons, colleges and universities and R & D institutions. It performs performance inspection on product parts and materials under high temperature, low temperature or alternating cycle conditions, and supports product design, improvement, identification and aging tests.
Features
Wide temperature control range from -70 ° C to 150 ° C.
2. The studio has a capacity of 80L and a size of 400 * 500 * 400mm.
3. Adopt stainless steel studio and high-grade cold plate nano-paint outer box.
4. The insulation material is high temperature resistant high density chlorine formic acid vinegar foam insulator.
5. Equipped with air and water-cooled dual-stage Compressor refrigeration system.
6. Multiple protection devices include no fuse switch, Compressor overload protection, refrigerant high and low pressure protection, ultra-humidity over-temperature protection, etc.
7. The controller system can be selected from the Korean or Japanese "OYO" brand, and the refrigeration system can be selected from the French "Taikang" or the German "BITZER" brand.
8. Temperature analysis accuracy +/- 0.1 ℃, uniformity +/- 1.0 ℃, control accuracy +/- 1.0 ℃, fluctuation +/- 0.5 ℃.
Principle
The low/high temperature test chamber realizes temperature control through the refrigeration system and heating system, simulating high temperature, low temperature or alternating environment in a closed studio. The equipment uses wind and water-cooled dual-stage Compressors for refrigeration, combined with thermal insulation materials to maintain temperature stability, so as to conduct Reliability tests on products, such as aging tests, to accelerate the material deterioration process.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Steps
Connect the power supply to ensure that the voltage meets the requirements (1 220VAC +/- 10% 50/60Hz or 3 380VAC +/- 10% 50/60Hz).
2. Turn on the power switch of the device.
3. Set the required temperature parameters through the controller system.
4. Place the test sample in the studio.
5. Start the test program to monitor temperature changes.
6. After the test is completed, turn off the device and remove the sample.
Notice
• Power supply voltage matches equipment requirements to avoid overload.
• Check whether all protective devices are normal before operation.
• Avoid frequent switching of equipment during testing.
• Regularly maintain the refrigeration system and insulation materials.
• Pay attention to replacement and cleaning when using wet and dry ball gauze.
In case of malfunction, stop using it immediately and check the warning system.
