Overview

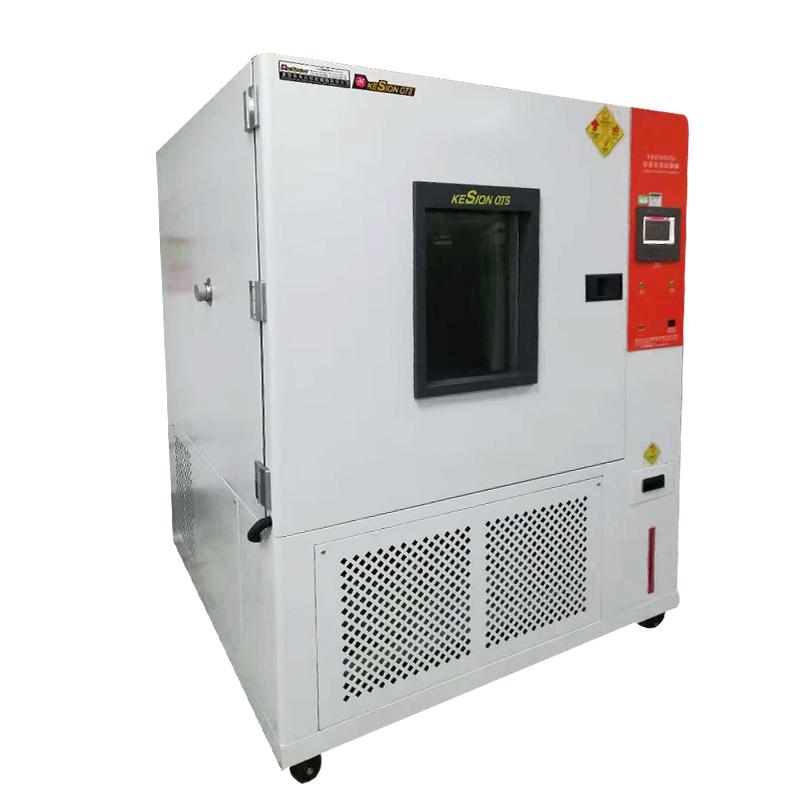

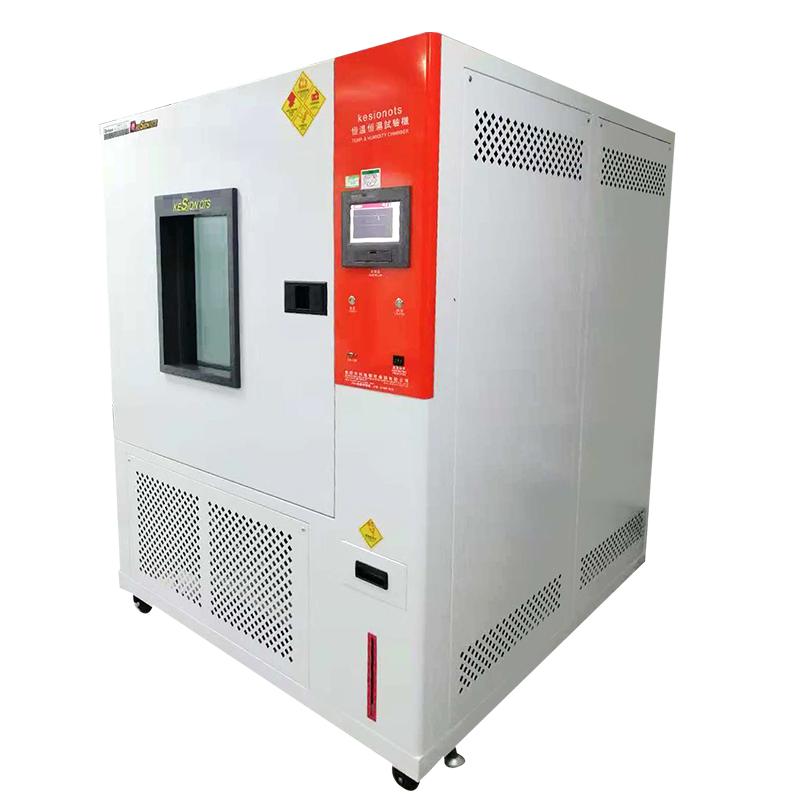

KESIONOTS KS-OTS-HD1000LC low/high temperature test chamber, also known as environmental test chamber, is suitable for high temperature and low temperature Reliability test of industrial products. The equipment is used for parts and materials of electronic and electrical, automobile and motorcycle, aerospace, ship weapons, colleges and universities, R & D institutions and other related products to inspect various performance indicators under high temperature and low temperature (alternating) cycle changes, and support product design, improvement, identification and inspection, such as aging test.
Features
1. Temperature range: -40~ 150 ℃
2. High temperature resolution accuracy: +/- 0.1 ℃
3. Temperature Uniformity: +/- 1.0 ℃
4. High temperature control accuracy: +/- 1.0 ℃
5. Temperature Fluctuation: +/- 0.5 ℃
6. Fast heating rate: Technologies 4.0 ℃/min
7. Stable cooling rate: Technologies 1.0 ℃/min
8. Studio material quality: stainless steel
9. Advanced outer box material: cold plate nano paint
10. Excellent thermal insulation material performance: high temperature resistance and high density chlorine-based formic acid vinegar foam insulator material
11. Advanced refrigeration system: air, water-cooled/double-stage Compressor
12. Complete protection devices: no fuse switch, Compressor overload protection switch, refrigerant high and low voltage protection switch, ultra-humidity over-temperature protection switch, fuse, fault warning system
13. Perfect accessories: viewing window, 50mm test hole, PL box light, Shelf, wet and dry ball gauze
14. Controller system optional: Korean or Japanese "OYO" brand
15. High-quality refrigeration system brand: French "Taikang" brand or German "BITZER"
Principle
The low/high temperature test chamber realizes temperature control through the refrigeration system and heating system, and simulates the high temperature and low temperature environment in a closed studio. The equipment adopts two-stage Compressor and air and water-cooled refrigeration mode, and cooperates with high temperature resistance and high density chlorine-based formic acid vinegar foam insulator material to keep warm to ensure temperature uniformity and Stability. The controller system precisely adjusts the temperature change to achieve high temperature, low temperature and constant temperature and heat test.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Steps
1. Connect power supply: 220VAC +/- 10% 50/60Hz or 380VAC +/- 10% 50/60Hz power supply according to equipment requirements
2. Set parameters: Temperature range and time required by the controller system
3. Place the sample: place the parts or materials to be tested in the studio
4. Start-up test: run the equipment for high temperature, low temperature or alternating cycle testing
5. Monitoring process: observe the test status through the viewing window and fault warning system
6. End the test: stop the equipment after reaching the set time and take out the sample
Notice
• Check whether the Power supply voltage meets the equipment requirements before use
• Ensure that protective devices such as no fuse switch, Compressor overload protection switch, etc. work normally
• Regularly check the refrigerant high and low voltage protection switch and ultra-humidity over-temperature protection switch
• Keep the studio clean to avoid foreign objects affecting temperature uniformity
• Pay attention to high temperature and low temperature protection during operation to avoid burns or frostbite
• Regularly change the wet and dry bulb gauze to ensure the accuracy of humidity measurement
• Immediately stop using the equipment when it fails and contact a professional for repair
