Overview

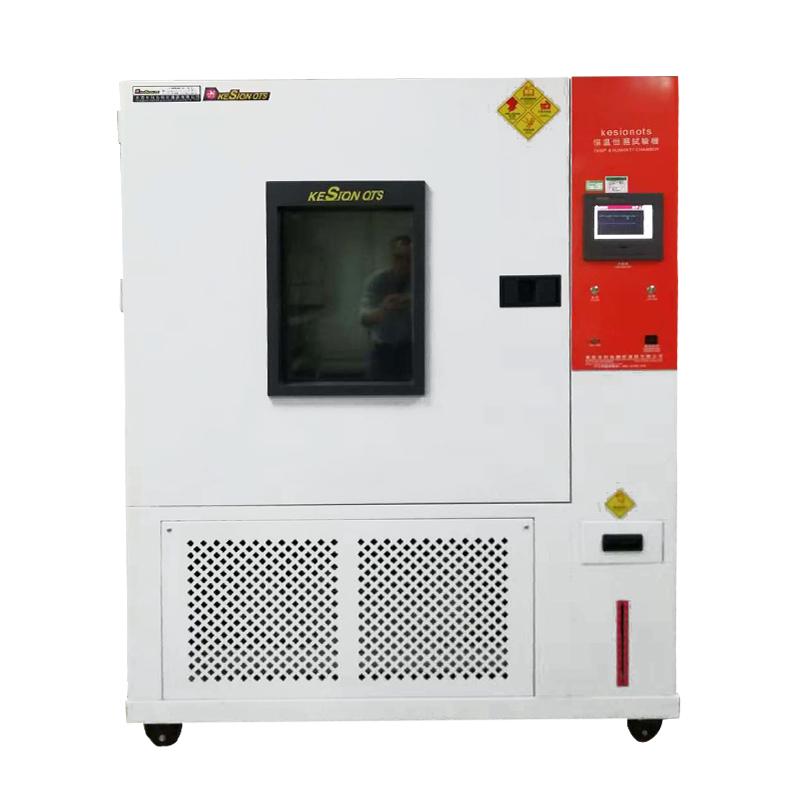

KESIONOTS KS-OTS-HD150LB low/high temperature test chamber is suitable for high temperature and low temperature Reliability test of industrial products, parts and materials of related products such as electronics and electricians, automobiles and motorcycles, aerospace, ship weapons, colleges and universities, R & D institutions, etc. are inspected under the condition of high temperature and low temperature (alternating) cyclic changes, and are used for product design, improvement, identification and inspection, such as aging test.
Features
1. Temperature range: -60~ 150 ℃
2. Large studio volume: 150L
3. High temperature control accuracy: +/- 1.0 ℃
4. Temperature Uniformity: +/- 1.0 ℃
5. Made of stainless steel studio material
6. Equipped with a variety of protection devices: no fuse switch, Compressor overload protection switch, refrigerant high and low voltage protection switch, ultra-humidity over-temperature protection switch, fuse, fault warning system
7. Optional Korean or Japanese "OYO" brand controller system
8. Adopt the French "Taikang" brand or the German "BITZER" refrigeration system
Principle
This machine performs aging tests by promoting the deterioration of sulfur-added rubber, calculating the rate of change of tensile force and elongation before and after heating, and testing at 70 ° C. One day is theoretically equivalent to 6 months of exposure to the atmosphere.
Applications
Electronics and electricians, automobiles and motorcycles, aerospace, ships and weapons, colleges and universities, R & D institutions
Standards
GB10592-89、GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Steps
1. According to GB 2423.1, GB 2423.2 standards for low temperature, high temperature test
2. Conduct a constant temperature test
3. Set temperature parameters through the controller system
4. Observe the test results and record the data
Notice
• Power supply voltage requirements: 1 220VAC +/- 10% 50/60Hz & 3 380VAC +/- 10% 50/60Hz
• Pay attention to the use of accessories such as wet and dry ball gauze
• Regularly check whether the protective device is working properly
• Note that the Studio Temperature Uniformity is controlled within the range of +/- 1.0 ° C
