Overview

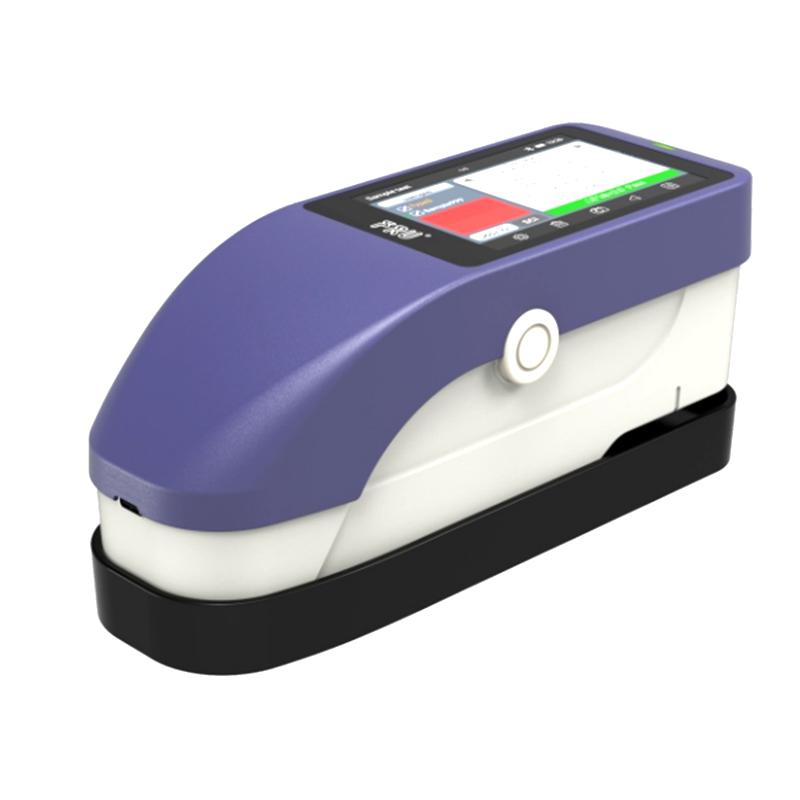

SY3060 Colorimeter is a portable Colorimeter under the IWAVE brand, with stable performance, accurate measurement and powerful functions. The product is widely used in plastic electronics, paints inks, Spinning & weaving clothing printing and dyeing, printing paper products, automobiles, cosmetics and food industries, as well as scientific research institutions and laboratories.
Features
1. Camera viewfinder positioning, accurately adjust positioning anytime, anywhere
2. Large storage space, USB/Bluetooth dual communication mode
3. Dual aperture arbitrary switching, support a variety of sample measurement
4. High Accuracy Spectroscopic Structure, Accurate Measurement Data
5. Simultaneous measurement of SCI and SCE, fast and effective
6. PC auxiliary software supports data processing output
7. Small body and large screen, easy to carry measurement
8. Durable, low power consumption, quality assurance
Principle
The SY3060 Colorimeter uses d/8 diameter 40mm integrating sphere geometry conditions, uses full Light spectrum LED + dual UV lamps as measurement light sources, and uses CMOS sensors to collect the reflected light signals of the samples. The instrument analyzes the Light spectrum data with wavelength interval of 10nm (range 400-700nm) through High Accuracy Spectroscopic Structure, and simultaneously measures SCI (including specular reflection) and SCE (excluding specular reflection) two light-containing methods.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing and dyeing, printing paper products, automobiles, cosmetics, food, scientific research institutions, laboratories
Steps
1. Use the camera to view and locate
2. Select the measurement diameter (φ 8mm/φ 4mm)
3. Start measurement, Automatic calibration of instrument
4. View measurement results
5. Transfer data via USB or Bluetooth
6. Use PC-assisted software for data processing output
Notice
• Make sure the instrument is calibrated before measurement
• Select the appropriate measurement caliber according to the sample characteristics
Keep the measurement environment rays of light stable
• Regular charging to ensure battery performance
• Avoid severe impacts and humid environments
• Use the specified communication interface for data transmission
