Overview

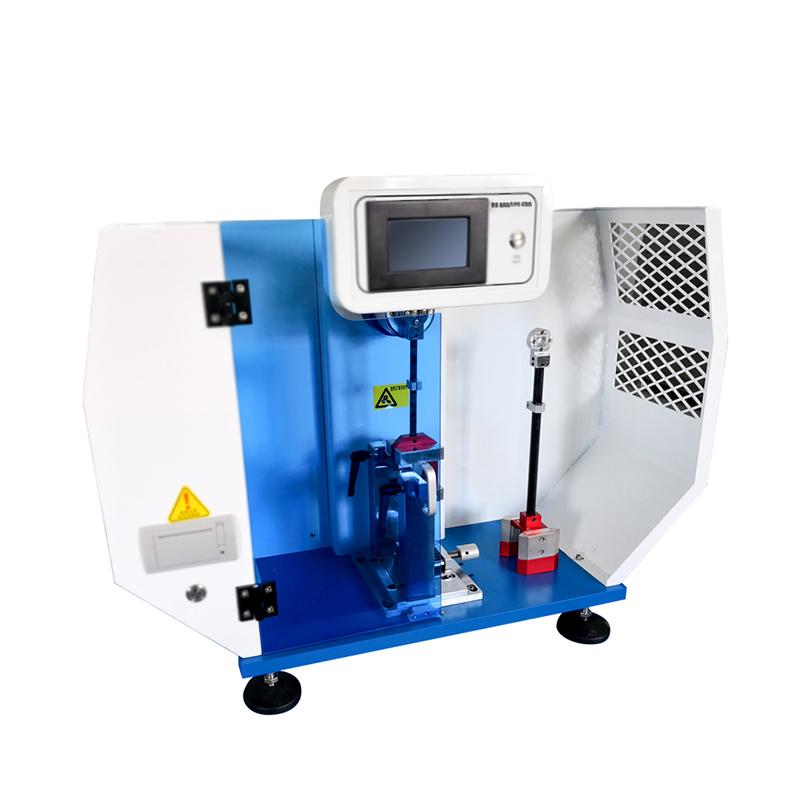

YOUKE YK-3658 (5J & 5.5J) Digital Suspension Simple Combined Impact Tester is a new type of multi-functional cantilever beam and simply supported beam integrated Impact Tester. It can automatically switch the cantilever beam and simply supported beam test methods by simply disassembling the fixture and sample holder. It has the characteristics of convenient use, simple operation and high test accuracy. It is mainly used for the determination of Impact toughness of non-metallic materials such as hard thermoplasticity molding and extrusion materials, hard thermosetting molding materials and fiber-reinforced thermosetting and thermal plasticity composites.
Features
1. Cantilever beam, simply supported beam integrated Impact, simply remove the fixture and sample holder
2. High Accuracy Intelligent Controller, Equipped with LCD Display, Intuitive and Accurate Data Reading
3. Domestic exclusive use of carbon fiber swing rod (patented), improve material rigidity, Impact mass concentration, no vibration impact test, long service life
4. Imported high-resolution digital encoder, high and stable angle test accuracy
5. Impact hammers and imported ball bearings that comply with aerodynamic principles to reduce mechanical friction losses
6. Automatically calculate the final results, and the test data can be stored in 24 groups and averaged
7. Chinese and English operation interfaces can be selected, and the test result units can be selected as J/m, KJ/m2, kg-cm/cm, ft-ib/in, etc
8. Built-in micro-printer to print test data
Principle
The test machine uses a pendulum impact sample, a High Accuracy digital encoder to measure the impact angle, and an intelligent controller automatically calculates the impact strength. The carbon fiber pendulum and aerodynamic impact hammer design ensure that the impact energy is concentrated and the friction loss is small, achieving accurate and stable impact testing.
Applications
Hard thermal plasticity molding materials, hard thermosetting molding materials, fiber-reinforced thermosetting composites, fiber-reinforced thermal plasticity composites, thermal plasticity pipes for fluid transportation
Standards
ISO179—2000、GB/T 21189、GB/T1043—2008、JB/T8762—1998、GB/T 18743-2002、ISO180—2000、GB/T1843—2008、JB/T8761—1998、ASTM D256-2010
Steps
1. Select the cantilever beam or simply supported beam mode according to the test requirements, and remove the corresponding fixture and sample holder
2. Install the specimen and fix it
3. Set test parameters, select units and Chinese and English interfaces
4. Start Test, Pendulum Impact Sample
5. The intelligent controller automatically calculates and displays the results
6. Save data or print via built-in printer
Notice
Make sure the power supply is AC220V +/- 10%, 50HZ
* Check whether the fixture and fixing frame are firmly installed before operation
Regular maintenance of Impact hammers and bearings to reduce friction losses
* Avoid use in vibration environment to ensure test accuracy
Clean the equipment in time after use and keep it properly
