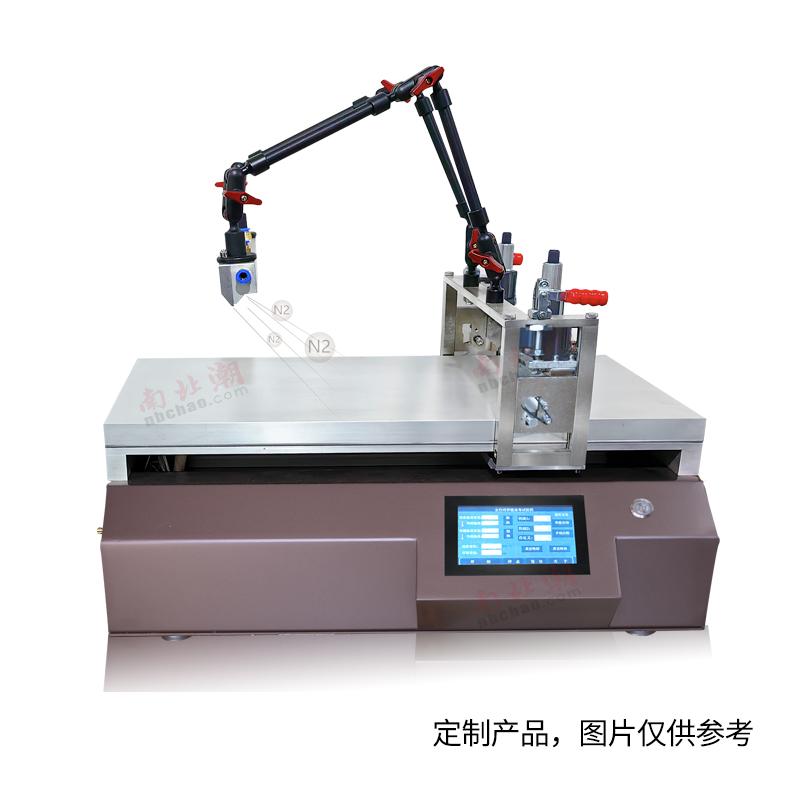

China TBJ-X3-ABO2 Automatic Film Applicator for Perovskite Film Applicator Heating vacuum adsorption

Name: China TBJ-X3-ABO2 Automatic Film Applicator for Perovskite Film Applicator Heating vacuum adsorption
Brand: zy
SKU: NB042172
Price: 5560.0 USD
Availability: PreOrder

$ 5560.00Ex works

Imported High Accuracy Mayer Rods, Spreader accuracy of +/- 0.003mm, speed range of 2~ 180mm/s, with heating and vacuum adsorption functions, support a variety of Spreader methods, improve film conformity and repRoducibility.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB042172

Service :The delivery and service By NBCLab.Com

Overview

The perovskite-specific automatic Film Applicator is equipped with imported High Accuracy Mayer Rods, with heating and vacuum adsorption functions, equipped with air knife and air knife bracket, and uses nitrogen as a gas source to accelerate the drying of perovskite solution. The device solves the problem of inconsistent coatings due to factors such as Spreader speed and pressure in artificial films, and can Spreader accurate wet-film on different substrates, significantly improving film reproducibility.

Features

1. Configure Imported High Accuracy Mayer Rods 2. With heating and vacuum adsorption function 3. Equipped with air knife and air knife bracket, accelerated drying with nitrogen 4. Spreader speed range 2~ 180mm/s (< 5mm/s can be customized) 5. Spreader area 400 * 300mm 6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃ 7. Support Wire Bar, Scraper, Air Knife Spreader 8. Speed control with infinitely variable speed 9. Spreader accuracy up to 0.001mm

Principle

Automatic Film Applicator uses Mayer Rods to homogenize the Spreader perovskite solution on the substrate by precisely controlling parameters such as Spreader speed, pressure and temperature. Vacuum adsorption functions fix the substrate, the heating system controls the temperature of the Spreader environment, and the air knife system uses nitrogen to accelerate the solution drying to ensure Coating thickness and uniformity are consistent.

Applications

Perovskite Material Spreader, Scientific Research Experiment, Material Preparative

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Blade Coating
Coating size
300*400mm
Effective application width
300mm
Effective application length
400mm
Coating table material
aluminum alloy
Substrate clamping method
Vacuum chuck
coating speed
2~180mm/s
Speed Control mode
Infinitely variable speed
Spreader thickness range
0~10mm
Blade Coating Thickness Range
0~10mm
Blade Coating accuracy
±3μm
Drawdown blade fixed form
Liftable
Bar Specifications
Accuracy 0.001mm
meyer rod coating thickness range
Determined by bar model
meyer rod coating accuracy
0.001mm
Vacuum chuck area
300*400mm
Vacuum aperture diameter
Φ1.2mm
Vacuum hole pitch
20*20mm
Vacuum pump size
380*180*280mm
Temperature range
RT+~180℃
Temperature control accuracy
±3℃
Drying method
Air knife drying
Air knife
Yes.
Air knife air source
nitrogen
display screen
digital display
Air knife accuracy
±0.002mm
Host size
630*410*520mm
Host weight
Net weight 65KG
Host power supply
220V 50Hz
standard accessories
Coater host, vacuum pump, air knife, air knife bracket
Accessories
Mayer Rods, custom size
optional feature
< 5Mm/s coating speed can be customized
