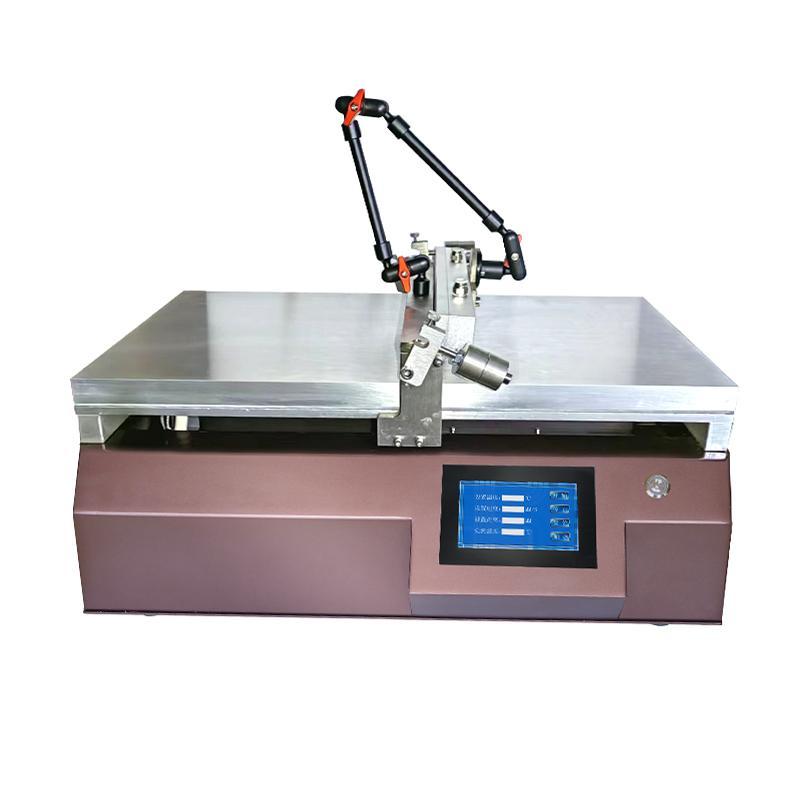

China TBJ-B4-ABO Automatic Film Applicator Perovskite Experimental Film Applicator heating air knife Double Spreader

Name: China TBJ-B4-ABO Automatic Film Applicator Perovskite Experimental Film Applicator heating air knife Double Spreader
Brand: zy
SKU: NB045805
Price: 3785.0 USD
Availability: PreOrder

$ 3785.00Ex works

Adopt drawdown Bar & Blade double coating method, Spreader accuracy up to +/- 0.003mm, heating Temperature range RT +~ 180 ℃, equipped with air knife function, ensure Spreader uniform and stable.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB045805

Service :The delivery and service By NBCLab.Com

Overview

TBJ-B4-ABO Perovskite Experimental Film Applicator is an Automatic Film Applicator with drawdown Bar & Blade dual coating method, with heating and air knife function, equipped with air knife bracket, film size is 300 * 400mm, high Smoothness aluminum alloy baseplate. The equipment is all imported accessories, and the uniformity and smoothness of Spreader coating are guaranteed by controlling the speed and stable pressure.

Features

1. Using imported accessories, the price is good and cheap 2.Double drawdown Bar & Blade coating method 3. With heating and air knife function 4. Equipped with air knife bracket 5. Smoothness aluminum alloy baseplate 6. Infinitely variable speed control 7. Multiple Optional Accessories and Customizable Features

Principle

By controlling the speed and stable pressure of Spreader to ensure the effect of Spreader gluing, the coating method of bar + drawdown blade + air knife is adopted to ensure the uniformity and stability of Spreader gluing.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Steps

1. Spreader substrate 2. Set Spreader parameters (speed, thickness, etc.) 3. Install the corresponding Spreader tool (bar or drawdown blade) 4. Spreader the device 5. Clean the device after finishing the Spreader

coating method
Drawdown Bar & Blade coating method
Coating size
300*400mm
Effective application width
300mm
Coating table material
aluminum alloy
Coating table flatness
High Smoothness
coating speed
2~180mm/s
Speed Control mode
Infinitely variable speed
Spreader thickness range
0.2~10mm
Drawdown blade material
stainless steel
Drawdown blade size
400mm
Blade Coating Thickness Range
0.2~10mm
Blade Coating accuracy
±3μm
Drawdown blade reading mode
digital display
Drawdown blade fixed form
Liftable
Bar Specifications
Standard 1 inlet bar, accuracy 1μm
Bar application width
300mm
meyer rod coating accuracy
±0.001mm
Temperature range
RT+~180℃
Temperature control accuracy
±3℃
Drying method
Air knife
Air knife
Equipped with air knife bracket
display screen
digital display
Air knife accuracy
±0.002mm
Host size
626*410*520mm
Host weight
65KG
Host power supply
220V 50Hz 1700W
total power consumption
1700W
standard accessories
1 imported bar
Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight, application width control baffle
optional feature
Jet system device, UV solid inclusion device, automatic inking system
