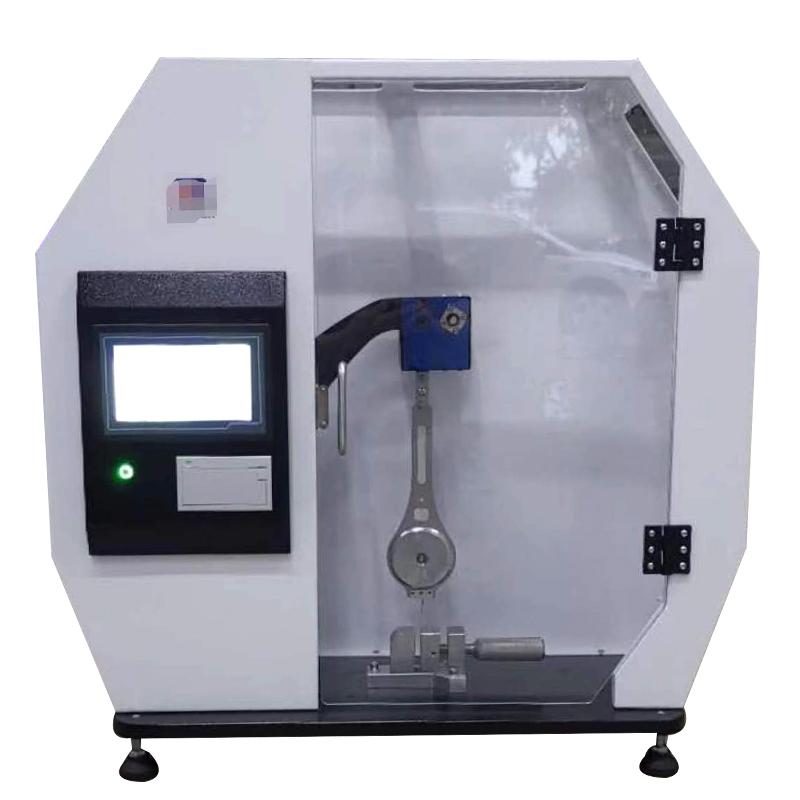

SHUCHANG SC-JZL Simply Supported Beam Impact Tester Hard Plastic Non-metallic Material Testing Instrument

Name: SHUCHANG SC-JZL Simply Supported Beam Impact Tester Hard Plastic Non-metallic Material Testing Instrument
Brand: ShuChang
SKU: NB042298
Price: 1124.0 USD
Availability: InStock

$ 1124.00Ex works

With an impact speed of 2.9m/s or 3.8m/s, it supports a variety of sample sizes, uses semi-automatic control to improve operation efficiency, and can display information in real time and print out the results.

Model

SC-JZL

Get Quote

Category : Film Impact Tester

Brand : ShuChang

SKU : NB042298

Service :The delivery and service By NBCLab.Com

Overview

Impact Tester is an instrument for testing the impact performance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulation materials under dynamic load. It is a testing instrument required by Non-metallic material manufacturers and Quality control departments. It is also an indispensable testing instrument for R & D institutions to conduct New material research. Impact Tester can print out test results and other functions.

Features

1. This machine adopts semi-automatic control, which is easy to operate and has high work efficiency. 2. The dedicated LCD screen equipped with this machine can display instant information. 3. Printable output.

Principle

The data does not mention the working principle.

Applications

The information does not mention application fields.

Standards

ISO 180-2000 "Determination of Impact Strength of Plastic-Hard Material Cantilever Beams", GB/T 1843-2008 "Hard Plastic Cantilever Beams", JB/T 8761-1998 "Plastic Cantilever Beams" Impact Tester ", ASTM D256-2010" Test Method for Determination of Impact Strength of Plastic IZOD Pendulum "

Steps

The information does not mention the operation steps.

Notice

The information does not mention any precautions.

Impact velocity
2.9M/s or 3.8m/s
Distance from the center of the pendulum axis to the center of the specimen
221mm、380mm
Blade angle
30°
Blade fillet radius
R=2mm±0.5mm
Support fillet radius
R=1mm
Support front angle
without
Support back angle
without
blade rake angle
5°
blade back angle
10°
bearing span
without
Impact energy
Simply Supported Beam 5J, 25J or Maximum Impact Energy Specified by User
Pendulum lift angle
150°
power supply
AC 220V 50Hz
Dimension
360*240*680mm
Net weight
About 100kg
Specimen Type and Size
Type 1 sample: 80 * 10 * 4mm ³; Type 2 sample: 63.5 * 12.7 * 6.4mm ³; Type 3 sample: 63.5 * 12.7 * 3.2mm ³
Impact energy of simply supported beam
0.5、1J、2J、≥4J
Maximum allowable friction loss
4.0J、2.0J、1.0J、0.5J
Pendulum moment
1.47372N·m、2.9474N·m
Room temperature control Range
10℃~35℃
relative humidity
≤80%
