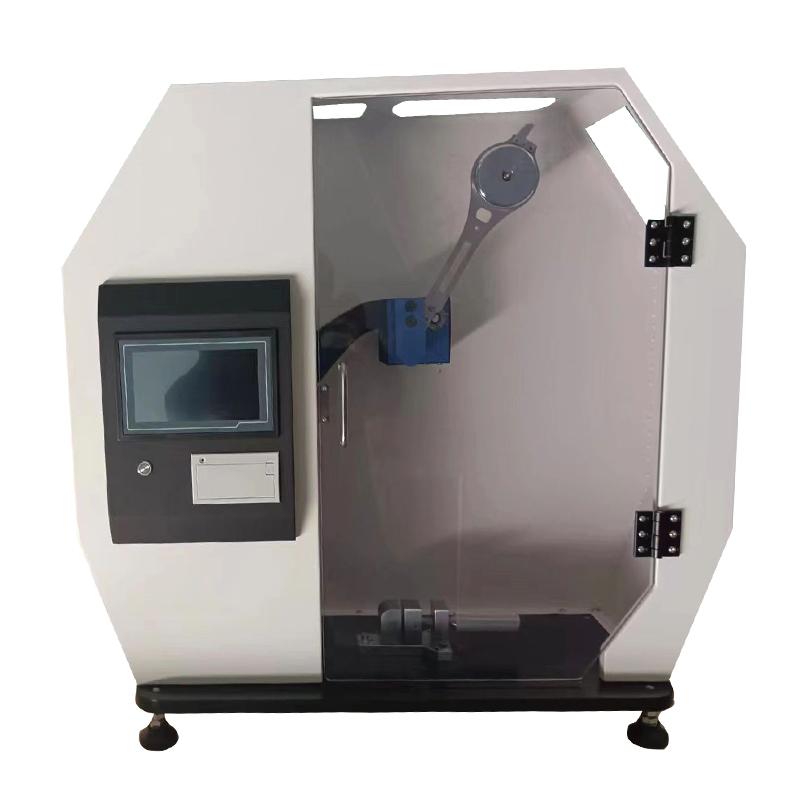

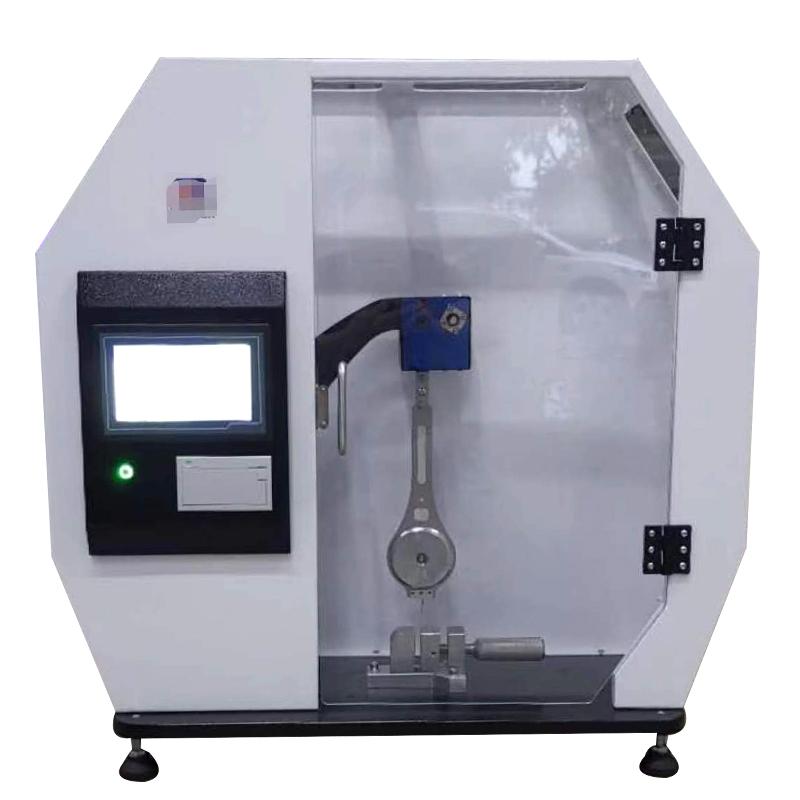

SHUCHANG SC-XJZH Impact Tester Cantilever Beam Impact Energy 2.75J 5.5J

Name: SHUCHANG SC-XJZH Impact Tester Cantilever Beam Impact Energy 2.75J 5.5J
Brand: ShuChang
SKU: NB042299
Price: 1507.0 USD
Availability: InStock

$ 1507.00Ex works

Adopting semi-automatic control, the operation is simple and efficient; the impact speed is 3.5m/s, and the impact energy of the cantilever beam is 2.75J and 5.5J; the dedicated LCD screen displays data in real time, and the test results can be printed out.

Model

SC-XJZH

Get Quote

Category : Film Impact Tester

Brand : ShuChang

SKU : NB042299

Service :The delivery and service By NBCLab.Com

Overview

This series of digital cantilever Impact Tester is an instrument for testing the impact performance of non-metallic materials such as hard plastics, nylon, hard rubber, electrical insulation materials under dynamic load. It is a testing instrument required by Non-metallic material manufacturers and Quality control departments. It is also an indispensable testing instrument for R & D institutions to conduct New material research.

Features

1. Adopt semi-automatic control for easy operation and high work efficiency 2. Equipped with a dedicated LCD screen to display instant information 3. Printable output

Principle

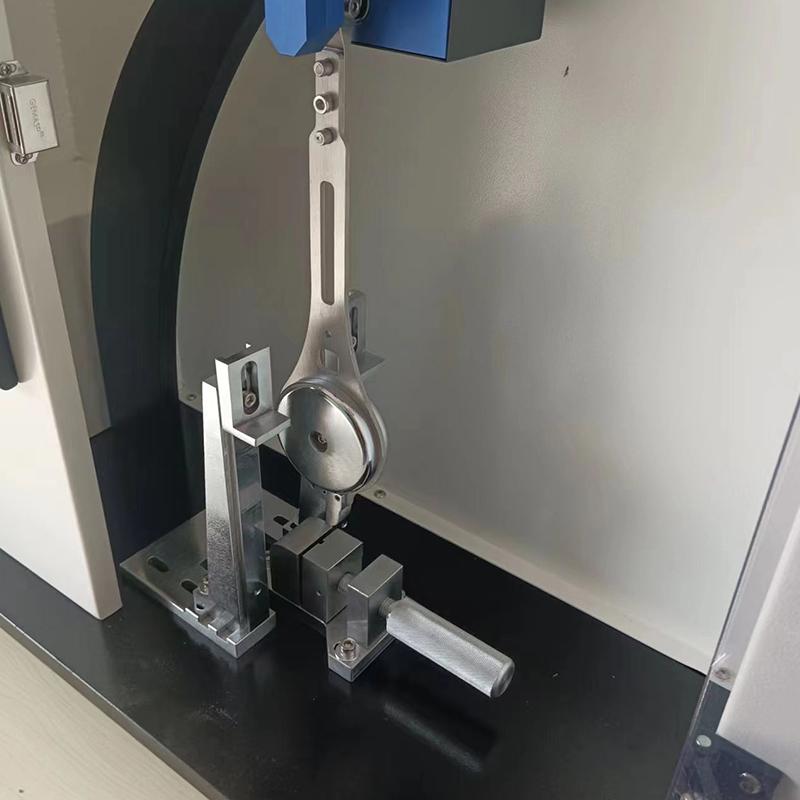

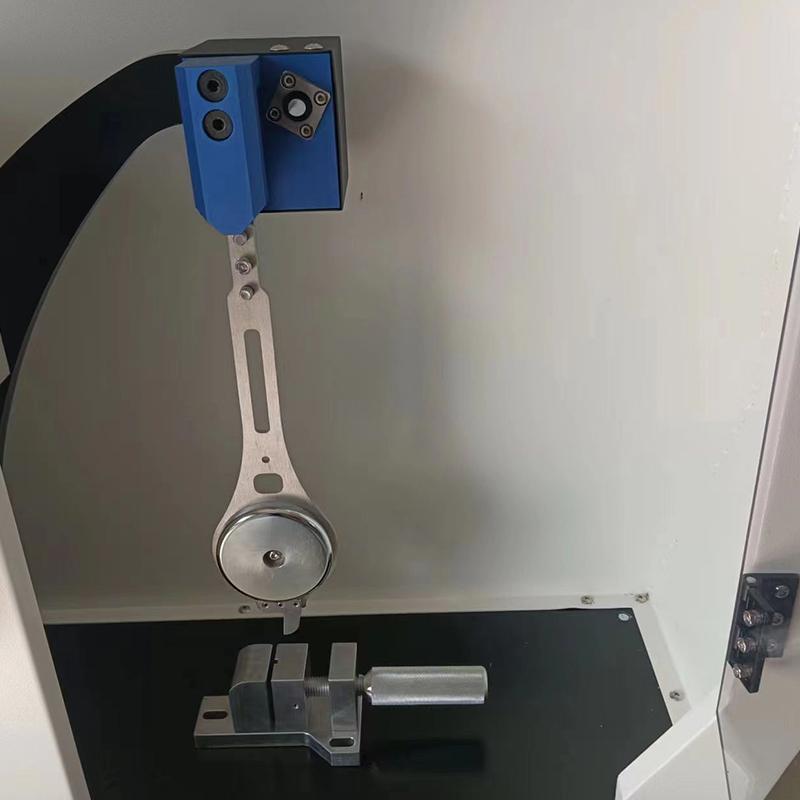

Impact samples of this product through the pendulum, the measurement of Non-metallic materials in dynamic load resistance Impact performance, using digital display technology to display real-time test information.

Standards

ISO 180-2000 "Determination of Impact Strength of Plastic-Hard Material Cantilever Beams", GB/T 1843-2008 "Hard Plastic Cantilever Beams", JB/T 8761-1998 "Plastic Cantilever Beams" Impact Tester ", ASTM D256-2010" Test Method for Determination of Impact Strength of Plastic IZOD Pendulum "

Impact velocity
3.5 m/s
Distance from the center of the pendulum axis to the center of the specimen
327mm
Blade angle
750
Blade fillet radius
0.8mm
Support fillet radius
without
Support front angle
without
Support back angle
without
blade rake angle
50
blade back angle
100
bearing span
without
Impact energy
Cantilever 2.75J, 5.5J or Maximum Impact Energy as specified by the user
Pendulum lift angle
150°
power supply
AC 220V 50Hz
Dimension
360*240*680mm
Net weight
Approx. 80 kg
Specimen Type and Size
Type 1 sample: 80 * 10 * 4mm ³; Type 2 sample: 63.5 * 12.7 * 6.4mm ³; Type 3 sample: 63.5 * 12.7 * 3.2mm ³
cantilever beam
2.75J、5.5J
Maximum allowable friction loss
0.06J、0.12J
Pendulum moment
1.47372N·m、2.9474N·m
