$ 17762.00Ex works
Two-box mobile structure, air pressure driven test object Impact, Thermal Shock mechanism moving time within 10 seconds, temperature recovery time within 5 minutes, in line with MIL, IEC and other specifications, with paperless recording and real-time Linear dispersion display function.
Category : Thermal Shock Test Chamber
Brand : Apkjgroup
SKU : NB042380
Service :The delivery and service By NBCLab.Com

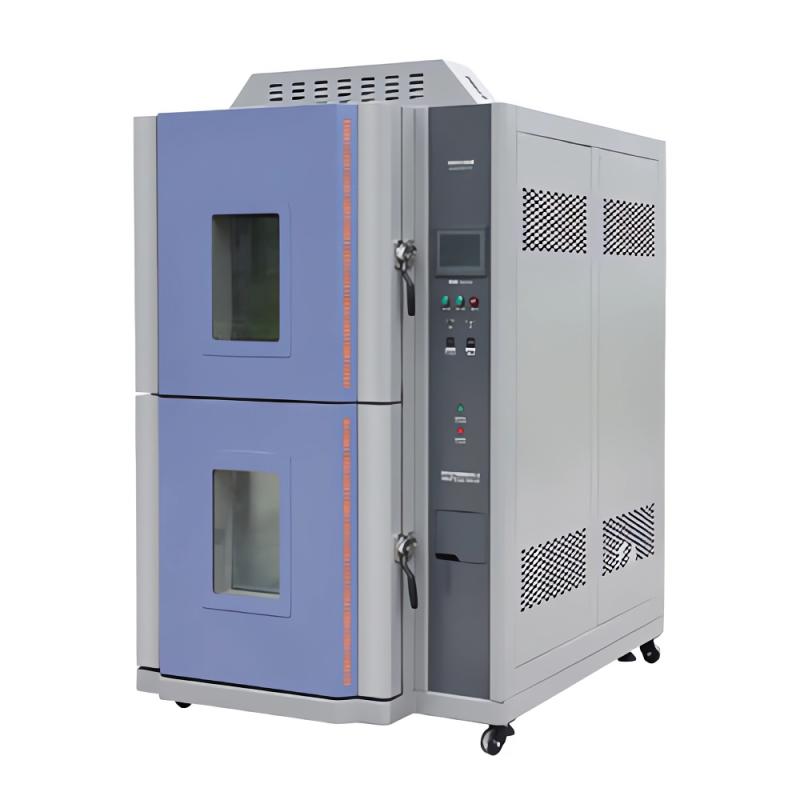

The APKJ 2AP-CJ-80B Thermal Shock Test Chamber is a device used to test the resistance performance of materials in extremely high and very low temperature continuous environments. It uses a two-box mobile design, divided into high temperature and low temperature zones, and dynamically moves the test product through the air pressure-driven basket to achieve rapid temperature Impact testing.
1. Adopt self-developed 7-inch super-large touch AP-950 programmable temperature controller, full touch screen operation, support arbitrary setting of high and low temperature Impact temperature points. 2. Two-box Mobile Thermal Shock Design, Safe Air Pressure Drives Test Objects Up and Down Impact. 3. Thermal Shock mechanism moving time within 10 seconds, temperature recovery time within 5 minutes, in line with a variety of international standards. 4. Adopt HFC environmentally friendly refrigerant and binary ultra-low temperature freezing system for fast cooling and high efficiency. 5. Paperless recording function, real-time display of temperature impact test changes Linear dispersion and recording. 6. The box insulation material is made of rigid polyurethane foam, which has the advantages of energy saving, shock resistance, ultra-low temperature thermal conductivity, insulation and sound insulation, and waterproof.
The equipment is divided into two parts: high temperature zone and low temperature zone, and the test product is placed in the basket. The test product is dynamically moved between the high temperature zone and the low temperature zone by pneumatic driving the basket to realize the continuous impact of instantaneous extreme high temperature and extreme low temperature, and to test the chemical or physical changes caused by the thermal expansion and contraction of the material.
Electronics components, plastics, automation parts, communication components, auto parts, metals, chemical materials, plastics, defense industry, aerospace, military industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic, polymer materials
GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.22-2012、GJB150.5-86、GJB360.7-87、GJB367.2-87、QC/T17-92、EIA364-32、IEC68-2-14
1. Place the product in the hanging basket test area. 2. Set the required high and low temperature Impact temperature point through the touch screen controller. 3. Start the equipment, and the air pressure drives the basket to Impact up and down between the high temperature zone and the low temperature zone. 4. Monitor real-time temperature Linear dispersion and record test data. 5. After the test is completed, the device automatically stops or performs subsequent operations according to the program settings.
The installation site needs to be equipped with an independent AC380V power supply to meet the requirements of three-phase four-wire + protective ground wire, voltage range AC (380 +/- 10) V, frequency (50 +/- 0.5) Hz, and protective ground resistance less than 4Ω. ○ The equipment does not include ventilated pipes, power leakage switches, air Compressors, water sources and other external environment items, which need to be configured by the user. ○ When the equipment is not working, the environment temperature should be maintained at 0 ° C~ + 45 ° C; when the environment temperature is lower than 0 ° C, the residual water needs to be discharged to prevent the pipeline from freezing and damage. ○ Before use, ensure that the air source pressure is between 5 and 7 kg/cm ², the diameter of the connecting pipe is 8 mm, and the air source flow rate is 0.1 m ³/min. Please note that the maximum power of the equipment is about 12.0KW and the maximum current is 18A to avoid overload operation.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
