Overview

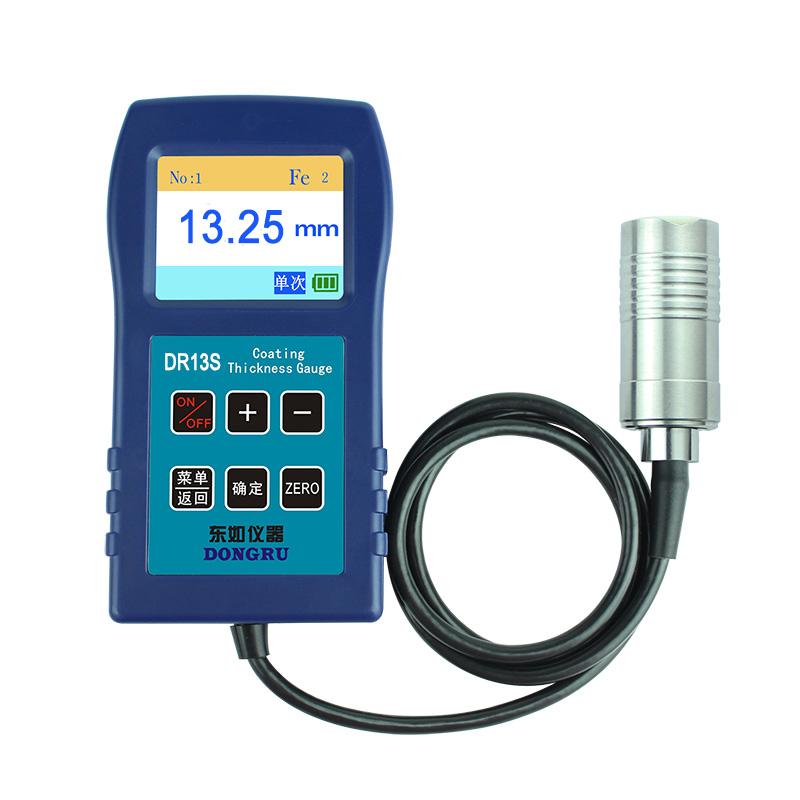

DR13S Coating thickness gauge is a large range Coating thickness gauge launched by DONGRU brand, which is mainly used for the measurement of magnetic metal surface coating platings Film thickness professional nondestructive testing instrument. It adopts the principle of magnetic thickness measurement, which can quickly and nondestructive measurement of magnetic metal substrate (such as steel, iron) film thickness of nonmagnetic coating, including galvanized, chromium, enamel, rubber, powder, paints, Electrophoresis, enamel, spray, Coating, anti-corrosion fire-proof coatings coating, etc., the range can reach 13mm, widely used in painting industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction industry, commodity inspection and other testing fields.
Features
1. Large range: 100-13000 μm (0.1-13 mm)
2. Simple operation, fast test speed, Sensitivity, Measurement accuracy
3. Adopt alloy probe, wear-resistant and pressure-resistant, durable and accurate
4. With two measurement methods: continuous measurement and single measurement
5. With four statistical functions: MAX Maximum (MAX), MIN Minimum (MIN), Average (MEA), measurement number (No)
6. Large-capacity storage, which can be divided into 10 groups of 200 each, capable of storing a total of 2,000 data
7. Store data, view and delete function
8. Calibration methods: zero calibrated, two point calibrated, multi point calibrated
9. Upper and lower limit alarm function (can be set in single Measurement mode)
10. The operation process is marked with a beep sound (in single Measurement mode)
11. Automatic identification of ferrous and non-ferrous substrates
12. Metric conversion μm/Mil
13. Sunshine mode (used under strong light)
14. Chinese and English bilingual version
15.2.3 inch large color screen large font display
16. Manual/automatic shutdown function
17. Bluetooth synchronous data transmission function (customized)
Principle
DR13S Coating thickness gauge uses the principle of magnetic thickness measurement to quickly and nondestructive measurement of film thickness by detecting the change of magnetic Induction between magnetic metal substrates (such as steel and iron) and nonmagnetic coatings. The instrument automatically identifies ferrous and non-ferrous substrates to ensure measurement accuracy and Reliability.
Applications
Painting industry, manufacturing, petroleum, chemical industry, shipbuilding, fire engineering, construction, commodity inspection
