Overview

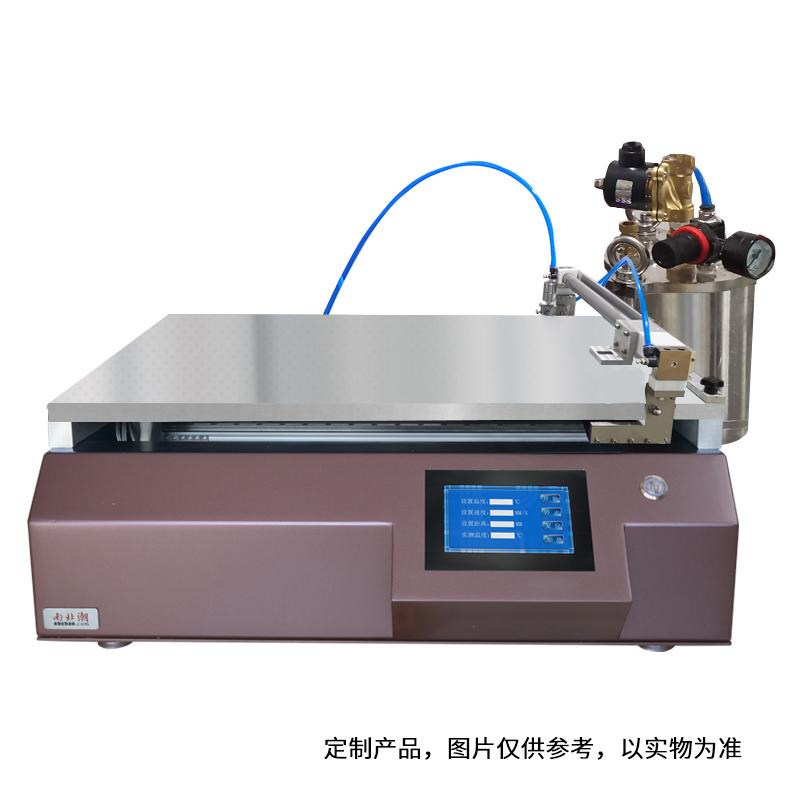

TBJ-X3-DJ8 automatic spraying and coating machine is an experimental small Coater with automatic feeding, with automatic lame plating function, and the lame plating atomization effect can be equipped according to customer needs. The equipment supports heating and vacuum adsorption functions. Coating size is 300 * 400mm and heating temperature can reach 200 ° C. It is designed to improve the conformity and reproducibility of the film through automatic Spreader, and solve the difference problem caused by manual Spreader.
Features
1. Automatic lame plating function, atomization effect can be customized
2. Support heating function, Temperature range RT +~ 200 ℃, uniformity +/- 3 ℃
3. Vacuum adsorption system, adsorption size 400 * 350mm, can be customized
4. Spreader speed 5~ 180mm/s, stepless variable speed control, digital display
5. Automatic feeding system, the volume of the feeding barrel is 1L, and the material is 304 stainless steel
6. Spreader table material is aluminum alloy, optional a variety of accessories to enhance the function
7. Feeding system air source 0.6Mpa, support reciprocating linear motion
8. Spreader way is reciprocating lame plating to improve Spreader uniformity
Principle
The equipment realizes accurate film through the automatic Spreader system, adopts the left and right reciprocating lame plating method, and the Spreader speed can be adjusted infinitely, with a range of 5~ 180mm/s. The automatic feeding system uses the principle of outflow of air source pressure to control the amount of material by adjusting the air pressure and the running speed of the discharge port, and realizes reciprocating linear motion feeding. The vacuum adsorption function fixes the substrate through adsorption holes with a aperture of φ 1.2mm and a hole spacing of 20 * 20mm to ensure the stability of the substrate during the Spreader process.
Applications
Spreaders, coating prepatives, material testing
Steps
1. Connect the air source and power supply to ensure that the air source pressure is 0.6Mpa and the voltage is 220V, 50Hz.
2. Install the feeding drum and check the configuration of safety valve, pressure regulating valve, etc
3. Set the Spreader speed and heating temperature, and adjust it through the digital display interface
4. Place the substrate on the Spreader table to enable vacuum adsorption fixation
5. Start the automatic feeding system, adjust the air pressure and discharge speed to control the discharge volume
6. Start the Spreader process, the device automatically performs left and right reciprocating lame plating
7. After the Spreader is completed, turn off the equipment and clean it for maintenance
Notice
• The maximum pressure that the feeding drum can withstand is 8Mpa, and this limit must not be exceeded during use
• Ensure that the air source and power supply are connected correctly to avoid equipment damage
• Spreader before checking whether the vacuum adsorption system is working properly
• Pay attention to Temperature Uniformity when heating to avoid local overheating
• Optional accessories such as leakage tanks, substrate fixing fixtures, etc. need to be installed and used correctly
• Regularly maintain the feeding system and Spreader table to ensure long-term stable operation
